Notify

Overview

Notify pulls compound actions into the chat spotlight, sending messages to specific users with embedded actions, shown as buttons, that can perform various actions when clicked.

Action Types

Type	Function
Content Action	Deliver an inline message. Ideal for links or summaries
System Action	Triggers an action or compound action with input arguments
Conversation Action	Starts a conversation process. Inputs args must be declared as slots in the process.

❗️
IMPORTANT NOTE:
Requirements for Calling a Conversation Action
To ensure your action is triggered correctly, please note the following:

Use the Conversational Process Name: When calling the action, specify the name of the conversational process itself, not the name of the plugin.

Publish the Process as a Plugin: The conversational process will not be triggered by the notify key unless it has also been published as a plugin.

Conversational Action input_args: These must be declared as slots in the conversational process in order to reference the data passed in as input args.

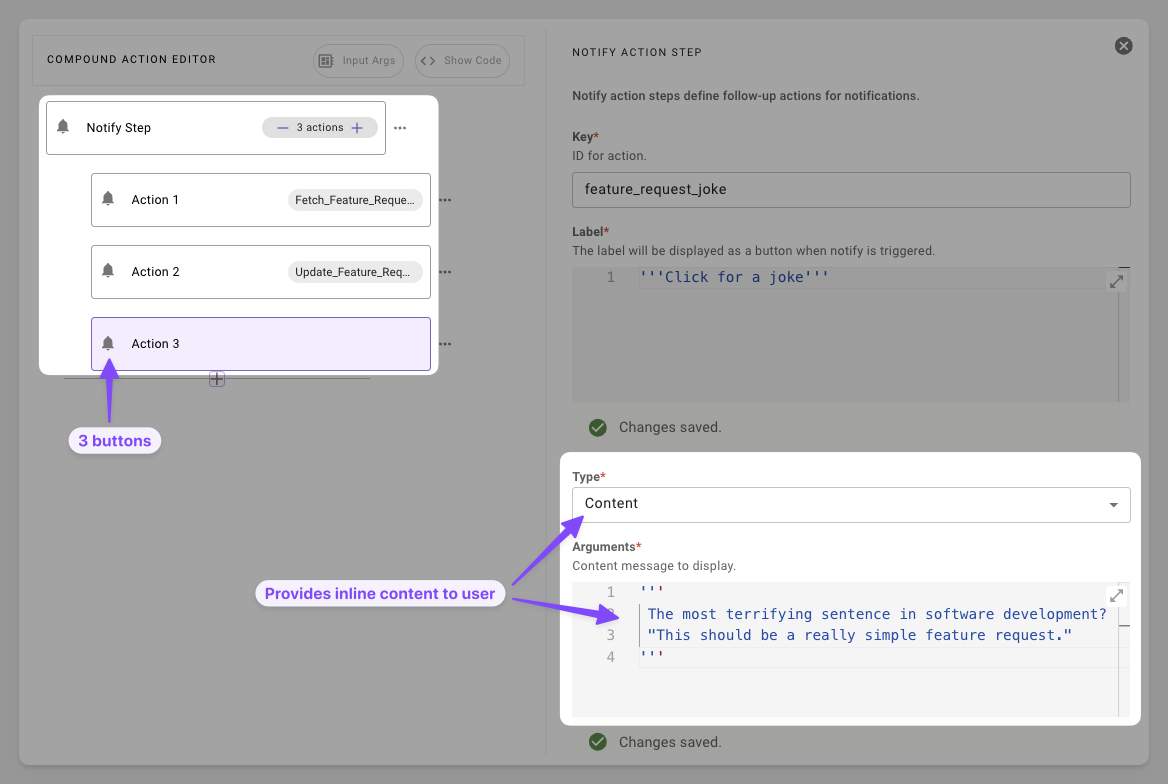

Low-Code Editor

Add a Notify step, define the recipient, the content of the message they are receiving, and what actions they'll be provided with.

Prepare Essentials: Set the notification's recipient and informational message.

Add Actionable Task: Add a button that can trigger an HTTP, compound, or script action.

Start a Conversation: Add a button that invokes a conversational flow with the user.

Add More Content: Provide a button that provides inline content that doesn't require fetching or starting a conversation.

Syntax Reference

Schema

notify:  # Delivers message + buttons to user
  output_key: RESULT_VAR*  # str: Stores interaction results
  recipient_id: USER_ID*   # str: e.g., data.user.id
  message: MSG_EXPR*       # DSL str or RENDER() template
  resources:               # Optional list[dict] only available in pro-code
    - name: RESOUCE_NAME   # str: no dsl evaluation just type out string
      datatype: DATA_TYPE  # datatype: no dsl evaluation just type out string
      value: VAL           # DSL of datatype declared above
  actions:                 # Optional list[dict]
    - key: ACTION_KEY      # Unique str ID
      label: BUTTON_TEXT   # Display DSL str
      # ONE of:
      content_action:
        message: CONTENT_MSG
      system_action:
        action_name: ACTION_NAME
        input_args:
					key: VAL
      conversation_action:
        conversation_process_name: PROCESS_NAME  # Published plugin
        input_args:
					slot_name: VAL   # Match process slots

Fields

Field	Type	Mandatory	Description
`output_key`	string	Yes	Capture's button outcome. Currently returns NULL
`recipient_id`	string	Yes	ID of the target user
`message`	string	Yes	DSL expression field
`actions`	list[dict]	No	Buttons displayed to user
`resources`	list[dict]	no	Pass additional context to the reasoning engine

Resources Schema

Field	Type	Mandatory	Description
`name`	string	Yes	Name of the resource
`datatype`	string	Yes	Datatype of value; options here
`value`	any	Yes	DSL expression field: Value of data to pass as context

Action Types

Field	Keys	Use Case
`content_action`	`message`	Quick info drops.
`system_action`	`action_name`, `input_args`	Invoke actions
`conversation_action`	`conversation_process_name`, `input_args`	Start conversation processes

Resources

Resources are an optional field that can be used in the pro-code syntax. These are used for passing additional data as context for the LLM. These can be used situationally for giving the llm additional data to reference when using a follow up action such as passing a string to the LLM for SDA reasoning.

"instructions": "Analyze the data for the top commented on tickets"

Example 1: Enforcing specific analysis on an action button click

# input args: data.tickets
notify:
  output_key: user_choice
  recipient_id: data.target_user.id
  message:
    RENDER():
      template: "Click the button below for insights on the top commented tickets"
      args:
				id: data.ticket.id
  resources:
     - name: instructions
       datatype: string
       value: '"Analyze the data for the top commented on tickets"'
  actions:
    - key: view
      label: "'View Tickets'"
      system_action:
        action_name: retrieve_all_tickets
        input_args:
          support_tickets: data.tickets

Practical Examples

Example 1: Simple Ticket Alert

Notify assignee with a link

notify:
  output_key: alert_sent
  recipient_id: data.target_user.id
  message:
    RENDER():
      template: "Hello {{name}}, [<b>T-{{id}}</b>]({{link}}) assigned to you. Follow runbook."
      args:
        name: data.target_user.first_name
        id: data.ticket.display_id
				link: data.ticket.url

Expectation: User will receive a simple notification message with the ID of the ticket they were assigned

Example 2: Multi-Option Response

Offer multiple options to the user

# input args: data.ticket
notify:
  output_key: user_choice
  recipient_id: data.target_user.id
  message:
    RENDER():
      template: "Ticket {{id}} assigned—act now."
      args:
        id: data.ticket.id
  actions:
    - key: view
      label: "'View Ticket'"
      content_action:
        message:
          RENDER():
            template: "View ticket {{id}}"
            args:
              id: data.ticket.id
    - key: convert
      label: "'Convert to Bug'"
      system_action:
        action_name: convert_support_issue_to_known_bug
        input_args:
          support_ticket: data.ticket

Expectation: User will receive a notification about a ticket that was assigned to them. They will be provided two buttons, one to look at the ticket and one to convert the ticket.

Example 3: Handoff to Conversation

Alert the user and collection more information

# input args: data.ticket
notify:
  output_key: handoff_result
  recipient_id: data.target_user.id
  message:
    RENDER():
      template: "[{{id}}]({{url}}) assigned—need details?"
      args:
        id: data.ticket.display_id,
        url: $CONCAT(["https://notion.so/", data.ticket.sys_id], "")
  actions:
    - key: send_back
      label: "'Send Back'"
      conversation_action:
        conversation_process_name: collect_reason_for_send_back_and_send_case_back_to_case_owner
        input_args:
          support_ticket: data.ticket

Expectation: User receives the notification and are prompted to start a conversational process to send back the ticket for more information.
