ServiceNow Access Requirements

Suggest Edits

The Moveworks bot will directly perform actions in ServiceNow to create, update, and query information about tickets, catalog items, and knowledge base articles.

Prerequisites

📘
Note

Make sure you have the admin access since it’s necessary for creating a Service Account and an OAuth client application

Install Postman

Actions taken in your ServiceNow instance (ITIL and Workflow)

The Moveworks service interacts with your ServiceNow platform so that the bot can:

monitor tickets for autonomous resolution;
reach out to an employee when a ServiceNow ticket needs the employee's attention;
create tickets to log issues the bot has resolved autonomously;
create tickets for issues that require an agent's attention;
triage incoming tickets;
load ServiceNow Catalog Items and knowledge base articles so that the bot can serve them to employees; and
read the ServiceNow user table so that the bot can log and assign issues appropriately.

Service account in Production Instance

To perform the actions listed above, Moveworks needs one account for the bot on your ServiceNow Production instance.

What is this account used for

A dedicated service account in ServiceNow allows the Moveworks service to read and update tickets, and read users, Catalog Items, and KB articles. Create a service account dedicated to Moveworks and share the credentials of this account with your Moveworks Customer Success Engineer. This account must have the following permissions and settings.

How to create a Service Account

Step 1: Create a Service Account

Go to your ServiceNow instance; the URL of the instance should look like https://dev{{instance_name}}.service-now.com
Click on ‘All’, Search for ‘Organization’ in the search bar, and then Click on ‘Users’
Now, in the user table view, Click on the ‘New’ button located at the top right side of navigation bar

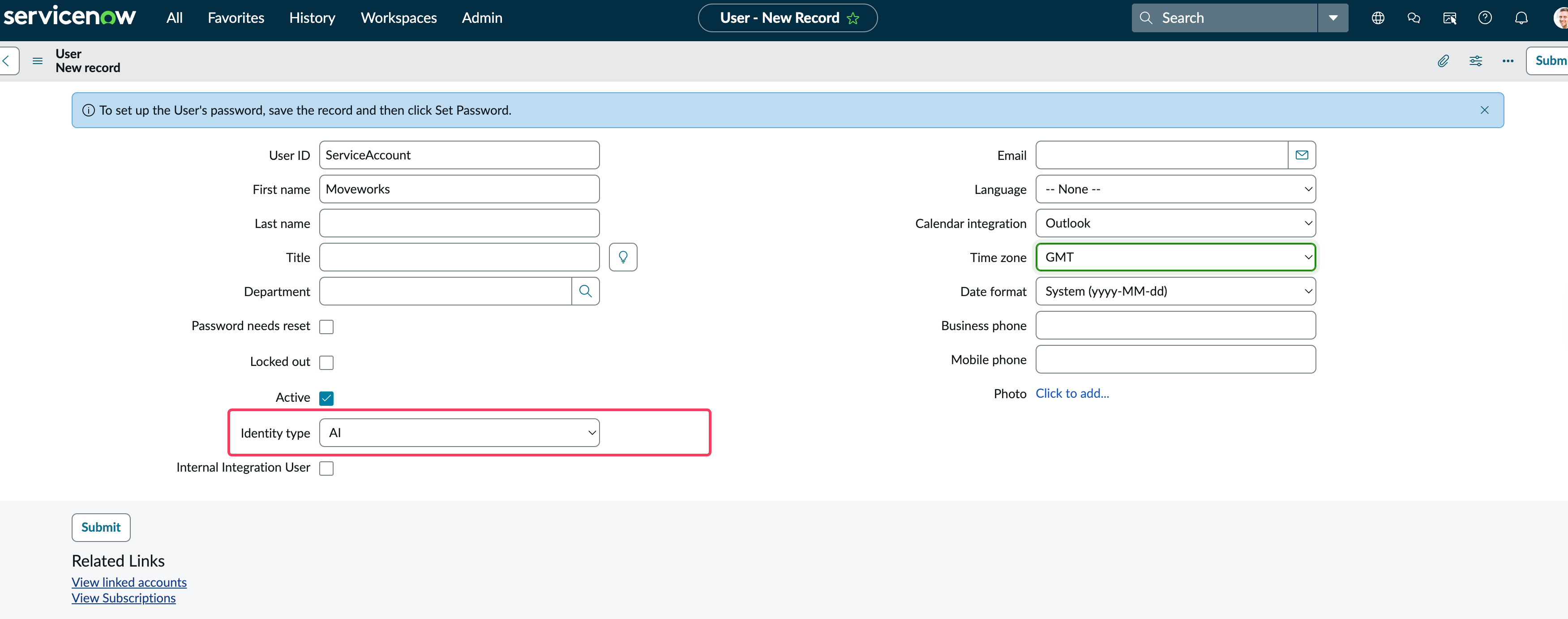

Fill in the service account details. Make sure that ‘Web Service Access Only’ checkbox is enabled
1. First Name/Last Name = Your Moveworks bot name (otherwise use “Moveworks”)
2. Time zone = GMT
3. Date format = yyyy-MM-dd
4. Email (Optional - required for OAuth2.0 with JWT) = Service account email ID of your choice (otherwise use svc_snow_mw@your_org.com)
Click on ‘Submit’

Step 2: Grant Permissions to Service Account

Click on ‘All’, Search for ‘Organization’ in the search bar, and then Click on ‘Users’ (As shown in the previous step)
Now, in the user table view, Search for the Service Account you just created and then Click on it
Click on the ‘Edit’ button located at the bottom right side

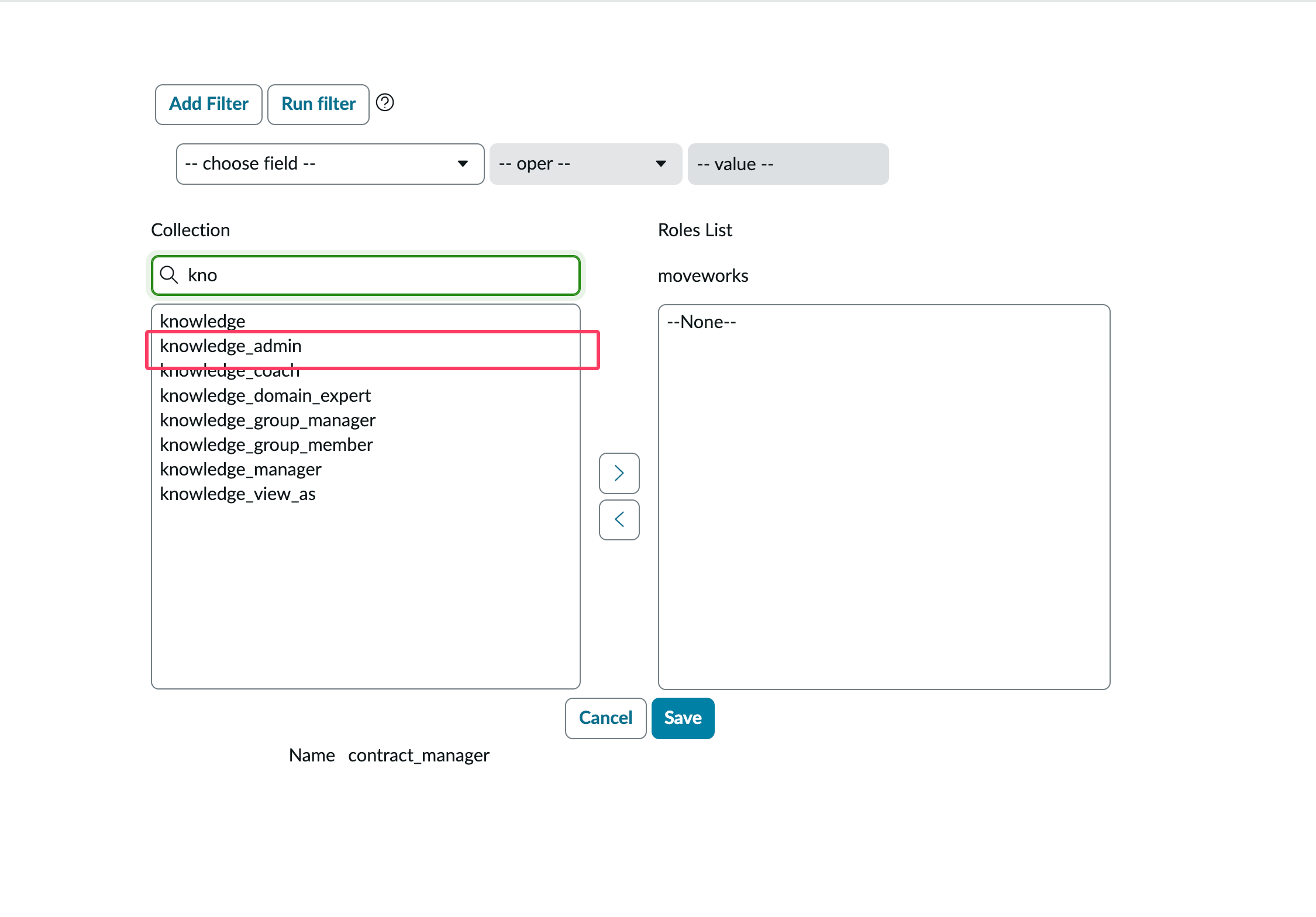

Click on the Permission, Click on the ‘Right Arrow’ button to assign (’Left Arrow’ button removes that permission), and then Click on ‘Save’ button.

The next section provides recommendation on specific roles & permissions for the Moveworks Service Account.

Service Account Requirements & Permissions

Account Timezone: GMT time zone (no offset)
Account Date Format: YYYY-MM-DD
Account Time Format: hh:mm:ss
Roles/Permissions:
- Option 1: Use ServiceNow Out of the Box/Standard roles
  - ITIL - Used for ticket CRUD operations (file ticket, add comment, close ticket, etc.)
  - Approval Admin - Used to read approvals, notify users on ServiceNow Approvals, and allow users to approve/deny approval
  - Flow Operator - Used to view flows, flow contexts and its logs
  - Catalog Admin - Used to read ServiceNow Catalog Items system definition and UI policies
  - Ui Policy Admin - Used to read ServiceNow Catalog Items system definition and UI policies
  - Personalize Dictionary - Used to read ServiceNow Catalog Items system definition and UI policies
  - interaction_agent - Optional: Used only for Message Brokering Live Agent Chat functionality
- Option 2: Use a custom role & Approval Admin role
  - Approval Admin Used to read approvals, notify users on ServiceNow Approvals, and allow users to approve/deny approval
  - Custom Role with access to the following tables:
    - Read/Write access:
      - incident
      - sc_request
      - sc_req_item
      - sc_task
      - sys_journal_field - used for comments
      - new_call (if call tickets are used)
    - Read-Only access:
      - sys_user - used to import user sys_id to take action on their behalf
      - kb_knowledge - used to import knowledge
      - kb_knowledge_block - used to import knowledge
      - kb_template_how_to - used to import knowledge
      - kb_template_kcs_article - used to import knowledge
      - kb_template_faq - used to import knowledge
      - kb_template_what_is - used to import knowledge
      - kb_template_known_error_article - used to import knowledge
      - sc_cat_item_content - used to import knowledge
      - sys_user_group - used for the bot to understand assignment groups
      - sys_choice - used to understand choice options
      - sc_cat_item - used to understand options that appear in choice lists
      - sc_cat_item_producer - used to import record producers
      - sc_catalog - used to import catalog items for Form Finding & skilling
      - sc_category - used to understand Service portal structure and properly filter catalog items
      - sc_cat_item_category - used to understand Service portal structure and properly filter catalog items
      - sc_cat_item_user_criteria_no_mtom - used to understand who cannot access a given catalog item
      - catalog_ui_policy - used to replicate the behavior of catalog item forms when presented to your users in Moveworks
      - catalog_ui_policy_action - used to replicate the behavior of catalog item forms when presented to your users in Moveworks for in-bot form filling
      - catalog_script_client - used to understand forms that have scripts associated with them for in-bot form filling qualification.
      - sys_ui_policy - used to replicate simple UI policies for for in-bot form filling
      - sys_dictionary- used to get display values for column drop downs for in-bot form filling
      - question_choice- used to pull a question and its choices for in-bot form filling
      - item_option_new- used to understand variable and variable set definition of a form for in-bot form filling
      - item_option_new_set- used to understand variable and variable set definition of a form for in-bot form filling
      - sc_item_produced_record - used to understand which tickets were submitted by a form.
      - sys_script_include - used to understand script definition to recommend alternative approaches

Along with the core needs mentioned above, provide the Moveworks service account read access for all tables used in reference field types in catalog items (Reference, Lookup Select Box, List Collector, Lookup Multiple Choice, Select Box).

💡
Note: It is recommended to create a user criteria for the service account that gets assigned to all catalog items. Moveworks will be able to respect user criteria for individuals using the bot, so they can only see resources that they have access to in the service portal. See below for more information.

Install Update Sets

Click here to download and install the Moveworks ServiceNow update sets.

The Moveworks bot can respect user criteria for knowledge articles and catalog items.

To set this up, please install the Moveworks update sets into your ServiceNow non-production and production instances.

After installing the update sets, a new role called moveworks_user is added to your instance. This role will need to be assigned to the Moveworks service account.

For more information on what the update sets contain, see this document.

💡
Note: In order for the bot to respect user criteria across all catalog items and knowledge articles, it is recommended to create a user criteria for the service account that gets assigned to all resources.

Service account in Non-Production Instance

A dedicated service account in ServiceNow will need to be created with the same permissions as for the Production service account in the closest clone of the Production instance. Typically this is a non-production Staging or Test instance. This Service account should be a clone of the account in production and have the same sys_id and same name. Ideally, the service account name should resemble the bot name.

🚧
Please clone the following tables from your Production to the Non-Production instances to ensure accurate configuration and testing:

sc_cat_item

kb_knowledge

What is this account used for

This account is used when the bot is being configured during the IT Testing phase. After launch to all employees, this account is used for testing purposes. The Moveworks Team tests all changes in our platform using this account against the Test/Staging instance before they are deployed.

Setting Up OAuth Access

Setting up OAuth 2.0 with Password Grant

Step 1: Register OAuth 2.0 API Client

Create a service account user (username & password), and note down the credentials. Your instance name is the prefix of your URL: https://{{instance_name}}.service-now.com
Access your ServiceNow instance by navigating to the URL provided in the previous step
In the top left side of navigation bar, Click on ‘All’, search for ‘System OAuth’ option in the search bar and then Click on ‘Application Registry’ under it
Now, in the top right side of navigation bar, Click on the ‘New’ button
Click on ‘Create an OAuth API endpoint for external clients’
Fill in the necessary details and Click ‘Submit’
Note down Client ID and Client Secret for later use in Step 3

Step 2: Test with Postman (or any other API client)

Choose one of the following options to configure a request in Postman

Setup through a new HTTP request
1. Open Postman, Click on ‘New’
2. Click on ‘HTTP’
3. Input your Instance Name in the URL bar and Username, Password, Client_ID, and Client_Secret in the Body using x-www-form-urlencoded option

Setup through cURL command method

Copy the following cURL command

curl --location 'https://{{instance_name}}.service-now.com/oauth_token.do' \
	--header 'Content-Type: application/x-www-form-urlencoded' \
	--user '{{username}}':'{{password}}'
	--data-urlencode 'grant_type=password' \
	--data-urlencode 'client_id={{client_id}}' \
	--data-urlencode 'client_secret={{client_secret}}' \
	--data-urlencode 'username={{username}}' \
	--data-urlencode 'password={{password}}'

Open Postman, Click on ‘Import’
Paste the cURL command
Click on ‘Import Into Collection‘
Substitute the saved values from previous steps and Click on ‘Send’

Verify whether the response includes access_token and refresh_token (Applicable to both methods listed above)

Step 3: Configure in Moveworks Setup

Go to Manage Connectors > System Connectors, then click on ‘CREATE NEW’
Click on ‘ServiceNow’ Connector, then click on ‘Next ADD CREDS’
Fill in the Instance Name, Client ID, Client Secret, Username, and Password obtained in Step 1
1. Instance:
  1. If ‘Common Base URL’ option is selected, just enter instance_name that appears in https://{{instance_name}}.service-now.com
  2. If ‘Custom Base URL’ option is selected, enter the Instance URL after ‘https://’
2. Authentication Type: Select 'Oauth2 with Password Grant' from the dropdown
3. Client ID: Client ID
4. Client Secret: Client Secret
5. Username: Username
6. Password: Password
Click on ‘Save’

Setting up OAuth 2.0 with Refresh Token Grant

Step 1: Register OAuth 2.0 API Client

Create a service account user (username & password), note them down. Your instance name is the prefix of your URL: https://{{instance_name}}.service-now.com
Access your ServiceNow instance by navigating to the URL provided in the previous step
In the top left side of navigation bar, Click on ‘All’, search for ‘System OAuth’ option in the search bar and then Click on ‘Application Registry’ under it
Now, in the top right side of navigation bar, Click on the ‘New’ button
Click on 'Create an OAuth API endpoint for external clients'
Fill in the necessary details

🚧
Note
Refresh token is only provided if the "Refresh Token Lifespan" field is set to a value greater than 0
Click ‘Submit’

Step 2: Generate Refresh Token

The steps to generate a Refresh Token are similar to the ones mentioned in Step 2 of Setting up OAuth 2.0 with Password Grant

Setup through a new HTTP request

Setup through cURL command method

curl --location '{{snow_url}}/oauth_token.do' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'grant_type=password' \
--data-urlencode 'client_id={{snow_client_id}}' \
--data-urlencode 'client_secret={{snow_client_secret}}' \
--data-urlencode 'username={{snow_username}}' \
--data-urlencode 'password={{snow_password}}'

📘
Note
You can use the refresh token to get a new access token when the current one expires

Step 3: Configure in Moveworks Setup

Go to Manage Connectors > System Connectors, then click on ‘CREATE NEW’ (As shown in Step 3 of Setting up OAuth 2.0 with Password Grant)
Click on ‘ServiceNow’ Connector, then click on ‘Next ADD CREDS’ (As shown in Step 3 of Setting up OAuth 2.0 with Password Grant)
Fill in the Instance, Client ID, Client Secret, and Refresh Token obtained in the previous steps
1. Instance:
  - If ‘Common Base URL’ option is selected, just enter instance_name that appears in https://{{instance_name}}.service-now.com
  - If ‘Custom Base URL’ option is selected, enter the Instance URL after ‘https://’
2. Authentication Type: Select 'Oauth2 with Refresh Token Grant' from the dropdown
3. Client ID: Client ID
4. Client Secret: Client Secret
5. Refresh Token: Refresh Token
Click on ‘Save’

Setting up OAuth 2.0 with JWT

Moveworks will send you an encrypted email containing the Java KeyStore, certificate and password required to configure the next steps.

Step 1: Create a Service Account

Create a service account user (username , email(required) & password), note them down. Your instance name is the prefix of your URL: https://{{instance_name}}.service-now.com
Access your ServiceNow instance by navigating to the URL provided in the previous step
Assign the required permissions to this service account by following the process mentioned above.

Step 2: Install the certificate and create the JWT provider

First, we will create a JWT provider in your instance that will be responsible for generating authentication tokens for our services to verify that the service account is properly authenticated into ServiceNow. The following steps will walk you through creating the records below:

MW Java Key Store
MW JKS Certificate
JWT Key
JWT Provider

Navigate to the X.509 Certificate table in SNOW (search for "Certificates" to find it), create a new record as follows:
Name: MW Java Key Store
Type: Java Key Store
Click on the paperclip in the upper right to attach the JKS file. The file will have a .jks extension.
Enter the password provided by Moveworks. Right click the top gray bar, click save.
Important: If you save before entering the password, it may seem to auto populate the Key-store password. This doesn't always work correctly, so always enter the password manually.
Click "Validate Stores/Certificates" under Related Links to ensure the record was configured properly.
Navigate to the JWT Keys table (under System Oauth). Create a new record and set its Signing Key Store to the certificate record you made in the previous step. Enter the same password Moveworks provided in the Signing Key field. Save this record.
Navigate to the JWT Provider table. Create a new record and set its Signing Configuration to the key record you made in the previous step. Update the Expiry Interval from 60 sec to 3600 sec (1 hour).
Navigate to the X.509 Certificate table again and create a new record as follows:
Name: MW JKS Certificate
Format: PEM
Type: Trust Store Cert
Extract the contents of the JKS Certificate and paste it in the PEM Certificate section. The Certificate file will have a .crt extension. You can either use your terminal / command prompt or a text editor to view and copy the contents of this file.
Click "Validate Stores/Certificates" under Related Links to ensure the record was configured properly.

Step 3: Register OAuth 2.0 API Client

In the top left side of navigation bar, Click on ‘All’, search for ‘System OAuth’ option in the search bar and then Click on ‘Application Registry’ under it
Now, in the top right side of navigation bar, Click on the ‘New’ button
Click on 'Create an OAuth JWT API endpoint for external clients'
Fill in the necessary details and click on ‘Submit’
📘
Note
- Set Access Token Lifespan to 3600
- Disable JTI Verification
Copy the Client ID and Client Secret and store it in a safe storage to use it in the next step.
Navigate to JWT Providers(under System OAuth) and update the JWT Provider that you created above with the following claim values:
aud: Client ID of the App Registry record created
iss: Client ID of the App Registry record created
sub: Email ID of the service account user that you created above
Click on the OAuth Client to open it again
In the related Lists under Jwt Verifier Maps, click on New to create a new JWT verifier map.
1. Make sure to set the Shared Key value to the same password shared by Moveworks.
For Sys certificate, click on the search icon and select the MW JKS Certificate that you created before and click on Submit.
Copy the Kid of the newly created Jwt Verifier Map.
Navigate to JWT Keys (under System OAuth) and select the JWT Key you created above. Update the Key ID with the Kid that was auto-generated in the previous step.

Step 4: Generate the Private Key file

In this step, you will generate the Private Key file from the Java KeyStore file (.jks file) shared with you. This is crucial for configuring the Connector in subsequent steps.

Requirements:

Java KeyTool: Available with the Java Development Kit (JDK).
OpenSSL: Ensure OpenSSL is installed on your system. It's available by default in most Unix/Linux systems and MacOS, but may need to be installed separately on Windows.

Procedure:

Open Your Terminal/Command Prompt
- Windows: Search for cmd or Command Prompt in Start and open it.
- MacOS/Linux: Open Terminal from Applications or your preferred method.
Navigate to the Directory Holding Your .jks File

Use the cd command followed by the path to the directory:
```
cd path/to/directory
```
Convert .jks to .p12 File

Replace liveCERT.jks with your .jks file name and your-dest-file-name.p12 with your desired .p12 file name.
```
keytool -importkeystore -srckeystore liveCERT.jks -destkeystore your-dest-file-name.p12 -srcstoretype JKS -deststoretype PKCS12
```
- Input the source keystore password when prompted. This password should have been shared with you along with the .jks file.
Extract the Private Key to a PEM File

Ensure OpenSSL is accessible in your system's command line or terminal. Run:
```
openssl pkcs12 -in your-dest-file-name.p12 -nocerts -out your-private-key-file-name.pem -nodes
```
Replace your-dest-file-name.p12 with your .p12 file name and your-private-key-file-name.pem with your desired output filename for the PEM.

Now, you will have your-private-key-file-name.pem, which will be utilized in configuring the Connector in the following steps.

📘
Notes

Windows Users: If OpenSSL isn't installed, you can download it from OpenSSL's official page or use a third-party distribution like Cygwin or Git Bash that includes OpenSSL.

MacOS/Linux Users: OpenSSL should be pre-installed. If not, you can install it via Homebrew (Mac) or your Linux distribution’s package manager (apt for Ubuntu, yum for CentOS, etc.)

Make sure to replace placeholders (like liveCERT.jks, your-dest-file-name.p12, and your-private-key-file-name.pem) with actual file names specific to your scenario.

Step 5: Configure in Moveworks Setup

Go to Manage Connectors > System Connectors, then click on ‘CREATE NEW’ (As shown in Step 3 of Setting up OAuth 2.0 with Password Grant)
Click on ‘ServiceNow’ Connector, then click on ‘Next ADD CREDS’ (As shown in Step 3 of Setting up OAuth 2.0 with Password Grant)
Fill in the Instance, Client ID, Client Secret, Service account email ID, Key id and Private Key file obtained in the previous steps
1. Instance:
  - If ‘Common Base URL’ option is selected, just enter instance_name that appears in https://{{instance_name}}.service-now.com
  - If ‘Custom Base URL’ option is selected, enter the Instance URL after ‘https://’
2. Authentication Type: Select 'OAuth2 JWT Grant' from the dropdown
3. Client ID: Client ID
4. Client Secret: Client Secret
5. Service account email ID: Email ID of the service account that you created above
6. Private Key: Upload the .pem Private Key file that you generated in the previous step
7. Key id: Enter the Key ID that was generated at Step 3.11
Click on ‘Save’

Appendix A: APIs Accessed

Read-Only API Accessed

Access to these APIs will allow the Moveworks bot to support filling of Catalog Items within the Moveworks bot and/or Moveworks Web interface.

/api/sn_sc/v1/servicecatalog/items/<form_id>
- Attributes needed: sys_id, variables, picture, categories, catalogs, visible_standalone, sys_class_name, ui_policy, client_script, title, name, short_description, description
/api/now/v2/table/sc_cat_item
- Attributes needed: sys_id, active, hide_sp
/api/now/v2/table/item_option_new
- Attributes needed: default_value, sys_id, question_text, description, mandatory, active, type, choices, lookup_table, lookup_value, reference_qual_condition, variable_set
/api/now/v2/table/sc_catalog
- Attributes needed: sys_id, active, title
/api/now/v2/table/sc_category
- Attributes needed: sys_id, active, title
/api/now/v2/table/sys_dictionary
- Attributes needed: element, display, name
/api/now/v2/table/catalog_ui_policy
- Attributes needed: sys_id, active, catalog_item, variable_set, catalog_conditions, reverse_if_false, order, applies_catalog, global
/api/now/v2/table/catalog_ui_policy_action
- Attributes needed: sys_id, catalog_item, variable_set, mandatory, cleared, disabled, visible, order, ui_policy
/api/now/v2/table/sys_db_object
- Attributes needed: sys_id, name, super_class

Additional Access Required for ServiceNow Message Brokering (Optional)

The APIs below allow the Moveworks bot to support Message Brokering for Live Agent Chat within the Moveworks bot and/or Moveworks Web interface.

Pre-requisites: The Virtual Agent API plugin should be installed.

/api/now/table/awa_agent_presence_capacity
- Permission needed to get the number of Live Agents available in a queue
/api/now/table/interaction
- Permission needed to be able to transfer attachments between an agent and a user.

Appendix B: Moveworks Contact Type

It’s recommended to add a Moveworks-specific contact type so all Incident tickets created by the bot will have the same contact type. This can be called “Moveworks” and later on renamed to be the finalized bot name.

Updated about 4 hours ago

Prerequisites

📘Note

Actions taken in your ServiceNow instance (ITIL and Workflow)

Service account in Production Instance

What is this account used for

How to create a Service Account

Service Account Requirements & Permissions

💡

Install Update Sets

💡

Service account in Non-Production Instance

🚧

What is this account used for

Setting Up OAuth Access

Setting up OAuth 2.0 with Password Grant

Setting up OAuth 2.0 with Refresh Token Grant

🚧Note

📘Note

Setting up OAuth 2.0 with JWT

📘Note

📘Notes

Appendix A: APIs Accessed

Additional Access Required for ServiceNow Message Brokering (Optional)

Appendix B: Moveworks Contact Type

📘
Note

🚧
Note

📘
Note

📘
Note

📘
Notes
