JWKS Auth

JWKS Auth signs JWT assertions using managed RSA keys and publishes the corresponding public keys via an org-scoped JWKS endpoint. You can use the signed JWT directly as a Bearer token or exchange it for an OAuth 2.0 access token. Keys rotate automatically, and the JWKS endpoint serves both the current and next keys during a configurable grace period to ensure seamless rollover.

Authentication Options

Direct authentication

Generate a JWT using the configured claims and the org’s current private key.
Sign the jwt token with the org’s current private key.
Use the signed JWT as Authorization: Bearer <jwt> in the request header authorization.

Two-step (JWT → OAuth2 access token)

Construct and sign the JWT as above.
Exchange the JWT for an Access Token (optional). If a token request URL is provided, the JWT is posted to that URL and the returned access token is used. Otherwise, the JWT itself is used as the Bearer token

Step 1: Org-Scoped JWKS Endpoint

Verifiers can fetch public keys from the org-scoped JWKS endpoint. The org is inferred from the first label of the Host header (org alias or mapped subdomain).

Endpoint: GET /.well-known/jwks.json
Host: https://{{tenant_name}}.moveworks.com (e.g. https://acme.moveworks.com)
Success: 200 OK with { "keys": [ JWK, ... ] }
Not found: 404 when no JWKS config exists for the org
Bad request: 400 for missing/invalid host or org alias
Rate limited: 429 when rate limit is exceeded

Example response:

{
  "keys": [
    {
      "kty": "RSA",
      "kid": "current-key-id",
      "n":   "...base64url modulus...",
      "e":   "AQAB",
      "x5c": ["...base64 DER certificate..."]
    },
    {
      "kty": "RSA",
      "kid": "next-key-id",
      "n":   "...",
      "e":   "AQAB",
      "x5c": ["..."]
    }
  ]
}

Step 2: How We Generate and Sign the JWT

Key type: RSA 2048
JWK fields: kty, kid, n, e, x5c (self-signed certificate, 1-year TTL)
KID format: UUID, optionally prefixed when generated
Claims: iss, sub, aud, iat, exp plus any additional claims
Headers: Optional custom headers (e.g., typ) can be set

Example (Python) of how the system constructs and signs the JWT using the org’s current private key:

import jwt
import time

private_key_pem = secret_store.get("Jwks Auth Private Key")  # referenced by JwksSecret
algorithm = "RS256"

claims = {
    "iss": config["Jwks Auth Claims Issuer"],
    "iat": int(time.time()),
    "exp": int(time.time()) + int(config["Jwks Auth Claims Expiry Seconds"]),
    **config.get("Jwks Auth Additional Claims", {}),
    **config.addtional_claims
}

if config["Jwks Auth Claims Audience"]:
	claims["aud"] = config.audience
if config["Jwks Auth Claims Subject"]:
	claims["sub"] = config.subject
if config["Jwks Auth Claims Scopes"]:
	claims["scope"] = ' '.join(config=["JWKS Auth Claim scopes"])

# The server-managed jwks KID is injected automatically. Don't put another separate kid into header
headers = { **config.get("Jwks Auth Headers", {}), 'alg': algorithm, 'kid': config.get("kid") }

jwt_assertion = jwt.encode(claims, config.private_key, algorithm=algorithm, headers=headers)

Step 3: Exchange JWT for an Access Token (optional)

If a token request URL is configured, the JWT assertion is exchanged for an access token:

curl -X POST "$(config['Jwks Auth OAuth2 Access Token Request URL'])" \\
     -H "Content-Type: application/x-www-form-urlencoded" \\
     -d "grant_type=urn:ietf:params:oauth:grant-type:jwt-bearer" \\
     -d "assertion=$jwt_assertion"

A successful response typically looks like:

{
  "access_token": "YOUR_ACCESS_TOKEN",
  "token_type": "Bearer",
  "expires_in": 3600
}

If no token URL is provided, the signed JWT is used directly as the Bearer token.

Step 4: Use the Access Token in API Requests

curl -X GET "<https://api.example.com/data>" \\
     -H "Authorization: Bearer $ACCESS_TOKEN"

Where $ACCESS_TOKEN is either the exchange result or the signed JWT itself.

Key Management and Rotation

Storage: A JwksSecret stores a reference to the private key (in the secret store), the JWK JSON, and the kid.
Publication: The JWKS service serves the union of current and next JWKs for the org at /.well-known/jwks.json.
Rotation inputs: rotation_interval (days) and rotation_grace_period (hours).
Grace period: both current and next are served during the grace window; verifiers must accept tokens signed by either kid until the grace window ends.
System fields: next_jwks (populated automatically), updated_at (last rotation), grade_period_ends_at (end of grace window).

Mermaid timeline illustrating rotation and grace:

sequenceDiagram
  autonumber
  participant C as Client (Signer)
  participant J as JWKS Service
  participant V as Verifier (Auth Server)

  Note over C: T0 — Current key (kid = K0)
  C->>J: Publish JWKS {K0}
  V->>J: GET /.well-known/jwks.json
  J-->>V: { keys: [K0] }
  V->>V: Cache K0 until TTL

  Note over C,J: Rotation event at T1
  C->>J: Publish JWKS {K0, K1}
  V->>J: Refresh JWKS
  J-->>V: { keys: [K0, K1] }
  V->>V: Accept tokens with kid in {K0,K1}

  Note over C,J: Grace period ends at T2
  C->>J: Publish JWKS {K1}
  V->>J: Refresh JWKS
  J-->>V: { keys: [K1] }
  V->>V: Reject tokens with kid=K0

Flow overview of key issuance and use:

flowchart TD
  A[Generate RSA 2048 key] --> B[Create JWK + self-signed x5c]
  B --> C["Save JwksSecret (private_key ref, jwk, kid)"]
  C --> D["Serve JWKS per org: current + next"]
  C --> E[Sign JWT with private key]
  E --> F{Token URL configured?}
  F -- Yes --> G[POST JWT to OAuth2 token URL]
  G --> H[Use access_token as Bearer]
  F -- No --> I[Use JWT as Bearer]
  D --> J[Verifier fetches JWKS and validates by kid]

Configuration Fields

To set this up:

Select Jwks Auth from the Auth Config dropdown.

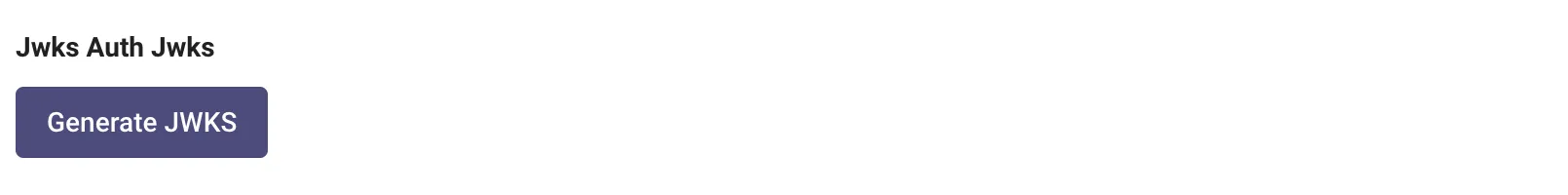

Click the Generate JWKS button to generate the public and private key pair.

Fill in the required fields:

Field	Description
Jwks Auth Rotation Interval	In days; how often to rotate keys.
Jwks Auth Rotation Grace Period	In hours; both keys are served during grace
Jwks Auth Claims Expiry Seconds	This sets the `exp` claim at `iat + expiry_seconds`
Jwks Auth Claims Issuer	Sent as `iss` claim
Jwks Auth Claims Audience	Sent as `aud` claim
Jwks Auth Claims Subject	Sent as `sub` claim
Jwks Auth Headers	Optional JWT header claims such as `typ`.
Jwks Auth Additional Claims	Optional JWT payload claims like `scope`, `name`, `jti`
Assertion Key	Optional key used to pass the JWT assertion. If no key is specified, the standard 'assertion' is used.
Jwks Auth OAuth2 Access Token Request URL	If provided, perform JWT bearer exchange.
Jwks Auth Custom OAuth Request Options	Optional overrides for the token request.

Notes:

If the grace period is configured as 0, the system adds a small propagation buffer internally.
The JWKS endpoint rate limits excessive requests and returns 429 when over limit.

Implementation Notes

JWKS endpoint: /.well-known/jwks.json (serves keys for the org derived from the Host header subdomain).
Input config: org-scoped JWKS public keys are provided via a reloadable config; the endpoint parses and returns them in the standard JWKS format.
Key format: RSA 2048 with x5c including a self-signed certificate (1-year TTL).
Rotation: The platform maintains current and next keys in config and surfaces both during grace to support seamless rollover.

Verification Guidance

Always select the verification key by the JWT kid header.
Cache JWKS responses per your policy, but refresh on signature failures or at reasonable intervals.
During rotation, accept tokens signed with either the current or next kid until the grace period ends.
If you see 404 from the JWKS endpoint, verify that the org alias is correct and that JWKS is configured for the org.

Troubleshooting

400 invalid host or missing org alias: Ensure requests include a Host header like <org-alias>.moveworks.com.
404 no JWKS config: The org has no JWKS configured; configure JwksSecret and Jwks Auth first.
429 rate limit exceeded: Back off and retry with exponential backoff.
Parsing errors in keys: Ensure JWK JSON follows spec (kty, kid, n, e, optional x5c).
