Configure Ticketing Workflows

What are Workflows and how are they used?

The ticketing workflow is a tool that helps to replicate your external system's ticketing process. It offers flexibility and customization to your operations, including creating, updating, re-opening, and resolving tickets.

What are Routing Conditions and how are they used?

Routing Conditions allow you to specify which workflow to execute when each high-level ticketing action is taken. You can configure routing conditions for the following high-level ticketing actions:

  • Generate Ticket
  • Query Ticket
  • Update Ticket
  • Resolve Ticket
  • Reopen Ticket

These Routing Conditions will be auto-generated and pre-configured. The default behavior will be sufficient in most cases, but you may configure/modify them further if needed.

How should these be configured?

When configuring to support specific behavior, we suggest using a top-down approach by thinking about Routing Conditions first to determine what high-level skills or conditions should trigger this behavior. Then think about Workflows in terms of what actions you would like to execute, in what order, and under what conditions.

In practice however, you must configure a Workflow before you can reference it in a Routing Condition.

Ticketing Workflows

Default Workflows

Some workflows are auto-generated to provide default behavior for Concierge & Ticketing. These are prefixed with "GENERIC_MW_DEFAULT_CONCIERGE_" and provide pre-defined actions, but they can be used as a starting point and modified according to your specific needs.

Create Custom Workflows

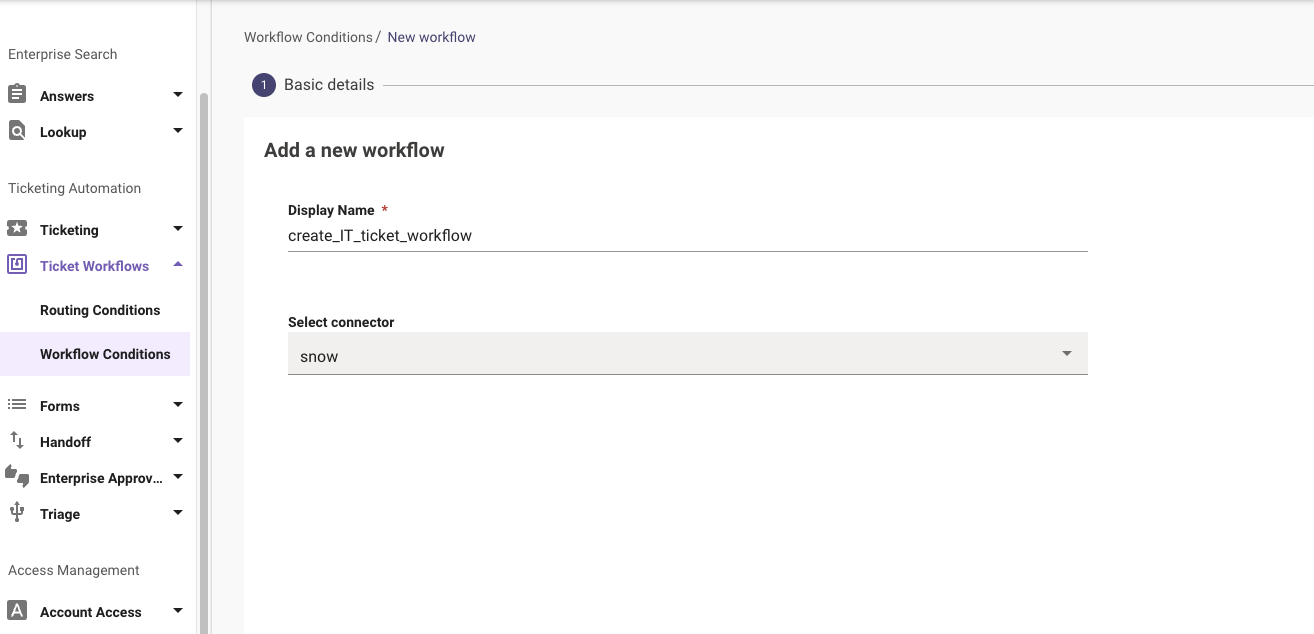

You can also create new, custom workflows from scratch. To create a new workflow:

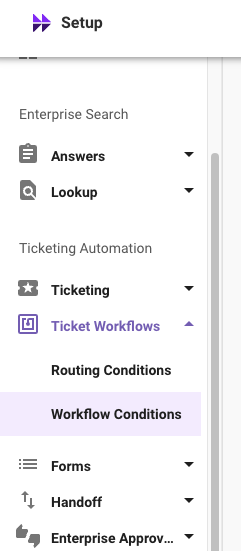

→ Navigate to 'Ticket Workflows - Workflow Conditions'

→ Click on 'Create' in the top right to create and configure a new workflow.

→ Define:

  1. Display name - Name the workflow for future references
  2. Select connector - Select the connector of the end system where the workflow will be triggered

→ Click 'NEXT: ADD WORKFLOW' in the bottom right.

→ On this screen, you can configure the various actions that should be taken when the workflow is triggered. Below is the list of primitive actions that can be used. For each workflow, you must define one or more default actions, and optionally one or more conditional actions that will be taken upon execution of the workflow. If no Conditional Action rule is satisfied, the Default Action(s) will be taken. For more detail on configuration of each action, see Workflow Actions.

1. Generate ticket action
2. Submit form action
3. Fetch single ticket action
4. Fetch requester ticket action
5. Add comment action
6. Add worknote action
7. Upload attachments action
8. Update fields action
9. Update state action
10. Update assignment action
11. Resolve ticket action
12. Reopen ticket action
13. Generate ticket from existing ticket action
14. Submit form from existing ticket action
15. Raise exception action

  1. Click 'Add +' under Default Action Actions to Add a default action to take for this workflow.

  2. Click 'Add +' under Conditional Actions to add any conditional actions to take for this workflow.

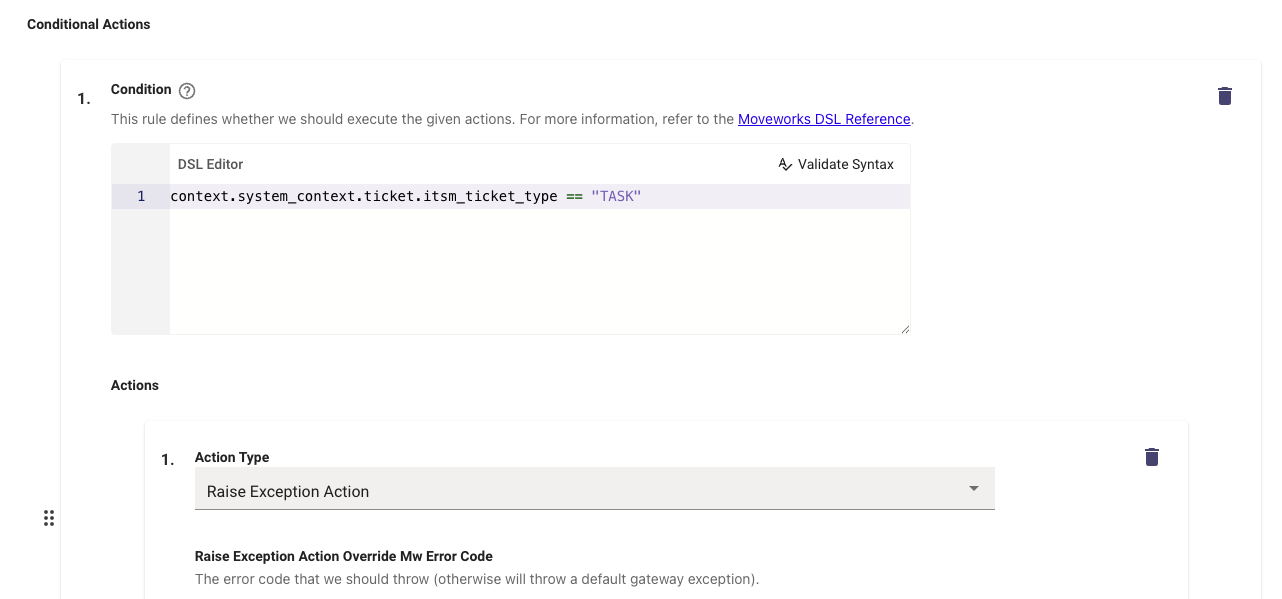

    1. For each conditional action, you must define a DSL rule that will determine when the action should be taken.

→ Click 'Confirm Workflow' in the bottom right to finalize the workflow configuration.

Workflow Actions

There are built-in primitive actions available to use when creating a Workflow. Most of the actions are self-describing and require no additional configuration, but these are the exceptions:

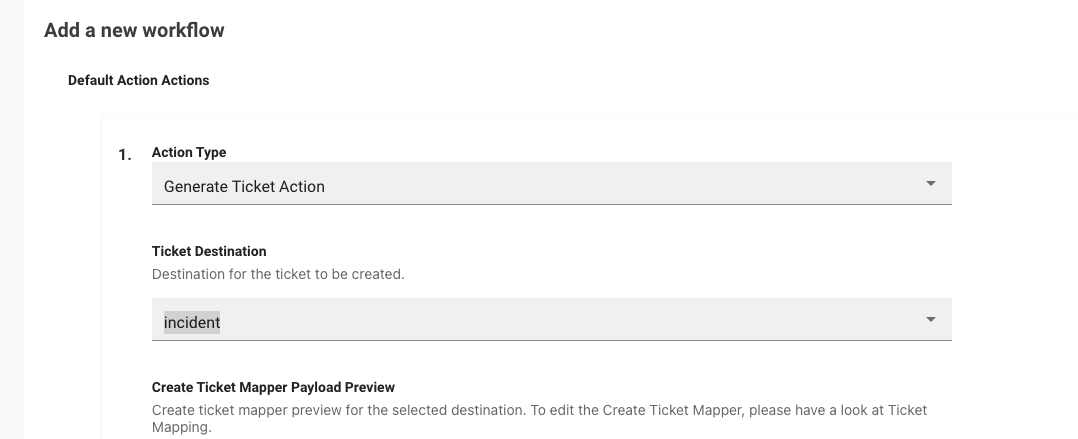

  • Generate Ticket Action

    • Generate a ticket via direct table insertion
    • Additional configurations:
      • Ticket Destination

        • By default, Moveworks will predict whether the ticket should be an Incident or Request and assign that value to a variable within Moveworks called ticket_type. You can utilize ticket_type in the Conditional DSL rule to specify which ticket destination should be filed in either scenario.

          • For example, if you have two different Incident ticket types mapped within Moveworks ticket mapping, you can choose the one you'd like to be filed when Moveworks predicts the type to be Incident.

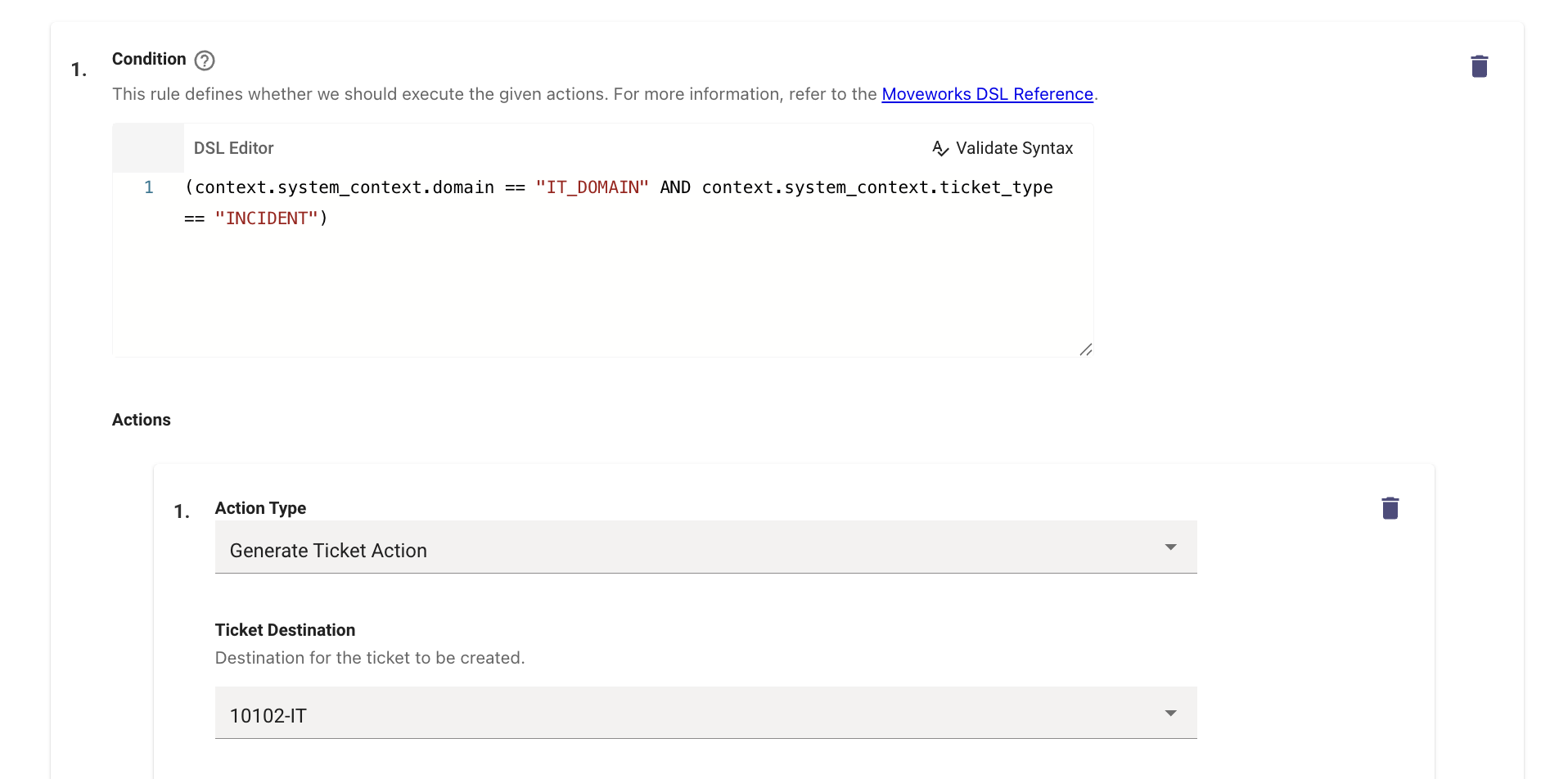

            Example of choosing which ticket destination to file when Moveworks predicts the ticket should be an Incident:

            context.system_context.ticket_type == "INCIDENT")


        • You can also use other criteria in the conditional such as context.system_context.domain to specify which ticket type should be filed per domain. The DSL editor contains a dropdown of all available criteria that can be used when writing the conditional rules.

        • The ticket destination options will consist of the Ticket Types that have been mapped in Ticket Mapping

        • A read-only preview of the Create Ticket Payload will appear for the selected Ticket Destination so that you can review the configured payload that will be used to create the ticket.

      • Generate Ticket Action Additional Ticket Fields Mapper
        • Additional data you want to send when filing the ticket. This output mapper only support constants (no DSL).

          • Note: The Additional Ticket Fields Mapper is used to define variables and set them to a hard coded value. For example, you can define a variable called category and set it to value "Software" to be populated when software request tickets are filed. This mapper is only responsible for defining the variable. To include it in the generate ticket outbound payload, the field must be included in the Create Ticket Payload mapping in the Ticket Mapping configuration for the desired ticket type.

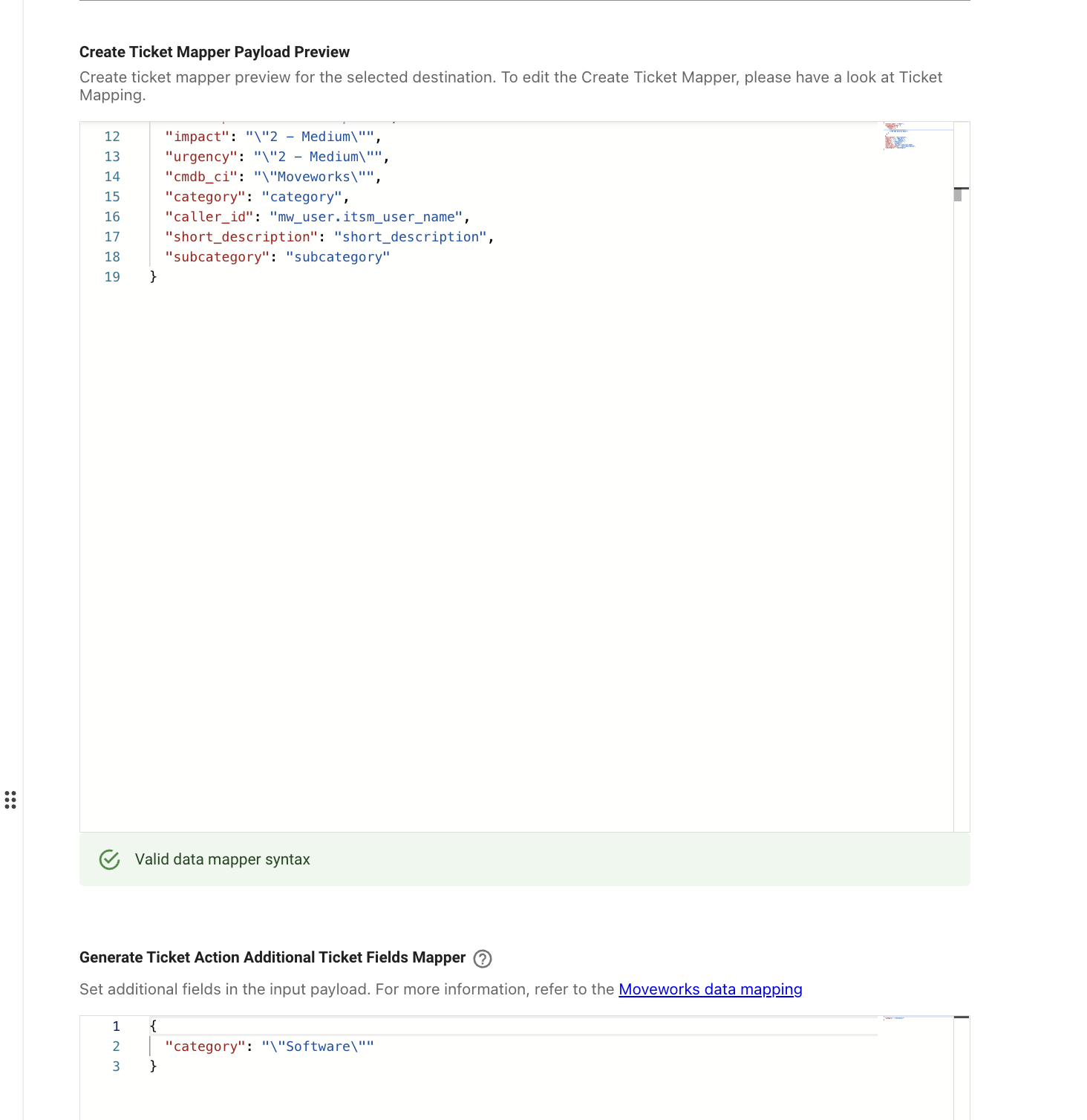

            • For example, in the image below, you can see from the "Create Ticket Mapper Payload Preview" that the "category" field in red has been included in the create ticket payload. The category field will be populated with a variable called "category" within Moveworks. In order to populate the Moveworks "category" variable, we can define it in the ticket workflow Additional Ticket Fields Mapper. This allows you to set different dynamic category variables in your configured conditional ticket actions in the ticket workflow.

            Reminder: Simply setting category to a value in the Generate Ticket Action Additional Ticket Fields Mapperwill not result in the field getting set upon ticket creation. The variable name from the Generate Ticket Action Additional Ticket Fields Mapper must be set in the ticket mapping generate ticket payload mapping.

  • Submit Form Action

    • Create a ticket via form submission.
    • Additional configurations:
      • Submit Form Action Form Details
        • The type of form id.
          • For ServiceNow, select whether it’s a record producer or catalog item.
          • For FreshService, specify the Service Item Catalog Id.
      • Output mapper

        • Payload that will be sent to the ITSM system to submit the form.

          • First, specify the field name from your ITSM ticket to be populated, the specify the value of the field that should be set.

            • Note: Moveworks has several system variables that will be populated with data automatically that can be used in create ticket payload in ticket mapping and in the Submit Form Action in Ticket Workflows:
              • description
              • short_description
              • mw_user.requested_for

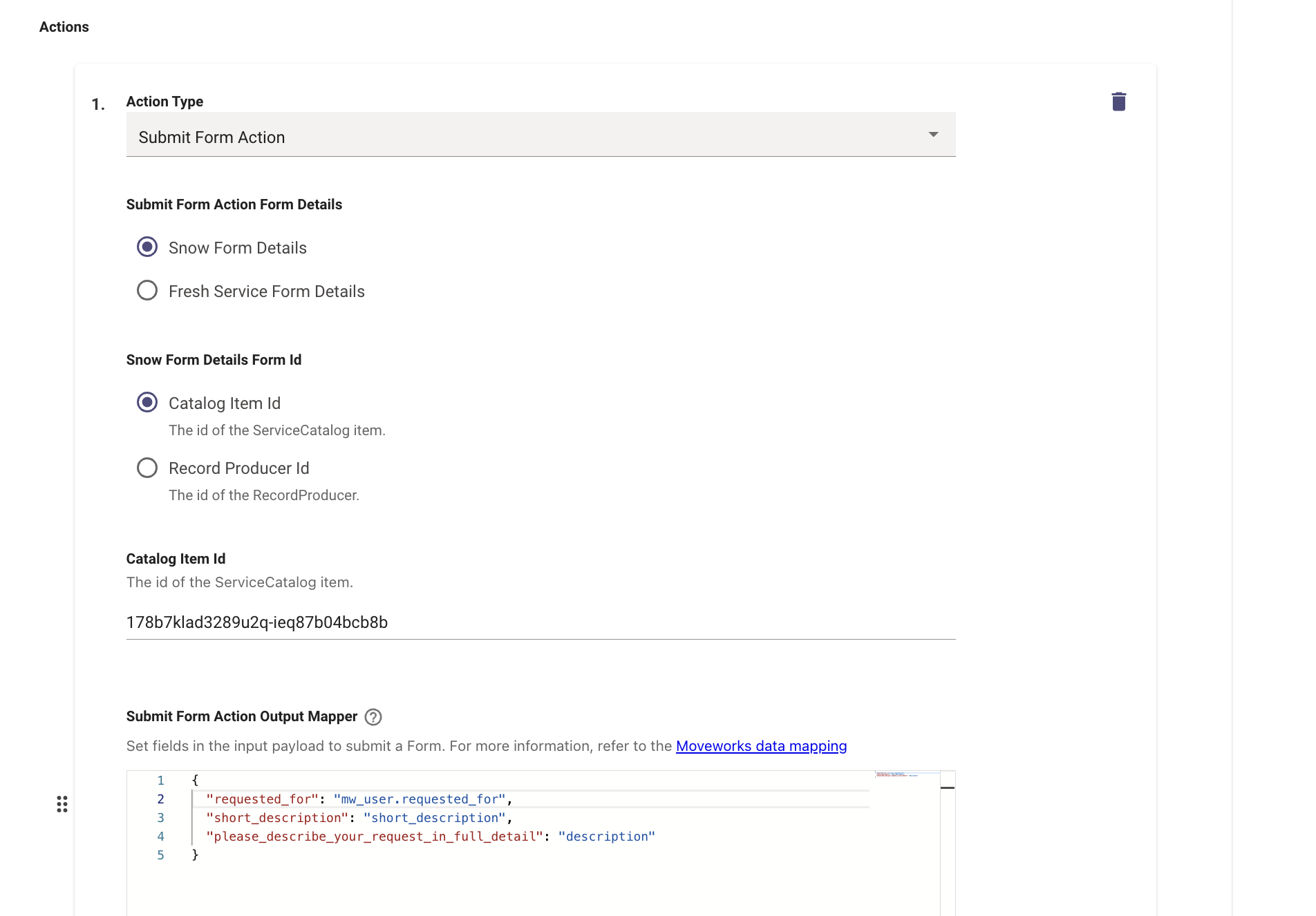

          • Example:

            The fields in red are the backend field names from the ITSM that will be used in the create ticket API call. The blue variables are Moveworks system variables that are populated automatically.

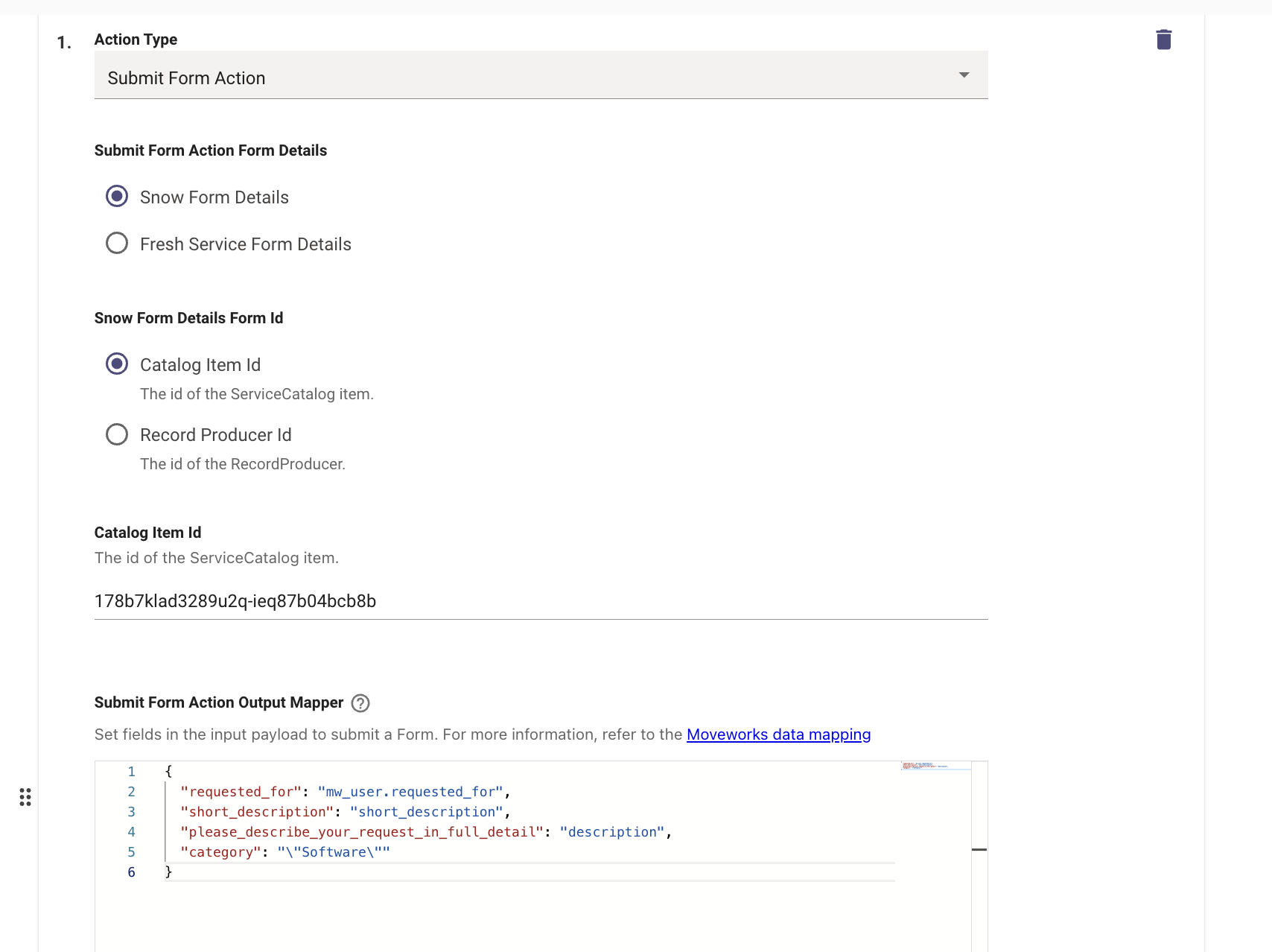

          • You can also hard code a value in the Submit Form Action such as 'category' in the example below. Be sure the escape the string values by adding '' in front of the quotes surrounding the string.


  • Generate Ticket From Existing Ticket Action

    • Instead of reopening the original ticket, generate a new ticket via direct table insertion.
    • Additional configurations:
      • Ticket Destination
        • Choose the type of ticket that should be generated when a user requests to reopen a ticket of a certain type
      • Output mapper
        • Used to carry over fields from the original ticket to the new ticket.
        • Fields that are available to reference when bending are:

          • The original ticket in the form of ticket.

            • Example: ticket.requested_for, ticket.short_description, etc
            • In the example below, the comments, work_notes, and short_description are configured to be copied over from the previous ticket and the parent field is configured to be set to the ID of the original ticket

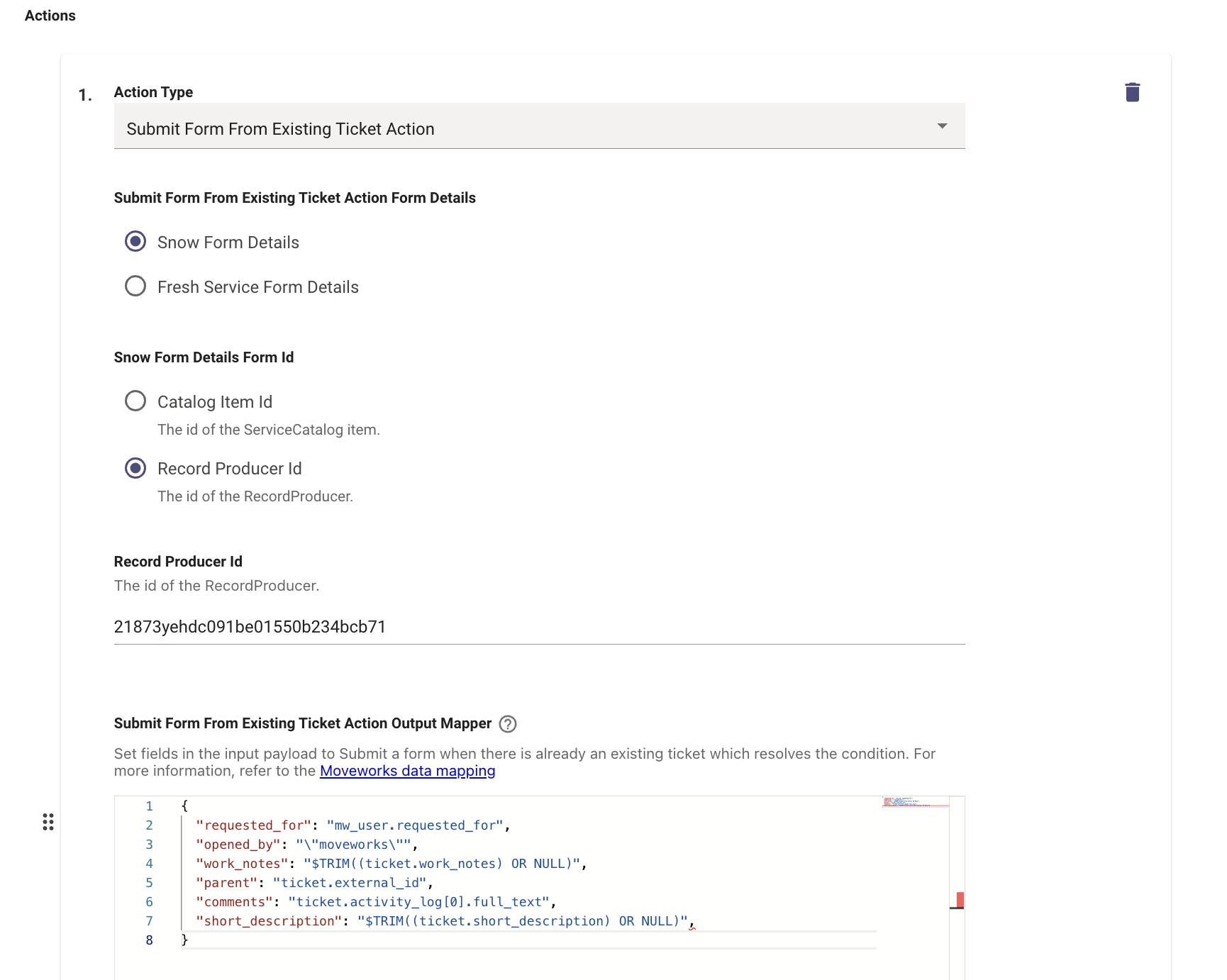

  • Submit Form From Existing Ticket Action

    • Instead of reopening the original ticket, create a new ticket via form submission
    • Additional configurations:
      • Submit Form Action Form Details
        • The type of form id.
          • For ServiceNow, select whether it’s a record producer or catalog item.
          • For FreshService, specify the Service Item Catalog Id.
      • Output mapper
        • Payload that will be sent to the ITSM system to submit the form.
        • Fields that are available to reference when bending are:
          • The original ticket
          • Requestor in the form of mw_user

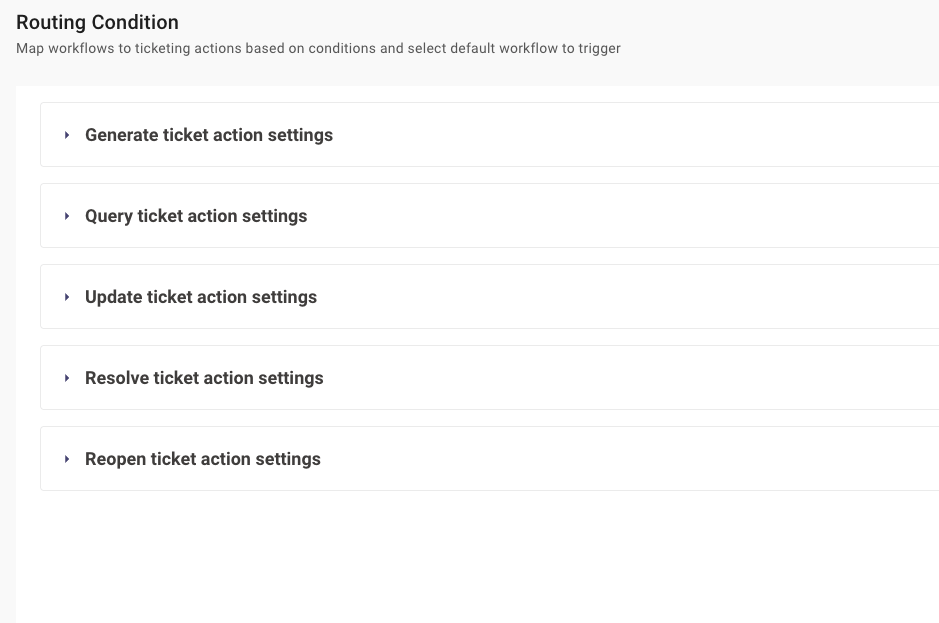

Routing Conditions

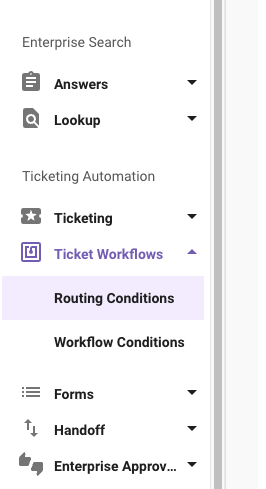

To configure routing conditions, navigate 'Routing Conditions' in Moveworks Setup.

→ Expand the settings for the high-level action you would like to configure.

→ For each action:

  • You must specify a Default Workflow using the Workflow Name value from Workflow Conditions.

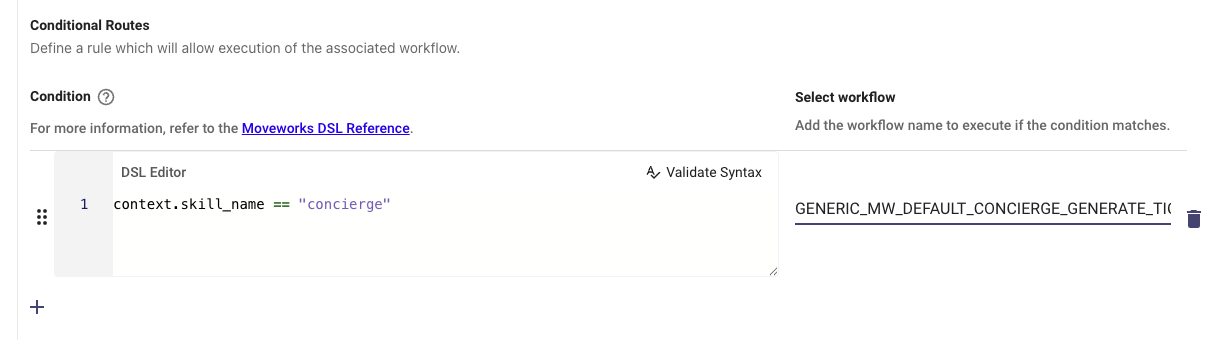

  • You may optionally add Conditional Routes to execute a workflow under specific conditions. These are evaluated in ascending order, and the route corresponding to the first satisfied condition is taken. Use the DSL editor to define your condition(s). See the DSL Reference for more information on writing your rule(s).

    • You have access to the following fields when building your conditions:
      • context.system_context.domain
      • context.system_context.ticket_id (not available for Generate Ticket Action)
      • context.system_context.requestor
      • context.skill_name
        • E.g. Account Access, Group Access, Channel Resolver, etc.
        • List of available values:
          • Account Accessaccess_account
          • Group Accessaccess_dl
          • Channel Resolver - channel
          • Concierge - concierge
          • Form - form
          • Native Approvals - native_approvals
          • Software Access - access_sw
          • Ticket Interception - ticket_interception
          • Triage - triage
          • Unspecified Skill (fallback for all other skills) - unspecified_skill
      • context.concierge_context.ticket_data
      • context.triage_context.field_updates
      • context.access_dl_context.approvable_entity

  • ADDITIONAL NOTES

    • Query Ticket
      • This should not be modified as the built-in behavior for querying tickets will work in most cases. If you believe that this needs to be modified, please contact Support or reach out to a Moveworks CSE to discuss your specific use-case.
