DSL Rule Scenarios for Plugins

Suggest Edits

This guide walks you through the DSL Rule Fields present in Setup and what attributes can be used to define them. If you are using Custom Attributes in your Rules, please refer to this guide on How to Define Custom Attributes.

Managing AI Assistant Access Rule

This is the most important DSL Rule Field in Moveworks which controls who in the Organisation has access to the AI Assistant in the Chat Interaction Platform. This control is found by navigating to User Identity > AI Assistant Access

Contexts Supported : User

Here are some rules which are commonly used across Moveworks :

Enabling or Disabling AI Assistant Access Globally

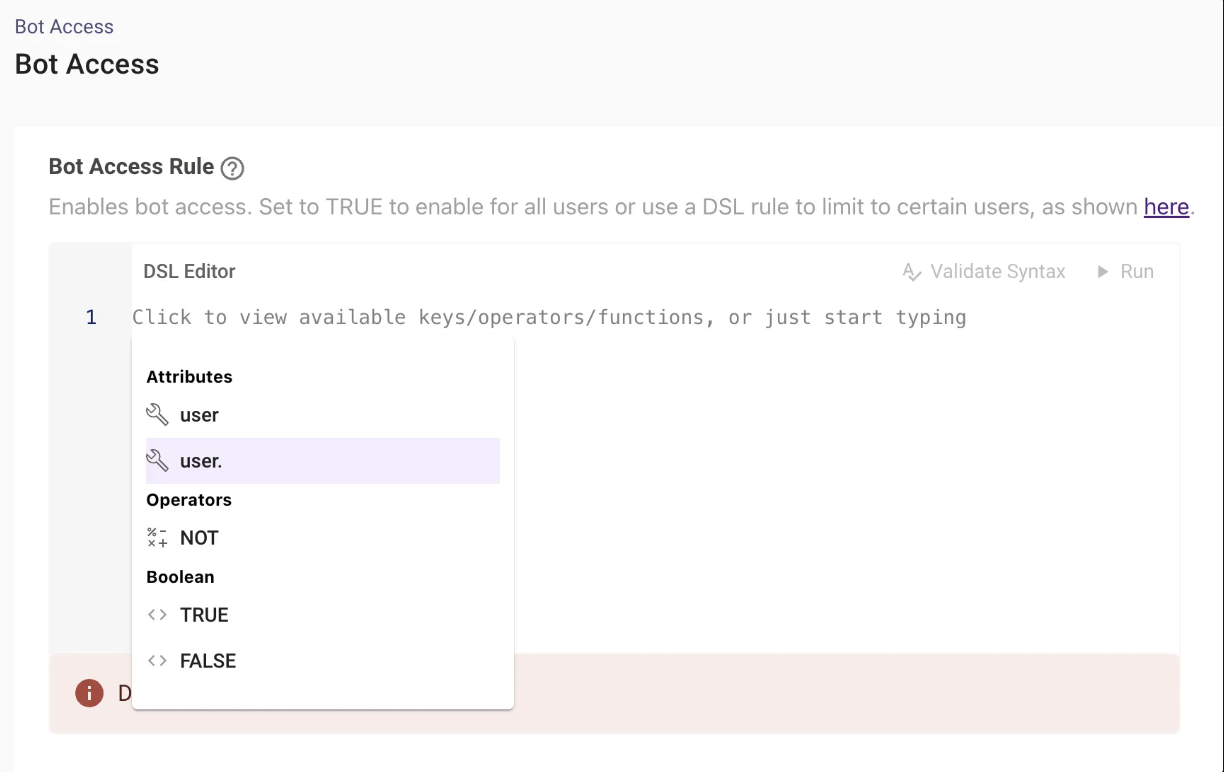

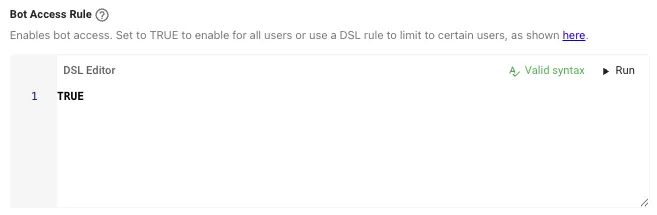

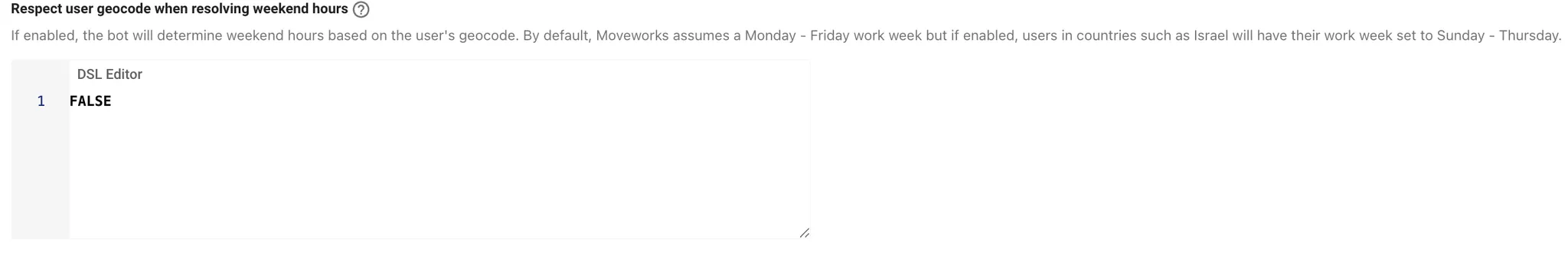

All DSL rules can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.
Enabling or Disabling AI Assistant access using User Attribute

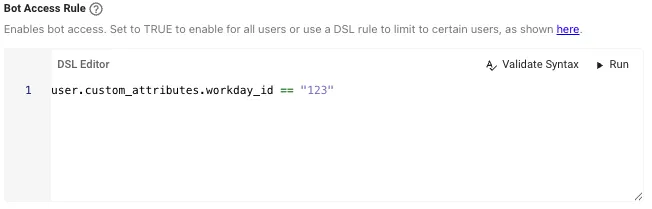

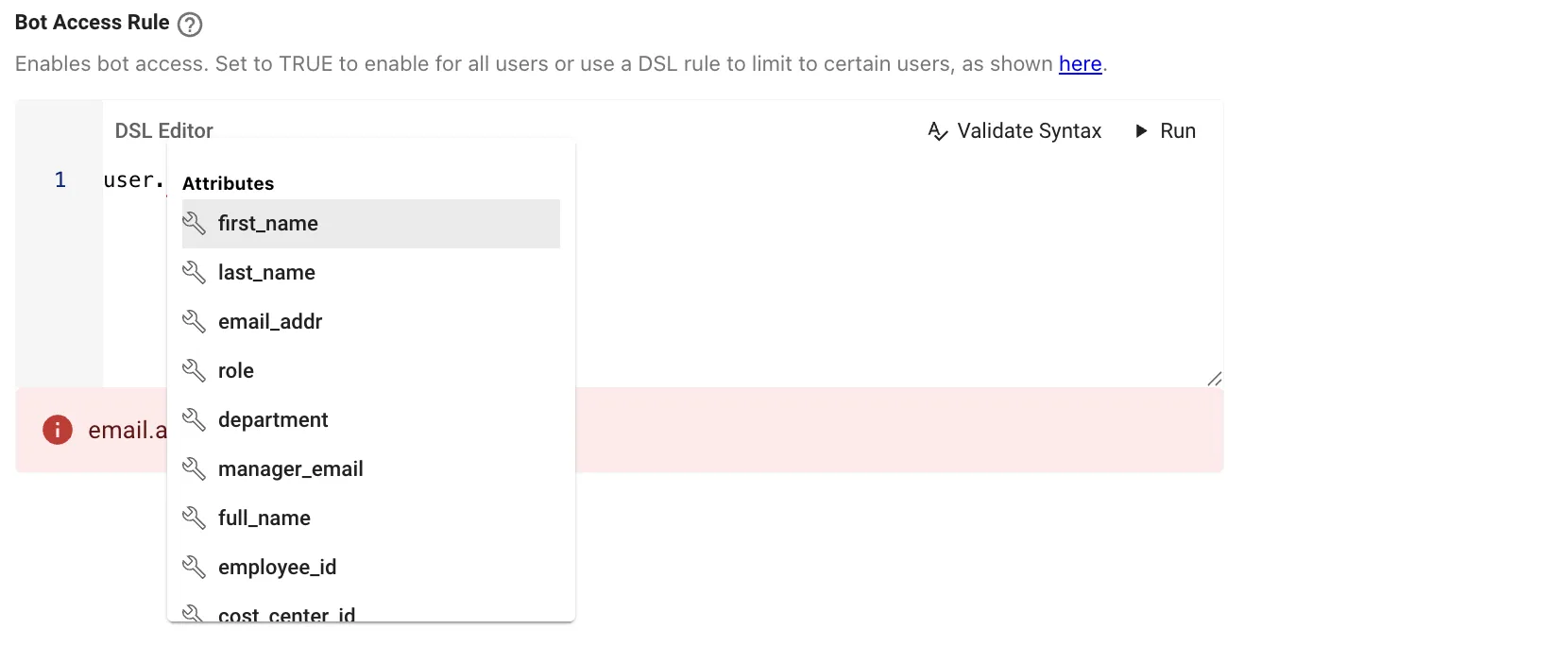

The AI Assistant Access DSL Rule field supports the User context which allows Rules to be written using the user attribute and its subfields which are ingested via Idenity Ingestion.

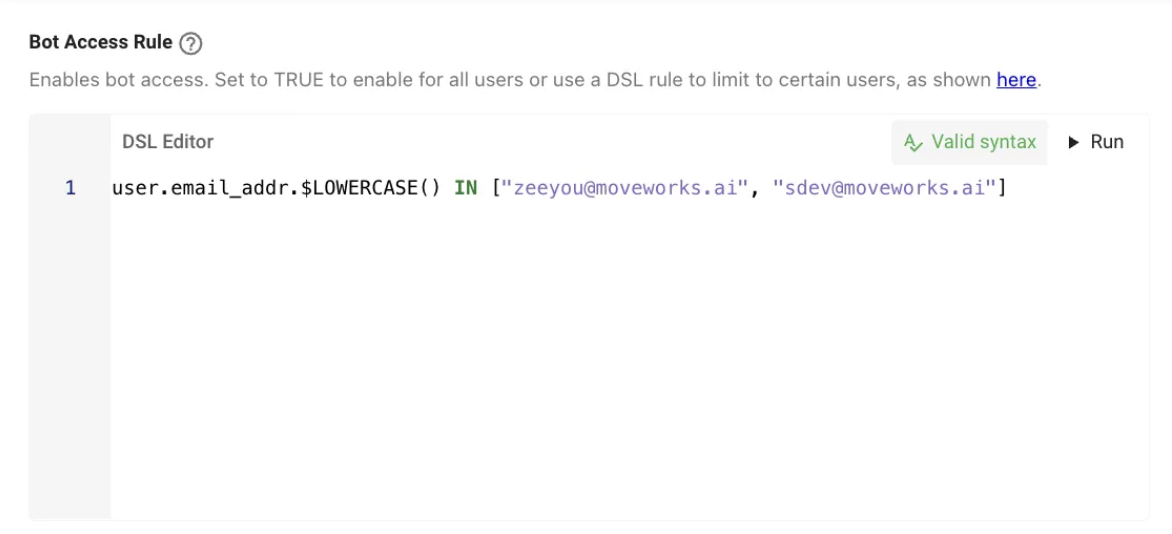

- DSL Rule to enable AI Assistant access based on User Email Address
```
user.email_addr.$LOWERCASE() IN ["<user_email>".$LOWERCASE(), "<user_email>".$LOWERCASE()]
```
- DSL Rule to Disable AI Assistant Access for certain users based on User Email Address
```
NOT (user.email_addr.$LOWERCASE() IN ["<user_email>".$LOWERCASE(), "<user_email>".$LOWERCASE()])
```

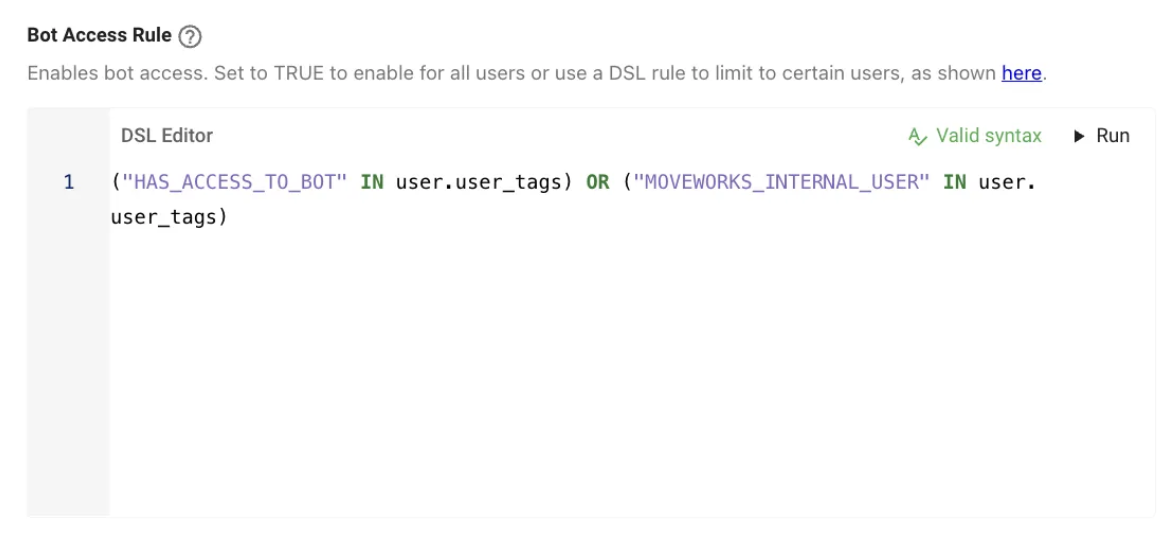

- DSL Rule to enable AI Assistant access based on User Tag
```
("HAS_ACCESS_TO_AI Assistant" IN user.user_tags) OR ("MOVEWORKS_INTERNAL_USER" IN user.user_tags)
```

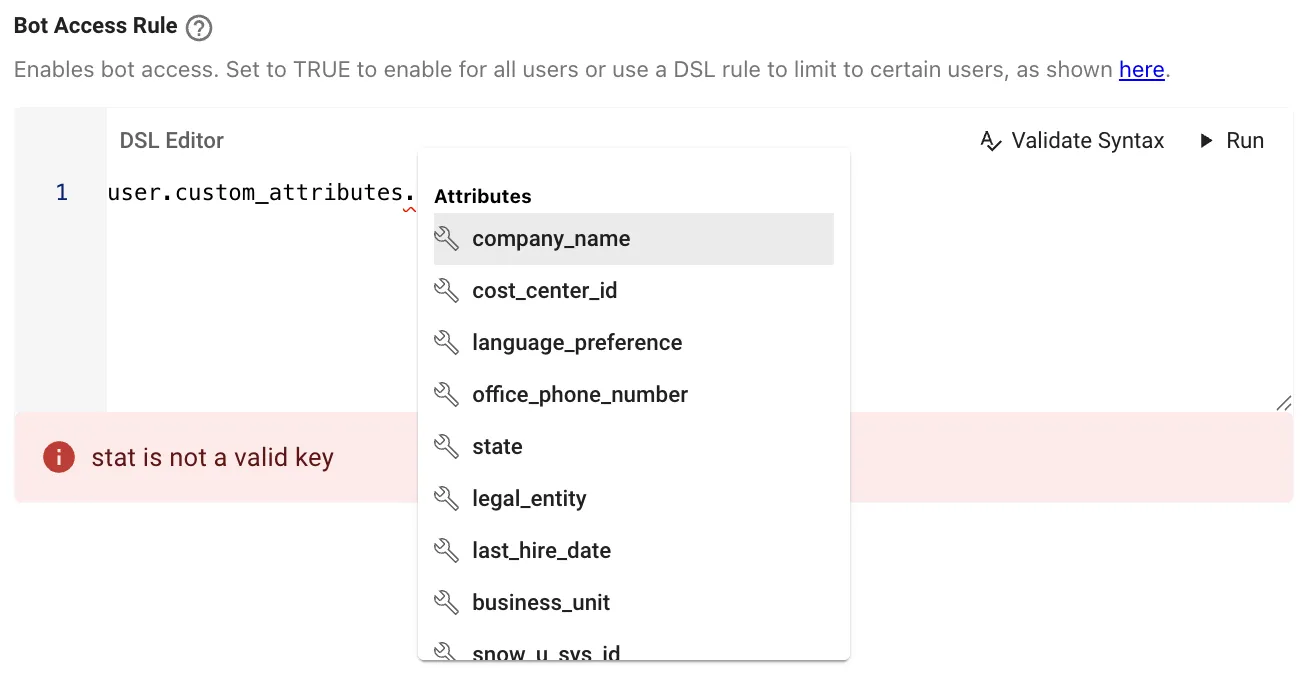

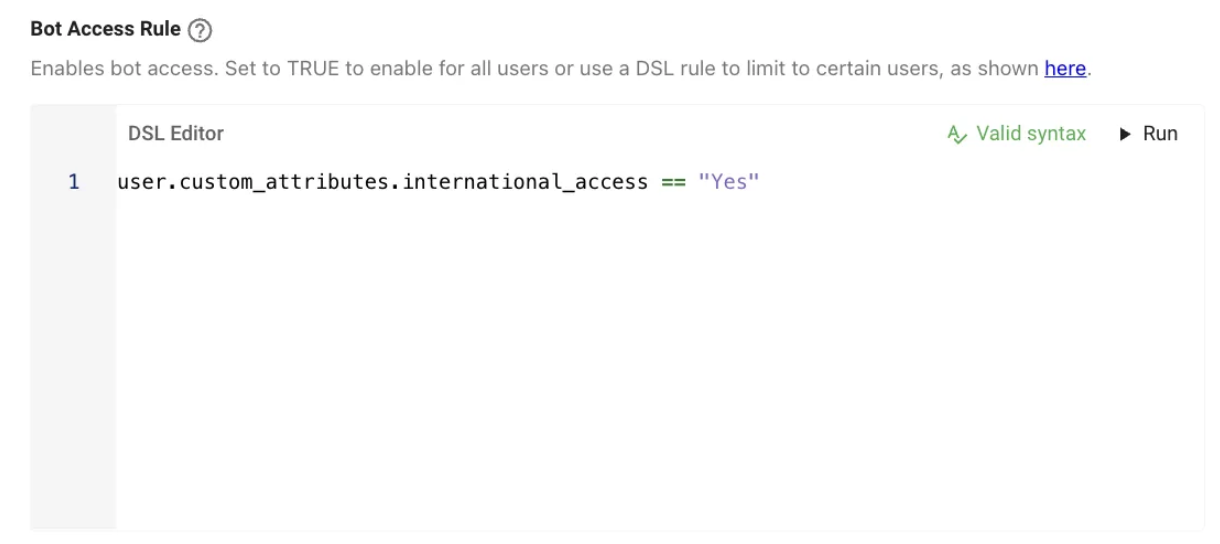

- DSL Rule to enable AI Assistant access based on Custom User Attribute
```
user.custom_attributes.unternational_access.$LOWERCASE() == "YES".$LOWERCASE()
```

Answers Plugin

DSL Rules can be leveraged in the Answers module to manage access to the plugin and control the filtering of Knowledge when being ingested. The Answers Plugin contorl can be found by navigating to Answers > Plugin Settings from the left navbar.

The Answers Plugin has the below DSL Fields which are important :

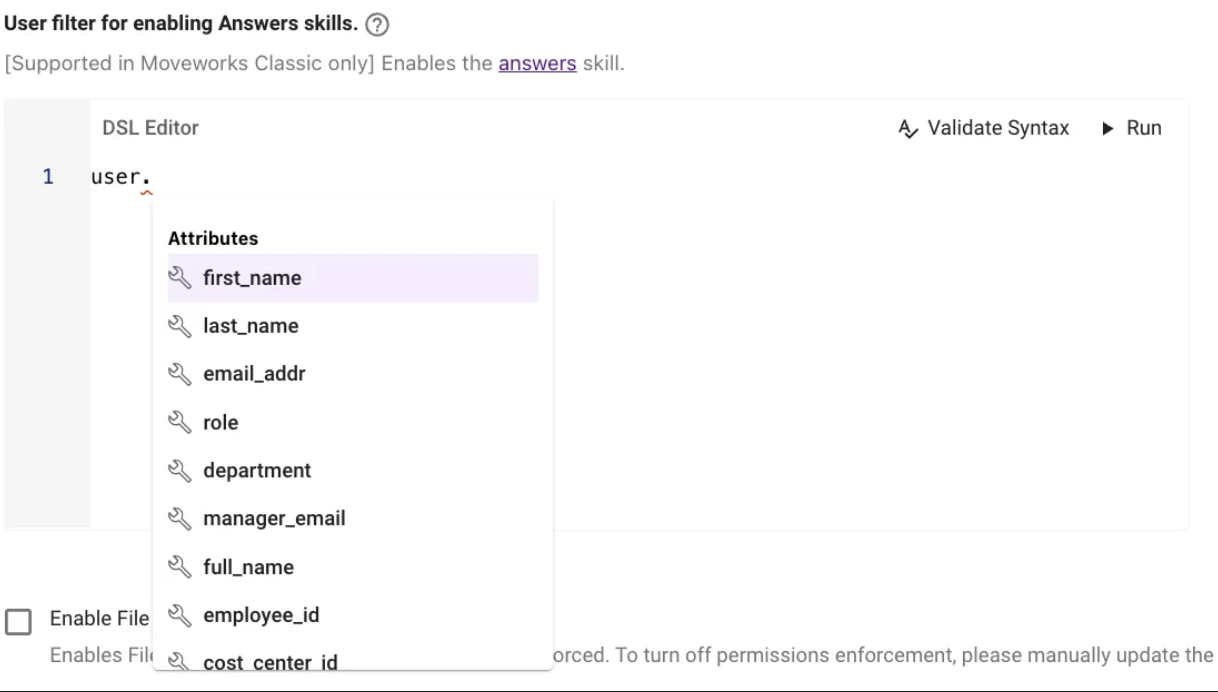

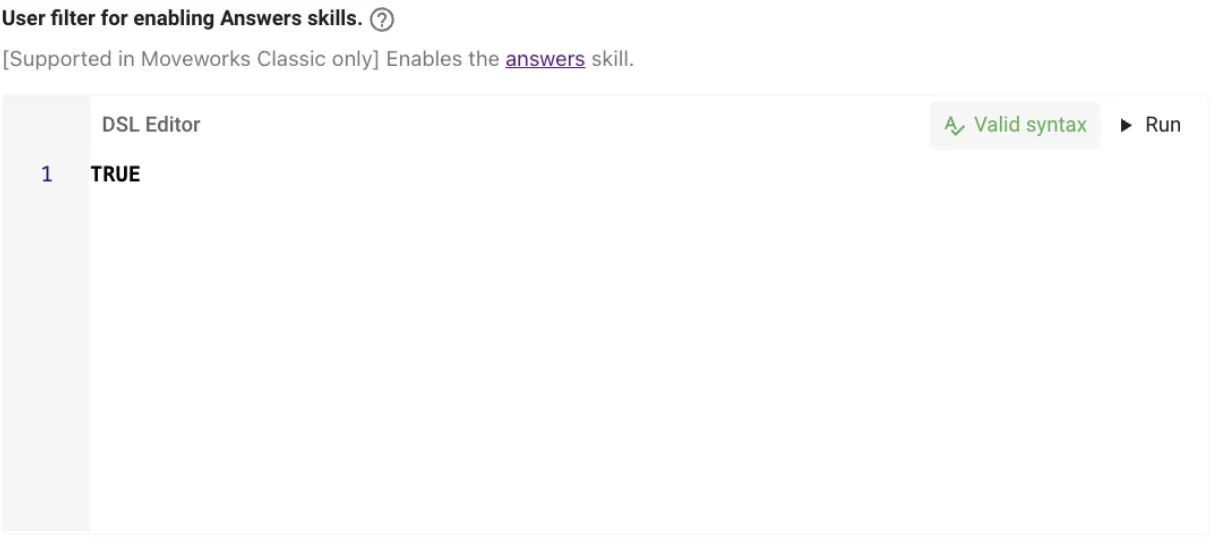

Enabling Answers Plugin

Global Controls

The Enable form finding can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

User Context Attribute

user.email_addr.$LOWERCASE() IN ["<user_email>".$LOWERCASE(), "<user_email>".$LOWERCASE()]

Custom User Attributes Context

user.custom_attributes.display_name.$LOWERCASE() IN ["MoveworksEmp".$LOWERCASE()]

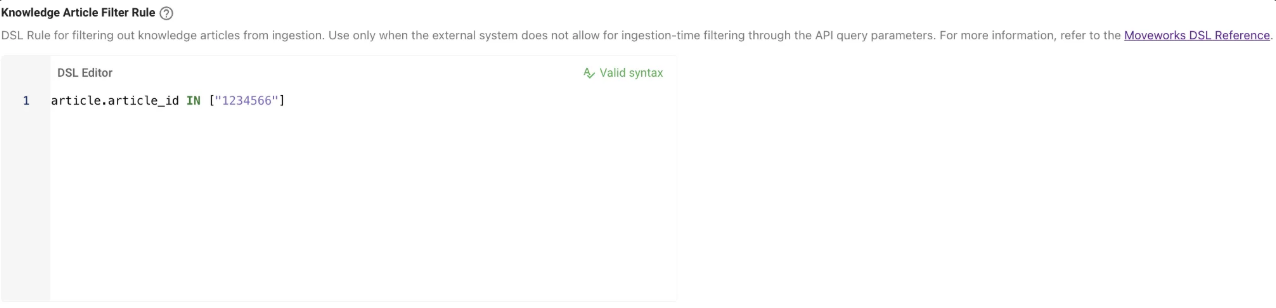

Knowledge Article Filter Rule

When ingesting knowledge articles from an external source, Moveworks provides the ability to write DSL rules to filter out which Articles should be ingested from the Base.

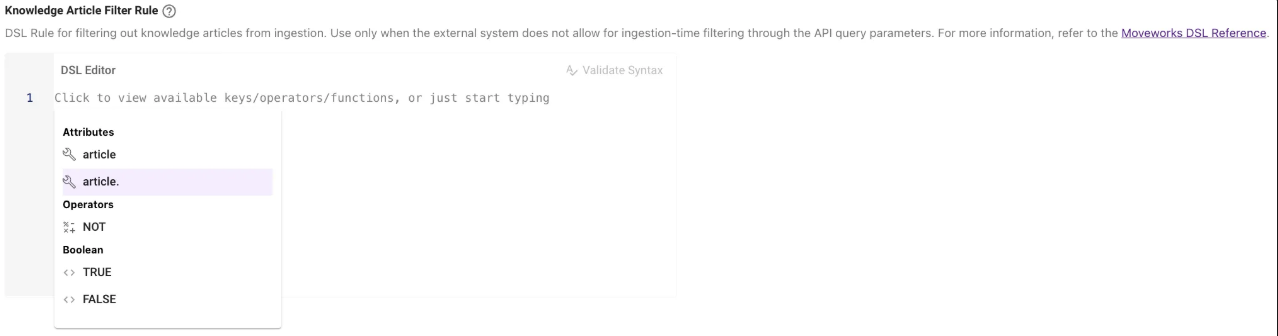

This DSL field can be found by navigating to Answers > Internal Knowledge > Config
This is possible since the DSL Rule Field here supports the article context.

Here are the rules which are commonly used with DSL :

Filter out Articles using Article ID
```
article.article_id IN ["12345"]
```

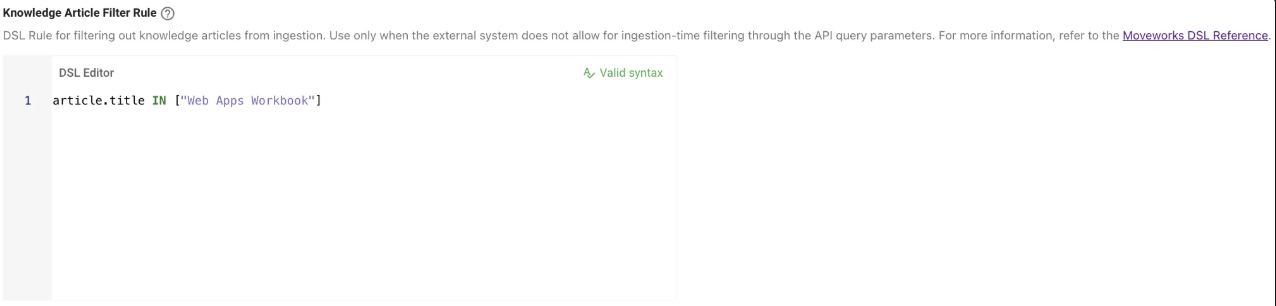

Filter out Articles using the Title
```
article.title IN ["Web Apps Workbook"]
```

Forms Plugin

DSL Rules can be leveraged in the Forms module to enable the plugin and control the behaviour of the forms within the AI Assistant with respect to how they are served. This control is found by navigating to Forms > Advanced Settings > Plugin Settings from the left navbar.

Here are Rules for the Forms plugin which are commonly used across Moveworks :

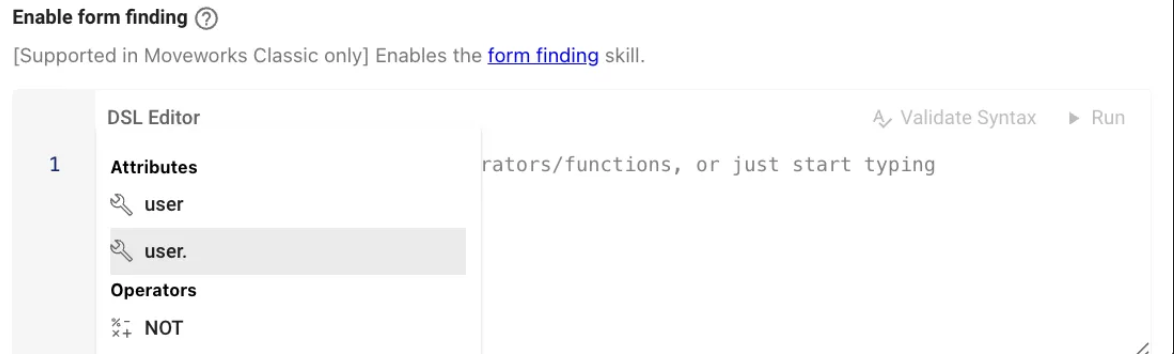

Form Finding Plugin

This control defines if the Forms Plugin will be considered by the AI Assistant to resolve the user utterance.

Global Controls

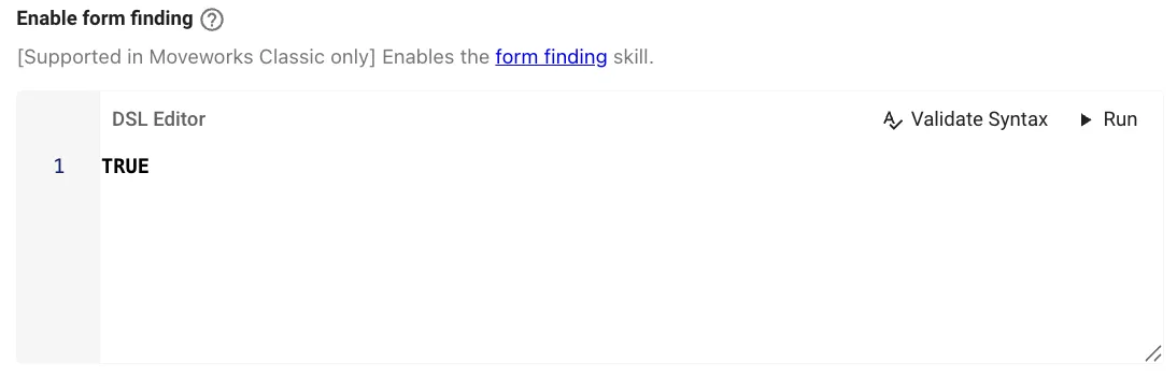

The Enable form finding can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

User Context Attribute

user.email_addr.$LOWERCASE() IN ["<user_email>".$LOWERCASE(), "<user_email>".$LOWERCASE()]

Ticket Interception with Forms

This Control defines if the Forms plugin will be used for Ticket resolution when they are intercepted by the AI Assistant. Here is a Document to learn more about Ticket Interception.

Global Controls

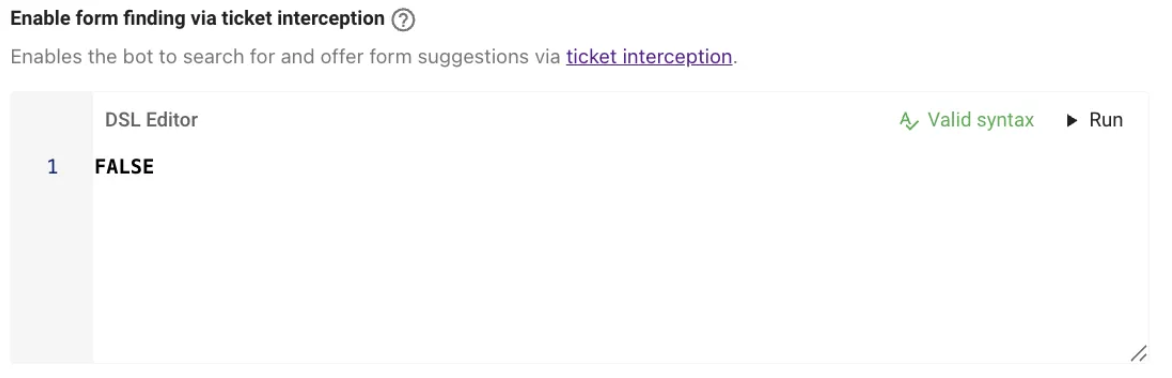

The Enable form finding via ticket interception can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

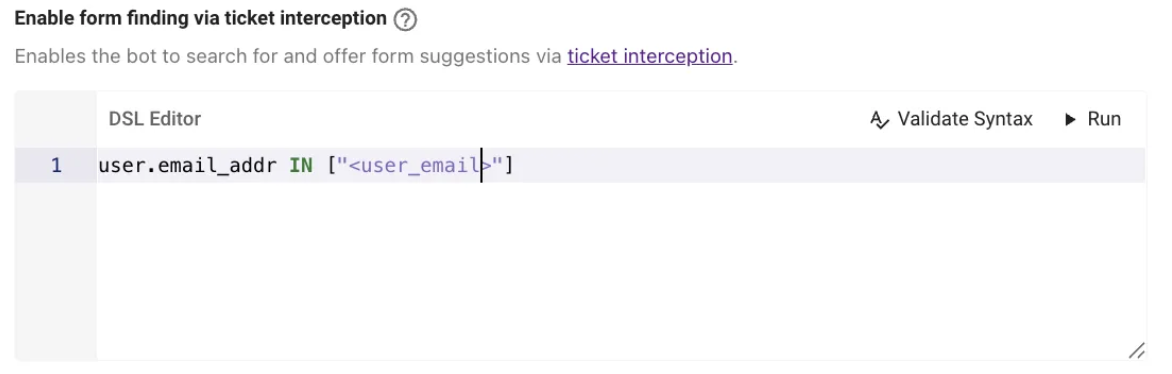

User Context Attribute

user.email_addr.$LOWERCASE() IN ["<user_email>".$LOWERCASE(), "<user_email>".$LOWERCASE()]

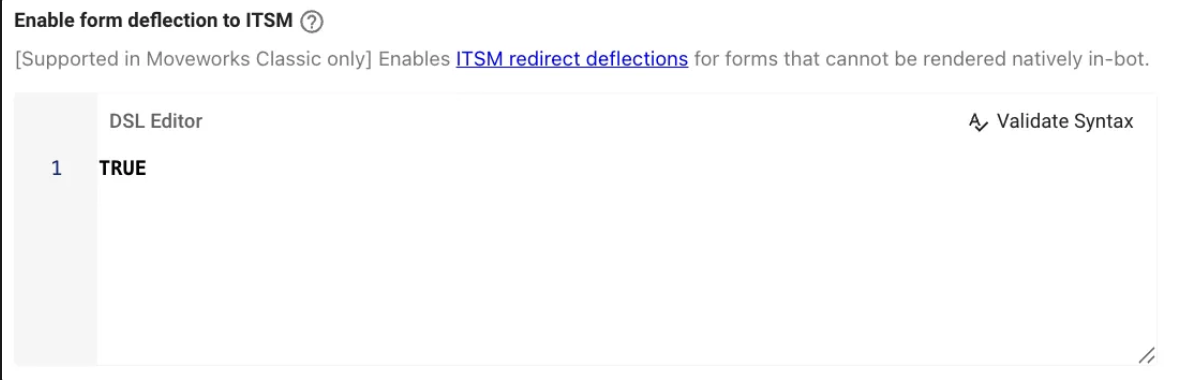

Deflecting Forms to External System

Setting this Plugin to TRUE will deflect all forms provided to users in the AI Assistant to the External Ticketing System so it can be filled in the Portal.

Global Controls

The Enable form deflection to ITSM can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

User Context Attribute

user.email_addr.$LOWERCASE() IN ["<user_email>".$LOWERCASE(), "<user_email>".$LOWERCASE()]

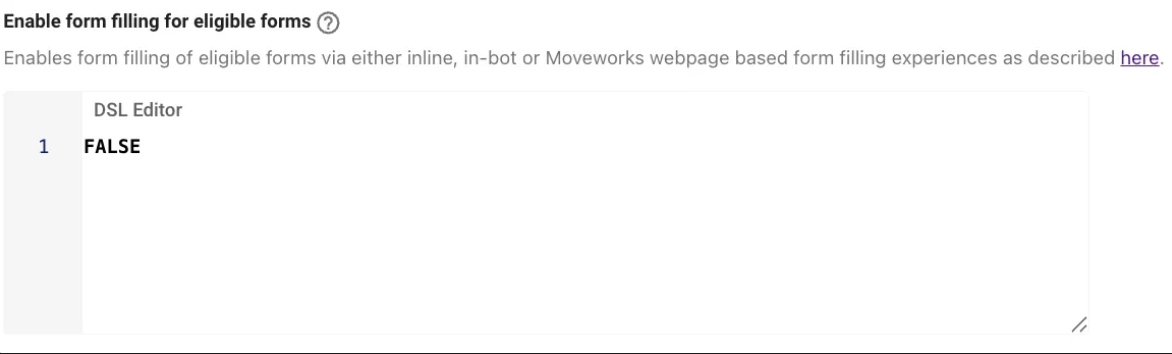

Form Filling for Eligible Form

Setting this Plugin to TRUE will enable forms which have been ingested to be fillable in the AI Assistant.

Global Controls

The Enable form filling for eligible forms can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

User Context Attribute

user.email_addr.$LOWERCASE() IN ["<user_email>".$LOWERCASE(), "<user_email>".$LOWERCASE()]

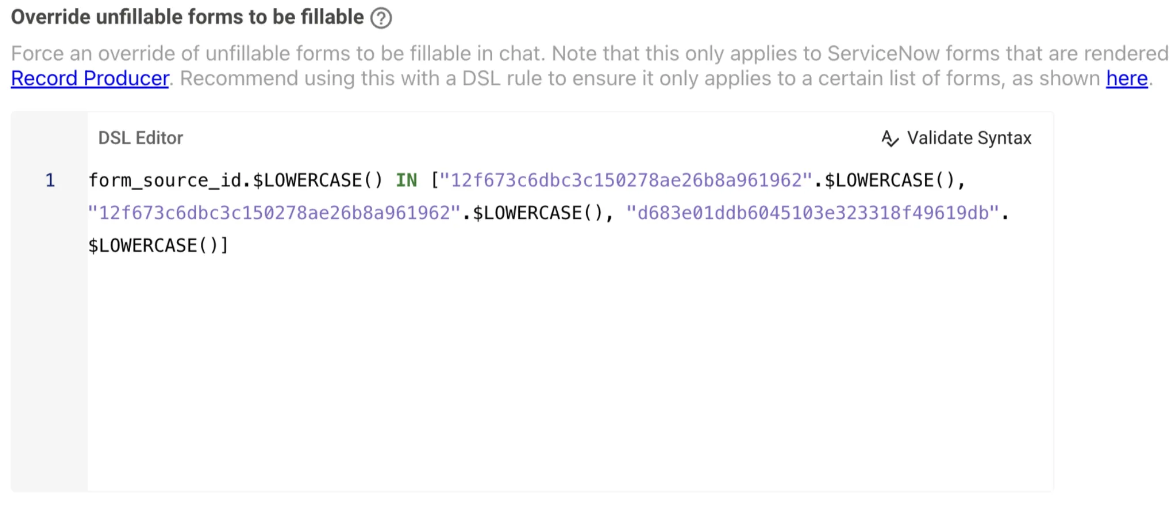

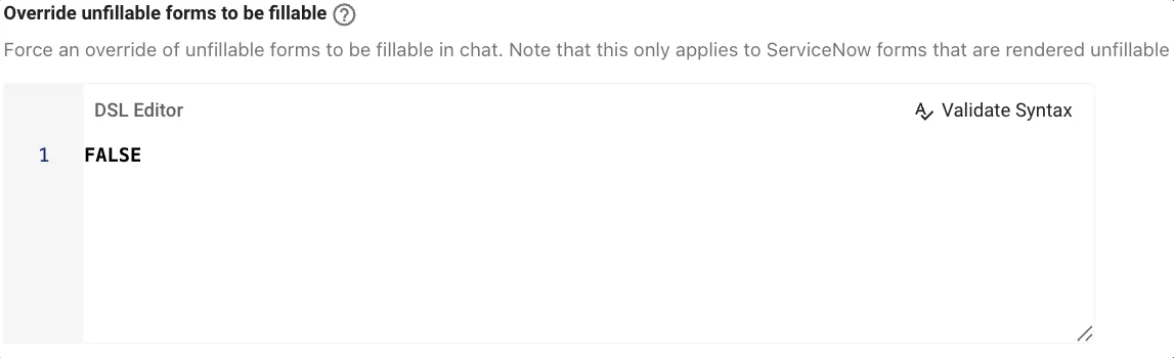

Override Unfillable Forms to be Fillable

Setting this plugin to TRUE will force unfillable forms to be fillable in the AI Assistant, This does not cover 100% of all ingested. Learn more about Writing Moveworks Fillable Forms here.

Global Controls
The Override unfillable forms to be fillable can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

User Context Attribute

user.email_addr.$LOWERCASE() IN ["<user_email>".$LOWERCASE(), "<user_email>".$LOWERCASE()]

Form Source ID Attribute

form_source_id.$LOWERCASE() IN ["12f673c6dbc3c150278ae26b8a961962".$LOWERCASE()]

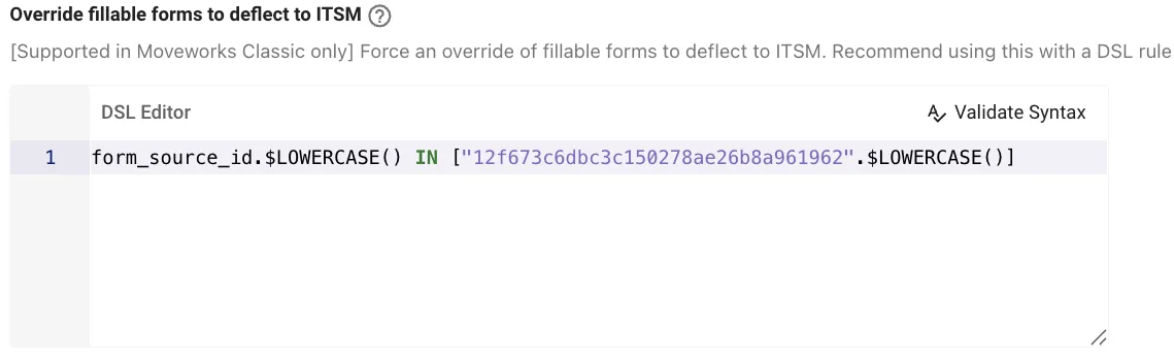

Override Fillable Forms to Deflect to External System

Setting this plugin to TRUE will override forms which are eligible to be filled in the AI Assistant to deflect the user to the External ITSM System instead.

Global Controls

The Override fillable forms to deflect to ITSM can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

User Context Attribute

user.email_addr.$LOWERCASE() IN ["<user_email>".$LOWERCASE(), "<user_email>".$LOWERCASE()]

Form Source ID Attribute

form_source_id.$LOWERCASE() IN ["12f673c6dbc3c150278ae26b8a961962".$LOWERCASE()]

People and Places Plugin

DSL rules are present for the People and Places Plugin which can be used to enable the plugin and control which users can leverage the Plugin within the AI Assistant. This control is found by navigating to Lookup > Skill Settings from the left navbar.

Here is how Rules are written for People and Places Plugin :

People and Places Plugin

Global Controls

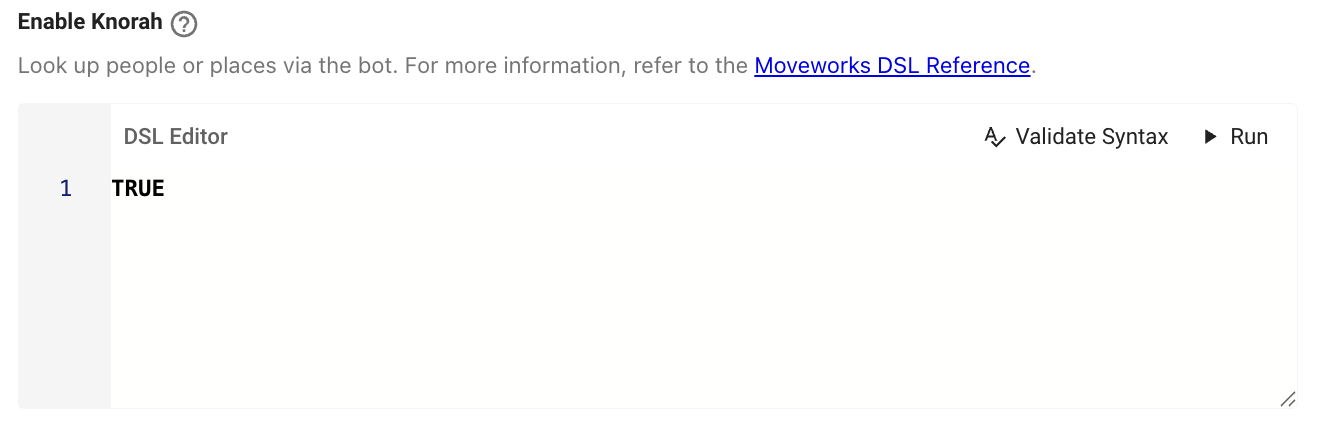

The Enable Knorah can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

User Context Attribute

user.email_addr.$LOWERCASE() IN ["<user_email>".$LOWERCASE(), "<user_email>".$LOWERCASE()]

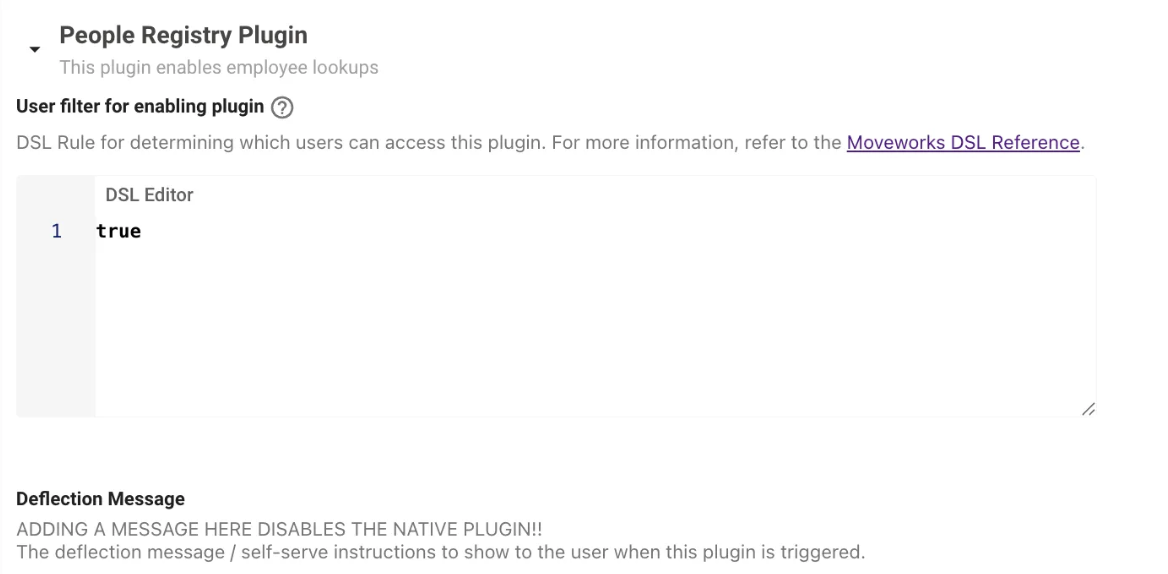

People Registry Plugin

This control can be found by navigating to AI Assistant Plugin Management > People Registry Plugin

Global Controls

The User filter for enabling plugin can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

User Context Attribute

user.email_addr.$LOWERCASE() IN ["<user_email>".$LOWERCASE(), "<user_email>".$LOWERCASE()]

Resource Permissions

After Enabling the Answers Plugin, Moveworks provides the ability to permission which users the Answers Plugin will se served to using Resource Permission.

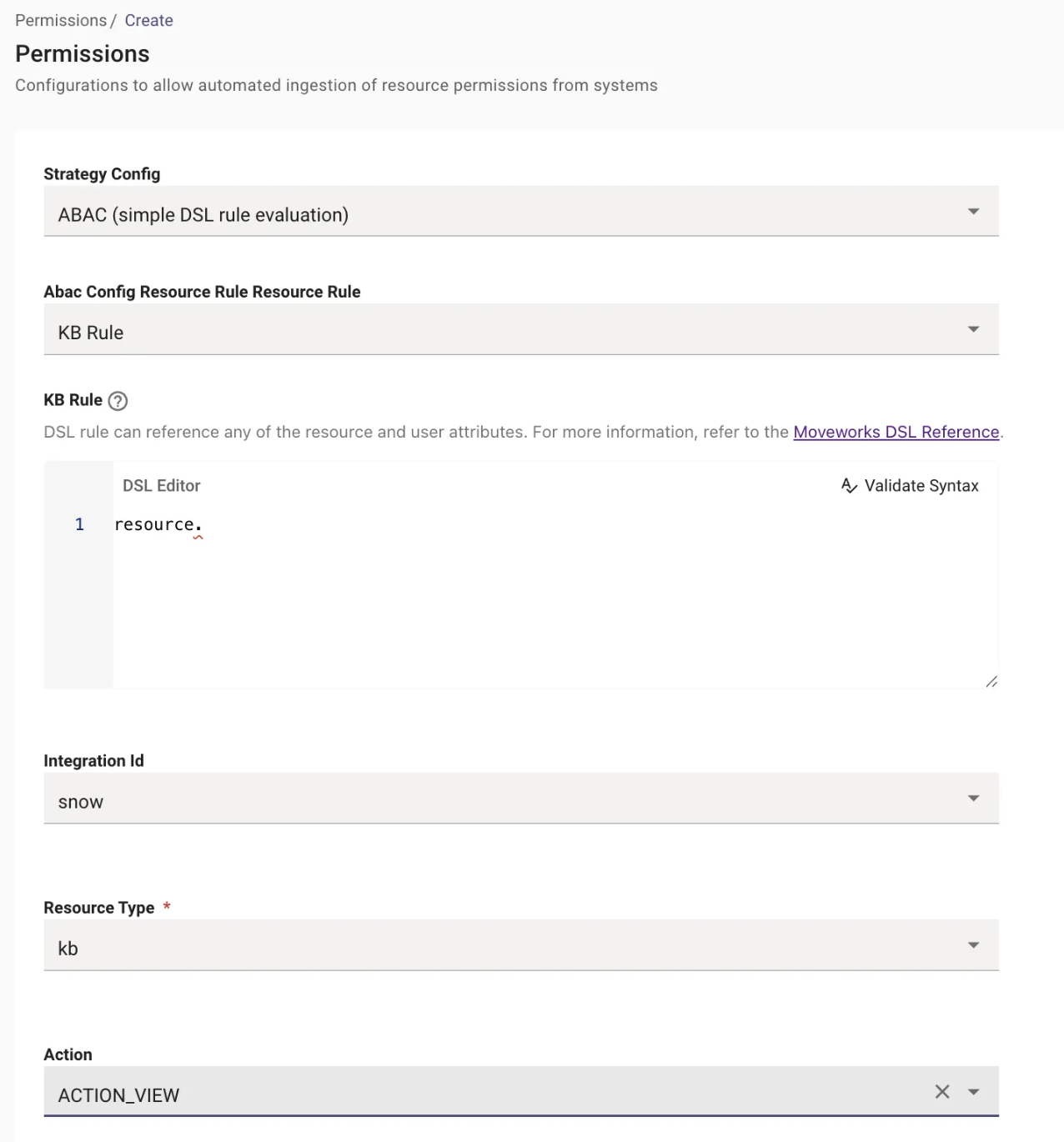

You can set this up by Navigating to Resource Permissions > Permission rules where you can either create a new configuration for permissioning access to plugins. Here is a Guide to learn more about Resource Permissions and how they work.

📘
There are 2 types of Permissioning Strategies which are supported ABAC and REBAC which you can learn more about here. The below examples will be common for AI Assistanth strategies.

Here are some examples of the Rules you can write using the below DSL Fields :

These Rules are written for the Resource Selected in the Resource Rule but this should be mapped to the Integration ID which is the connector that serves the respective resource.

We also have to select the same resource in the Resource Type field. The below example shows you the Resource Permission configuration for Knowledge.

Set any Resource Permission DSL value to TRUE to FALSE to globally enable or disable it.

User Context Attribute

Enable Access to selected Resource Type for Users

user.email_addr.$LOWERCASE() IN ["<user_email>".$LOWERCASE(), "<user_email>".$LOWERCASE()]

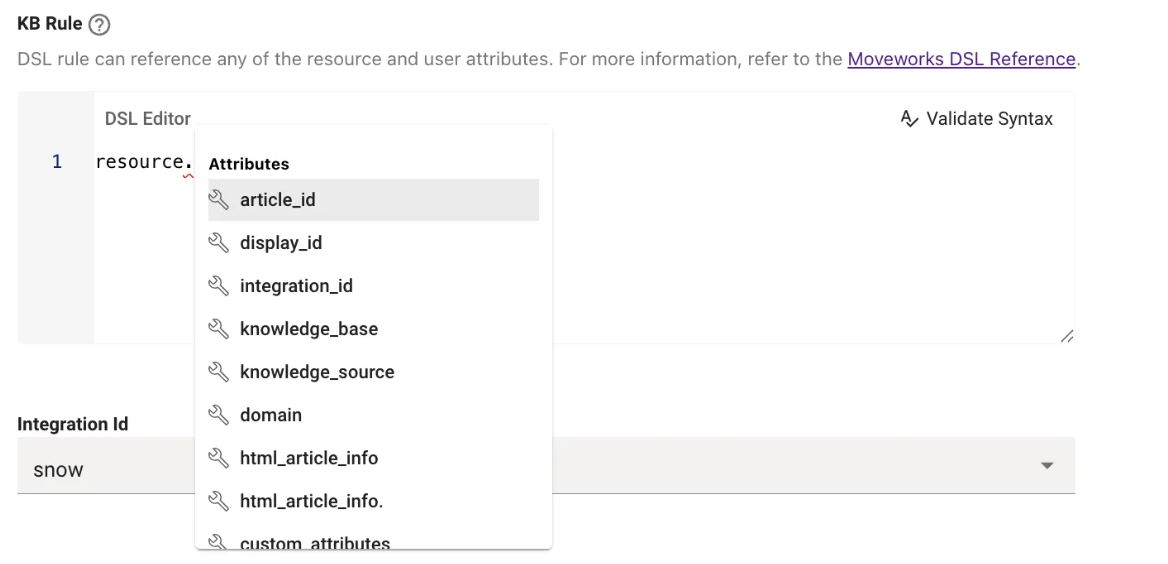

Resource Context Attribute

Permission Access to certain Resources for the selected Resource Type
- This is done using the resource context attribute which allows admins to permission only certain resources to be served.
```
resource.article_id IN ["1224366"]
```
- You can also use the combination of user & Resource context attributes
```
(resource.article_id IN ["1224366","67789"]) AND (user.email_addr IN ["[email protected]"])
```

Ticket Filters

DSL Rules in Ticket Filters can be leveraged to apply standard or skill-specific control rules to exclude or include tickets accessed by Moveworks. These filters can be found by navigating to Ticketing > Ticketing Settings > Ticket Filters which are divided into the below sections.

Here are the Rules can write using the below DSL Fields in the Ticketing Filter configuration :

Standard Ticket Filter

These DSL fields have the Ticket context attribute exposed which will be leveraged to create the DSL rule for the ticket filters.

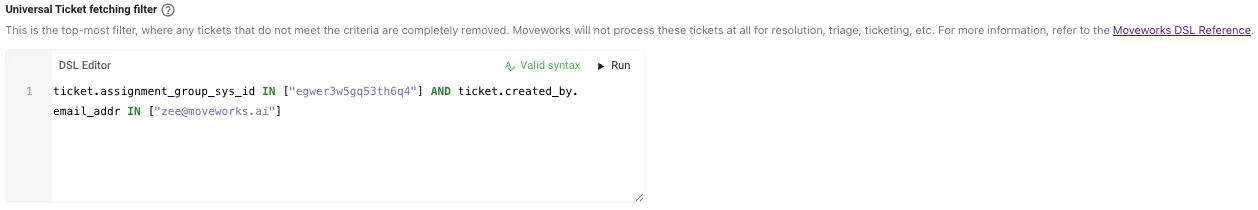

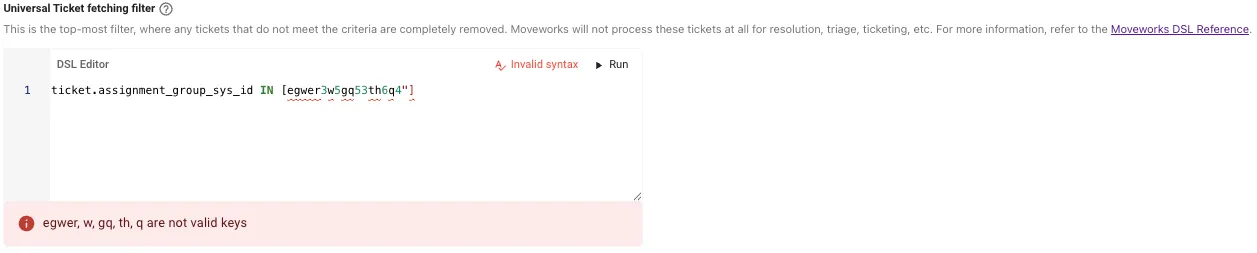

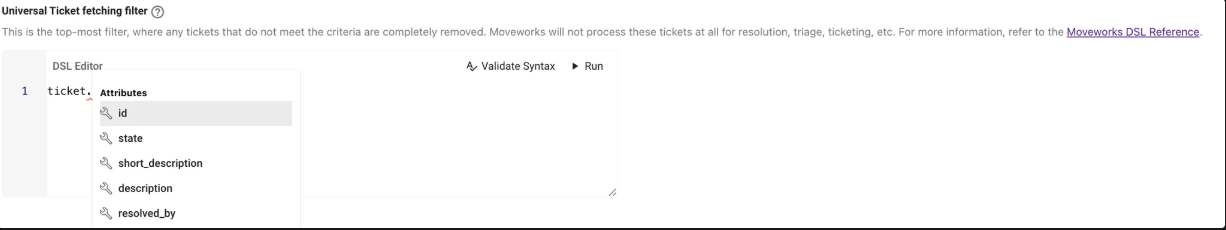

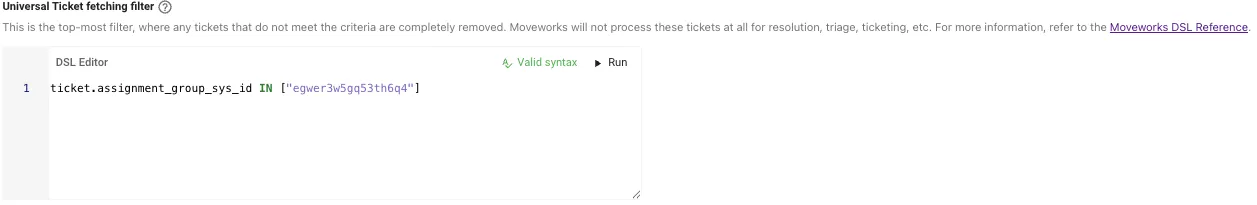

Universal Ticket fetching filter

This is the Highest/Top level filter, where any tickets that do not meet the criteria are completely ignored. Moveworks will not process those tickets at all for resolution or action via any Plugin. For more information, refer to the Moveworks DSL Reference.

Filtering out tickets based on ticket attributes like state,assignment_group,category etc

ticket.assignment_group IN ["dcboauwe02384yr938h"]
ticket.state IN ["Open", "In-Progress"]

Filtering out tickets using user attributes which are referenced via ticket attribute

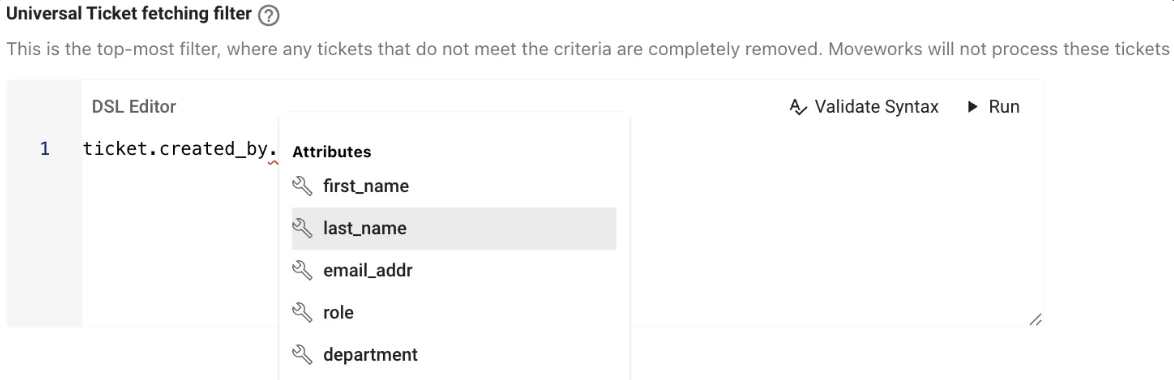

This is made possible by using the attribute created_by which allows us to access the user context attributes.
```
ticket.created_by.email_addr IN ["<user_email>"]
```
Filtering out Tickets using Custom Ticket Attributes

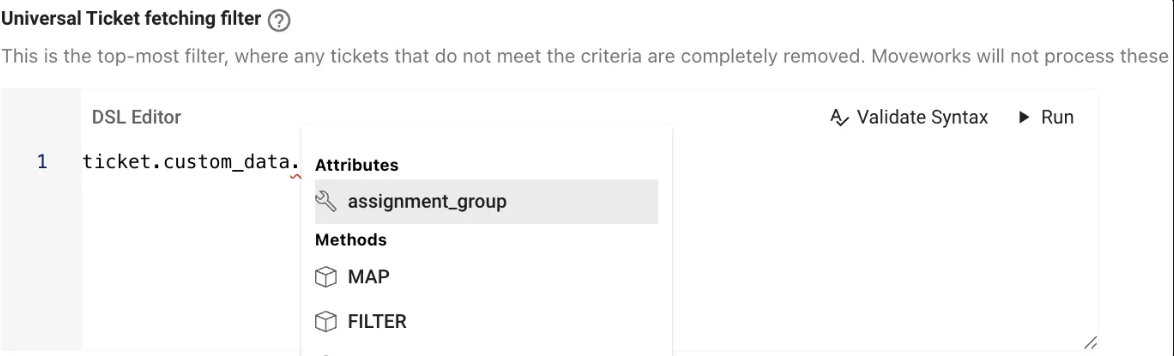

The Ticketing attribute context has custom attributes which can be leverages as well. These attributes are different from the defaults which Moveworks supports Out of the Box. Follow this Guide to learn How To create and leverage Custom Attributes.
```
ticket.custom_data.assignment_group IN ["wfhuq0rf8343412309"]
```

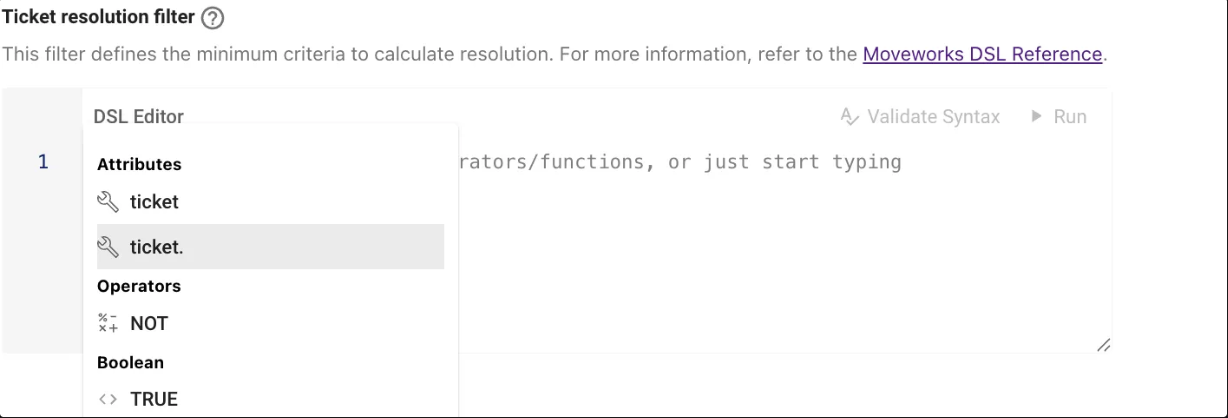

Ticket Resolution Filter

This filter defines the minimum criteria required for a Ticket which is polled, in order to be considered by the AI Assistant for a Resolution Analysis. For more information, refer to the Moveworks DSL Reference.

Filtering out ticket resolution based on ticket attributes like state,assignment_group,category etc
```
ticket.assignment_group IN ["dcboauwe02384yr938h"]
ticket.state IN ["Open", "In-Progress"]
```
Filtering out tickets using user attributes which are referenced via ticket attribute
This is made possible by using the attribute created_by which allows us to access the user context attributes.
```
ticket.created_by.email_addr IN ["<user_email>"]
```
Filtering out Tickets using Custom Ticket Attributes
The Ticketing attribute context has custom attributes which can be leverages as well. These attributes are different from the defaults which Moveworks supports Out of the Box. Follow this Guide to learn How To create and leverage Custom Attributes.
```
ticket.custom_data.assignment_group IN ["wfhuq0rf8343412309"]
```

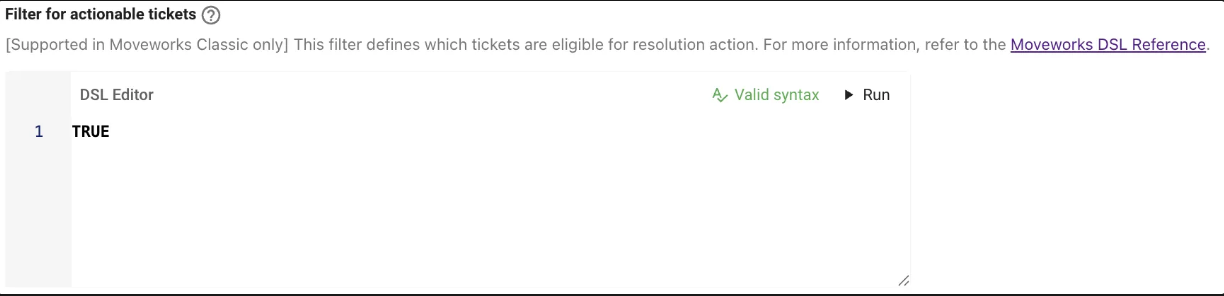

Filter for actionable tickets

This filter defines which tickets are eligible for action from Moveworks after they have been analysed for Resolution. For more information, refer to the Moveworks DSL Reference.

Filtering out ticket based on ticket attributes like state,assignment_group,category etc

ticket.assignment_group IN ["dcboauwe02384yr938h"]
ticket.state IN ["Open", "In-Progress"]
NOT (ticket.contact_type.$LOWERCASE() IN ["Phone".$LOWERCASE(), "Chat".$LOWERCASE()])

Filtering out tickets using user attributes which are referenced via ticket attribute
This is made possible by using the attribute created_by which allows us to access the user context attributes.
```
ticket.created_by.email_addr IN ["<user_email>"]
```
Filtering out Tickets using Custom Ticket Attributes
The Ticketing attribute context has custom attributes which can be leverages as well. These attributes are different from the defaults which Moveworks supports Out of the Box. Follow this Guide to learn How To create and leverage Custom Attributes.
```
ticket.custom_data.assignment_group IN ["wfhuq0rf8343412309"]
```

Skill Specific Ticket Filter

These DSL fields have the Ticket context attribute exposed which will be leveraged to create the DSL rule for the skill specific ticket filters.

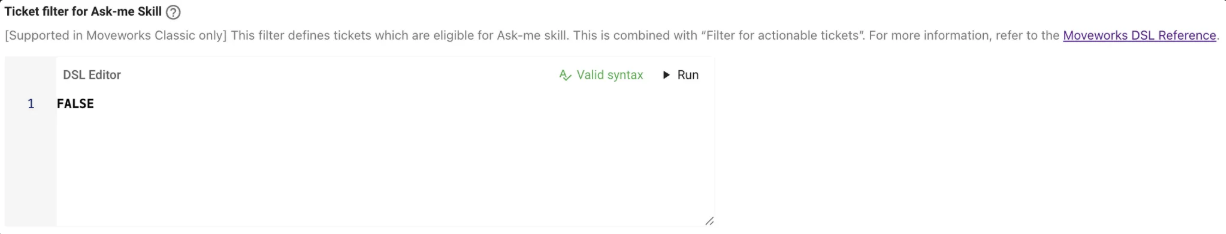

Ask-me Skill (Answers Plugin)

This filter defines tickets which are eligible to be acted upon by the Answers plugin. This is combined with “Filter for actionable tickets” which the ticket needs to pass in order to evaluate in this DSL Rule. For more information, refer to the Moveworks DSL Reference.

Filtering out ticket based on ticket attributes like state,assignment_group,category etc

ticket.assignment_group IN ["dcboauwe02384yr938h"]
ticket.state IN ["Open", "In-Progress"]
NOT (ticket.contact_type.$LOWERCASE() IN ["Phone".$LOWERCASE(), "Chat".$LOWERCASE()])

Filtering out tickets using user attributes which are referenced via ticket attribute
This is made possible by using the attribute created_by which allows us to access the user context attributes.
```
ticket.created_by.email_addr IN ["<user_email>"]
```
Filtering out Tickets using Custom Ticket Attributes
The Ticketing attribute context has custom attributes which can be leverages as well. These attributes are different from the defaults which Moveworks supports Out of the Box. Follow this Guide to learn How To create and leverage Custom Attributes.
```
ticket.custom_data.assignment_group IN ["wfhuq0rf8343412309"]
```

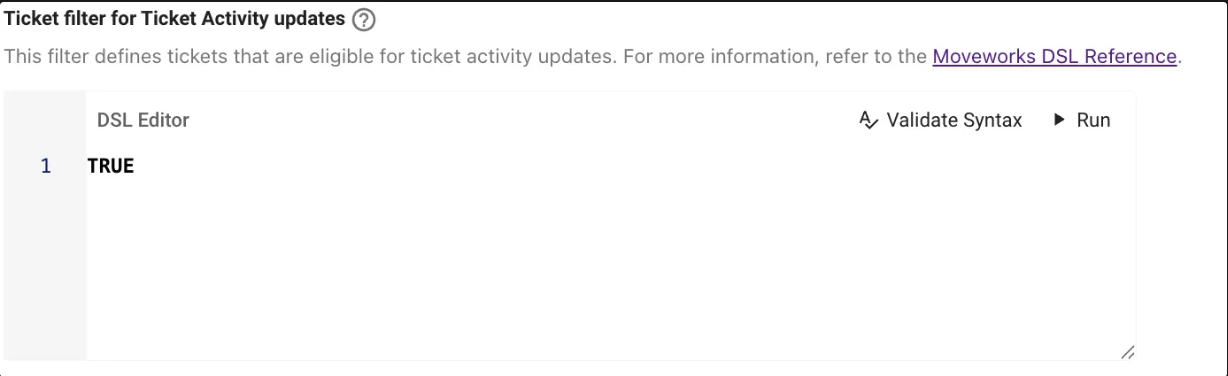

Ticket Activity updates

This filter defines tickets that are eligible for Updates based on Ticket Activity. These are cases when a ticket has updates based on state change or addition of comments which the user will be notified about within the AI Assistant. For more information, refer to the Moveworks DSL Reference.

Filtering out ticket based on ticket attributes like state,assignment_group,category etc

ticket.assignment_group IN ["dcboauwe02384yr938h"]
ticket.state IN ["Open", "In-Progress"]
NOT (ticket.contact_type.$LOWERCASE() IN ["Phone".$LOWERCASE(), "Chat".$LOWERCASE()])

Filtering out tickets using user attributes which are referenced via ticket attribute
This is made possible by using the attribute created_by which allows us to access the user context attributes.
```
ticket.created_by.email_addr IN ["<user_email>"]
```
Filtering out Tickets using Custom Ticket Attributes
The Ticketing attribute context has custom attributes which can be leverages as well. These attributes are different from the defaults which Moveworks supports Out of the Box. Follow this Guide to learn How To create and leverage Custom Attributes.
```
ticket.custom_data.assignment_group IN ["wfhuq0rf8343412309"]
```

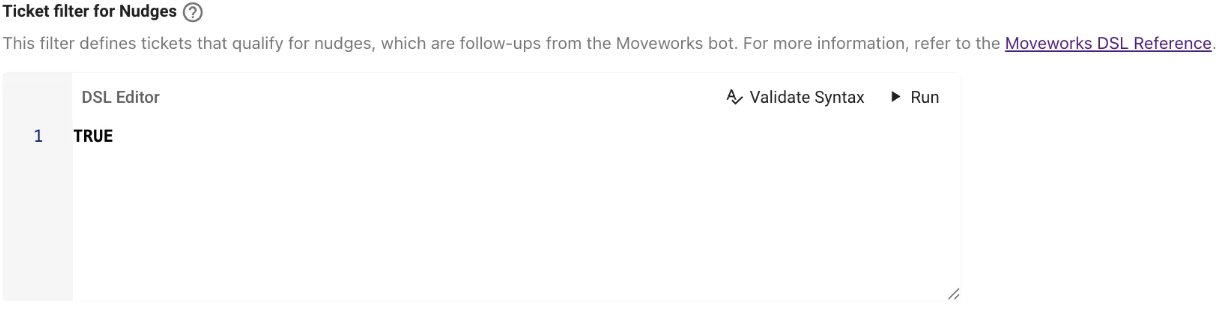

Ticket Filter for Nudges

This filter defines tickets that qualify for nudges, which are follow-ups from the Moveworks AI Assistant when the ticket has not been updated or acted upon in more than x days. For more information, refer to the Moveworks DSL Reference.

Filtering out ticket based on ticket attributes like state,assignment_group,category etc

ticket.assignment_group IN ["dcboauwe02384yr938h"]
ticket.state IN ["Open", "In-Progress"]
NOT (ticket.contact_type.$LOWERCASE() IN ["Phone".$LOWERCASE(), "Chat".$LOWERCASE()])

Filtering out tickets using user attributes which are referenced via ticket attribute
This is made possible by using the attribute created_by which allows us to access the user context attributes.
```
ticket.created_by.email_addr IN ["<user_email>"]
```
Filtering out Tickets using Custom Ticket Attributes
The Ticketing attribute context has custom attributes which can be leverages as well. These attributes are different from the defaults which Moveworks supports Out of the Box. Follow this Guide to learn How To create and leverage Custom Attributes.
```
ticket.custom_data.assignment_group IN ["wfhuq0rf8343412309"]
```

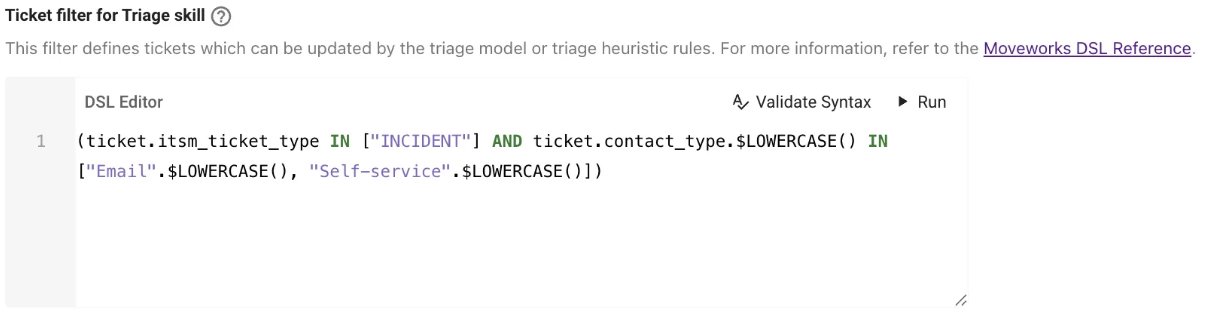

Ticket Filter for Triage

This filter defines tickets which can be updated by the triage model or static rules on how triage should behave for certain conditions. For more information, refer to the Moveworks DSL Reference.

Filtering out ticket based on ticket attributes like state,assignment_group,category etc

(ticket.itsm_ticket_type IN ["INCIDENT"] AND ticket.contact_type.$LOWERCASE() IN ["Email".$LOWERCASE(), "Self-service".$LOWERCASE()])

ticket.assignment_group IN ["dcboauwe02384yr938h"]

Filtering out tickets using user attributes which are referenced via ticket attribute
This is made possible by using the attribute created_by which allows us to access the user context attributes.
```
ticket.created_by.email_addr IN ["<user_email>"]
```
Filtering out Tickets using Custom Ticket Attributes
The Ticketing attribute context has custom attributes which can be leverages as well. These attributes are different from the defaults which Moveworks supports Out of the Box. Follow this Guide to learn How To create and leverage Custom Attributes.
```
ticket.custom_data.assignment_group IN ["wfhuq0rf8343412309"]
```

Notifications Settings

DSL Rules can be used to manage and control ticket Notifications Settings for your users based on ticket updates. These filters can be found by navigating to Ticketing > Concierge Settings > Notification Filters which are divided into the below sections.

Here are the Rules you can write using the below DSL Fields in the Notification Settings configuration :

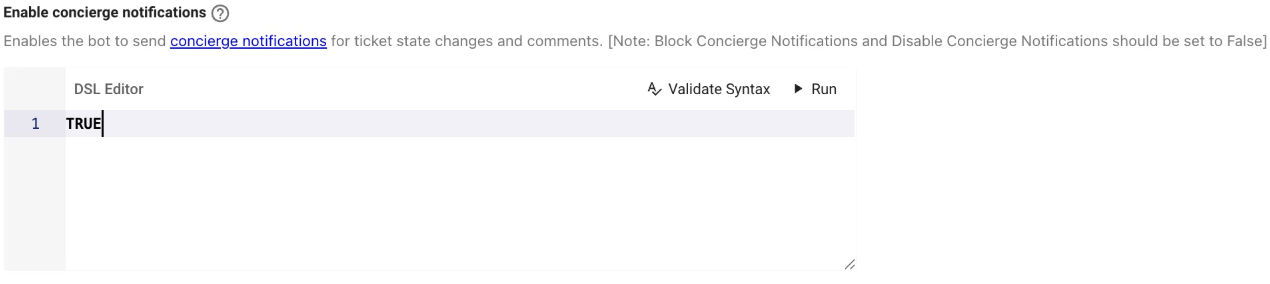

Enable Concierge Notifications

Enables the AI Assistant to send concierge notifications for ticket state changes and comments. Note: In order to disable Notifications Block Concierge Notifications and Disable Concierge Notifications should be set to False

Global Controls
The Enable Concierge Notifications can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

User Context Attribute

user.email_addr.$LOWERCASE() IN ["<user_email>".$LOWERCASE(), "<user_email>".$LOWERCASE()]

Custom Attributes under User Context

user.custom_attributes.cost_center_id IN ["1234"]

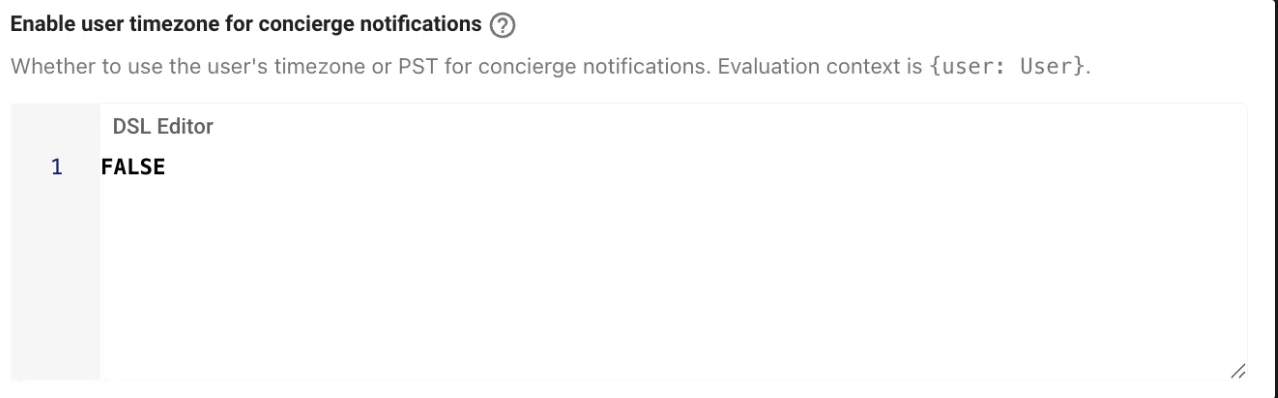

Enable user timezone for concierge notifications

This control allows you to leverage the user's timezone which has been ingested in order to send the concierge notifications in their local timezone

Global Controls
The Enable user timezone for concierge notifications can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

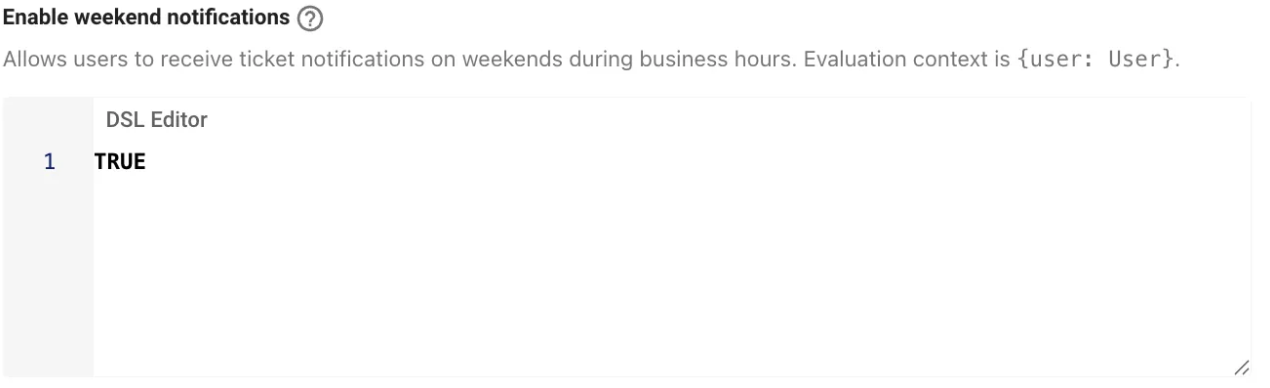

Enable weekend notifications

Allows users to receive ticket notifications on weekends during business hours.

Global Controls
The Enable weekend notifications can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

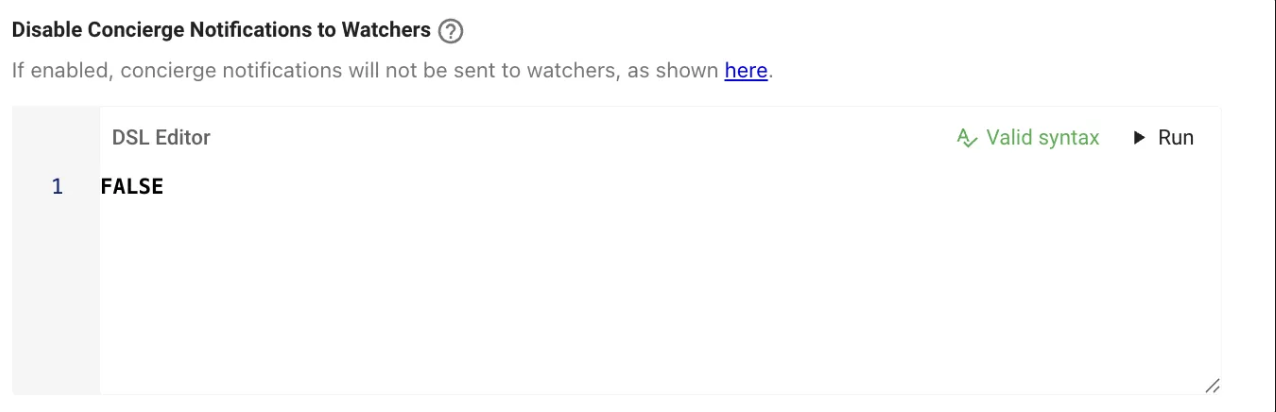

Disable Concierge Notifications to Watchers

If this control is enabled, concierge notifications will not be sent to watchers on tickets. The watcher data will be queried from the ticket while being polled.

Global Controls
The Disable Concierge Notifications to Watchers can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

User Context Attribute

user.email_addr.$LOWERCASE() IN ["<user_email>".$LOWERCASE(), "<user_email>".$LOWERCASE()]

Custom Attributes under User Context

user.custom_attributes.cost_center_id IN ["1234"]

Respect user geocode when resolving weekend hours

If enabled, the AI Assistant will determine weekend hours based on the user's geocode Information. By default, Moveworks assumes a Monday - Friday work week but if enabled, users in countries such as Israel will have their work week set to Sunday - Thursday.

Global Controls
The Respect user geocode when resolving weekend hours can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

Ticket Actions

DSL Rules can be used to control and manage functionalities while creating/ filing, updating or viewing tickets. These filters can be found by navigating to Ticketing > Concierge Settings > Ticket Actions which are divided into the below sections.

Here are the Rules you can write using the below DSL Fields in the Notification Settings configuration :

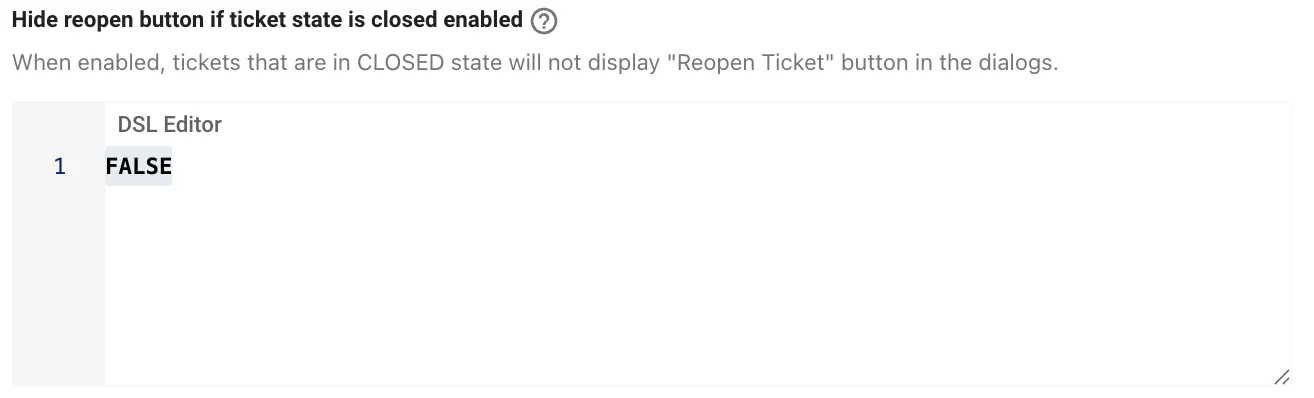

Hide reopen button if ticket state is closed

When enabled, tickets that are in CLOSED state will not display "Reopen Ticket" button in the dialogs in the AI Assistant.

Global Controls
The Hide reopen button if ticket state is closed can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

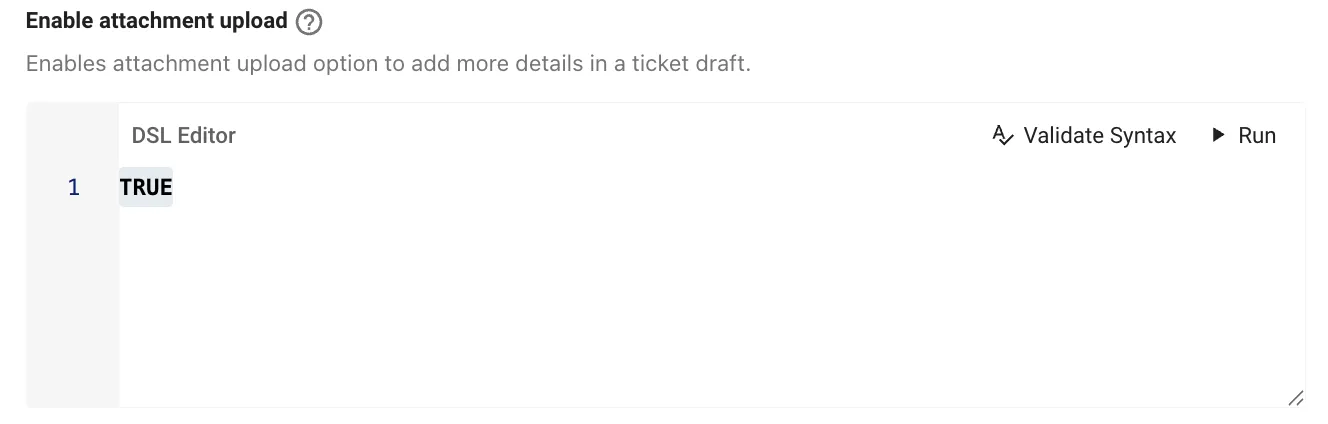

Enable attachment upload

This control provides the ability for attachments to be uploaded option to a in a ticket draft when creating or updating a ticket.

Global Controls
The Enable attachment upload can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

User Context Attribute

user.email_addr.$LOWERCASE() IN ["<user_email>".$LOWERCASE(), "<user_email>".$LOWERCASE()]

Custom Attributes under User Context

user.custom_attributes.cost_center_id IN ["1234"]

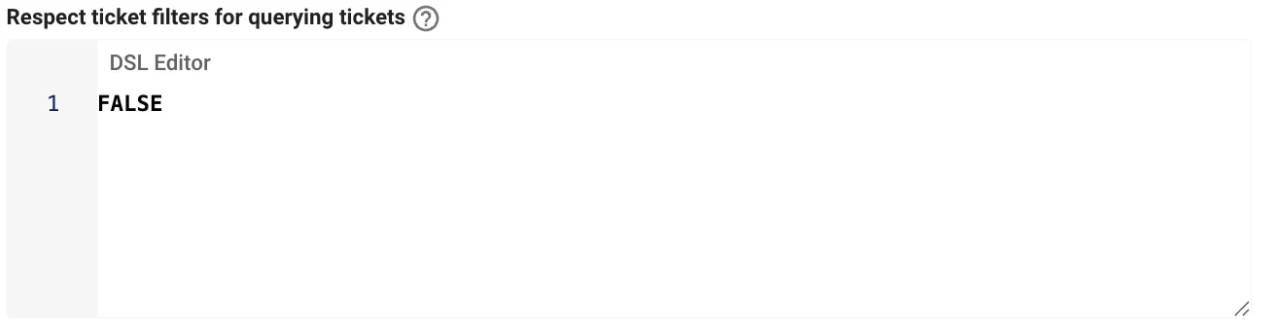

Respect Ticket Filters for Querying Tickets

This control relies on the filter present in the Ticket filters config which be found by navigating to Ticketing > Ticketing Settings > Ticket Filters you can find the rule under the DSL Fields Universal Ticket fetching filter.

If Enabled this will only query the tickets which pass through the above mentioned filter.

Global Controls
The Respect Ticket Filters for Querying Tickets can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

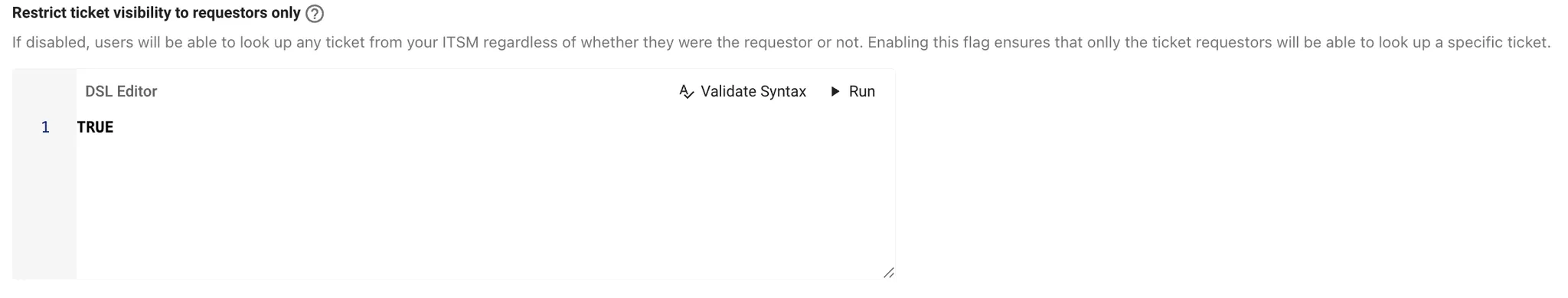

Restrict ticket visibility to requestors only

If Disabled, users will be able to look up any ticket from your Ticketing system regardless of whether they were the requestor or not. Enabling this control ensures that only the tickets requestors will be able to look up their specific ticket.

Global Controls
The Restrict ticket visibility to requestors only can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

User Context Attribute

user.email_addr.$LOWERCASE() IN ["<user_email>".$LOWERCASE(), "<user_email>".$LOWERCASE()]

Custom Attributes under User Context

user.custom_attributes.cost_center_id IN ["1234"]

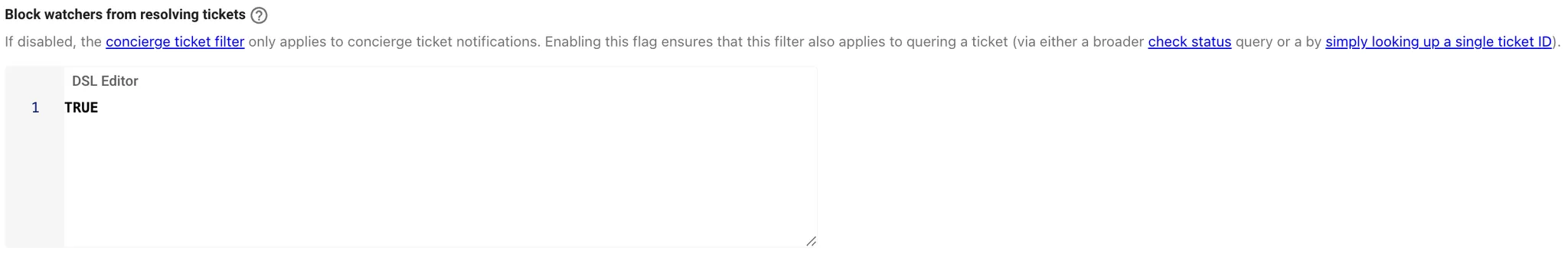

Block watchers from resolving tickets

If disabled, the concierge ticket filter only applies to concierge ticket notifications. Enabling this flag ensures that this filter also applies to querying a ticket (via either a broader check status query or a by simply looking up a single ticket ID).

Global Controls
The Block watchers from resolving tickets can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

Advance Ticket Settings

DSL Rules can be used to manage Advanced concierge Controls . These filters can be found by navigating to Ticketing > Concierge Settings > Advanced Settings which are divided into the below sections.

❗️
These controls do not have DSL Validation currently but will support them in the future.

Here are the Rules you can write using the below DSL Fields in the Advanced Ticket Settings configuration :

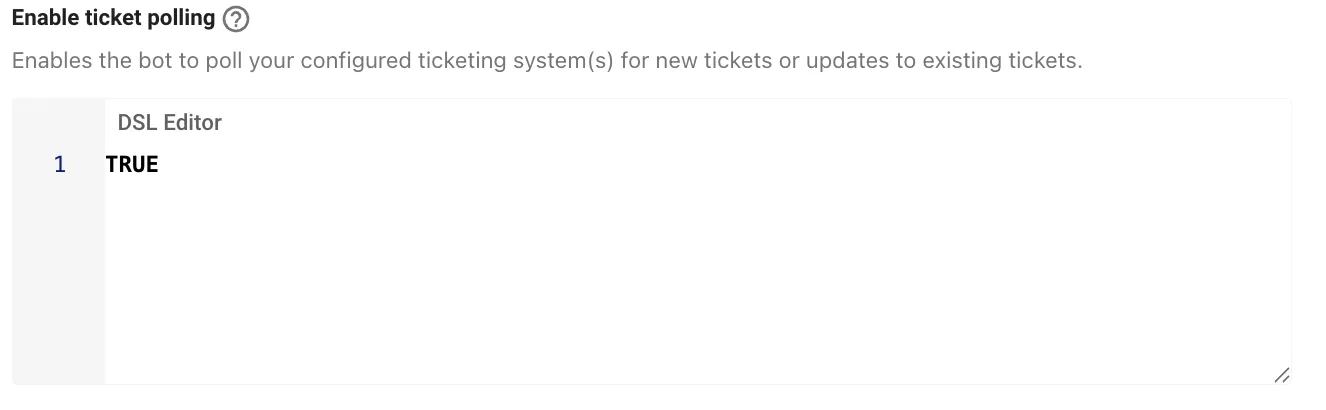

Enable ticket polling

Enables the AI Assistant to poll your configured ticketing system(s) for new tickets or updates to existing tickets.

Global Controls
The Enable ticket polling can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

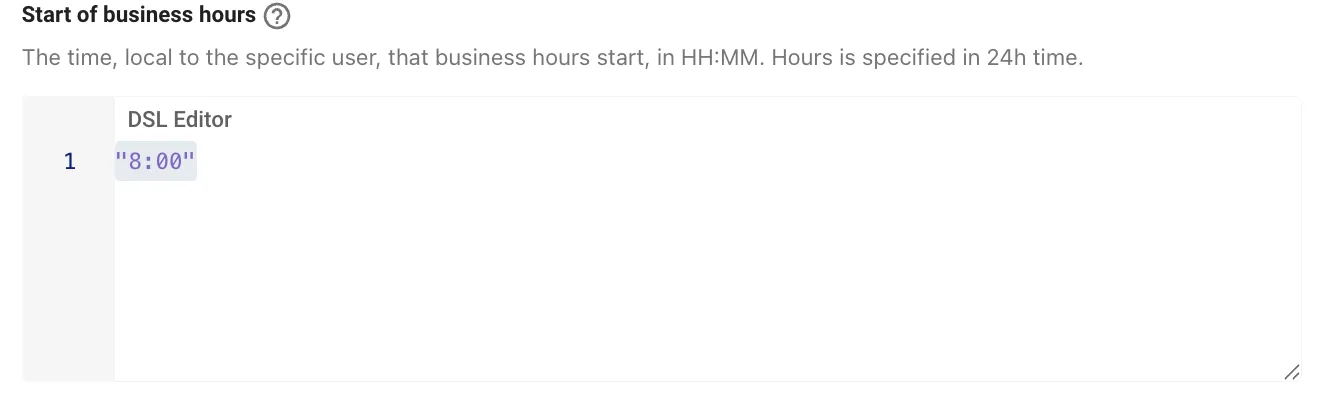

Start of business hours

This control only support the Time Format of HH:MM in 24h time scale. It is used to define the default system time, or local to the specific user, that business hours start.

"9:00"
"11:00"

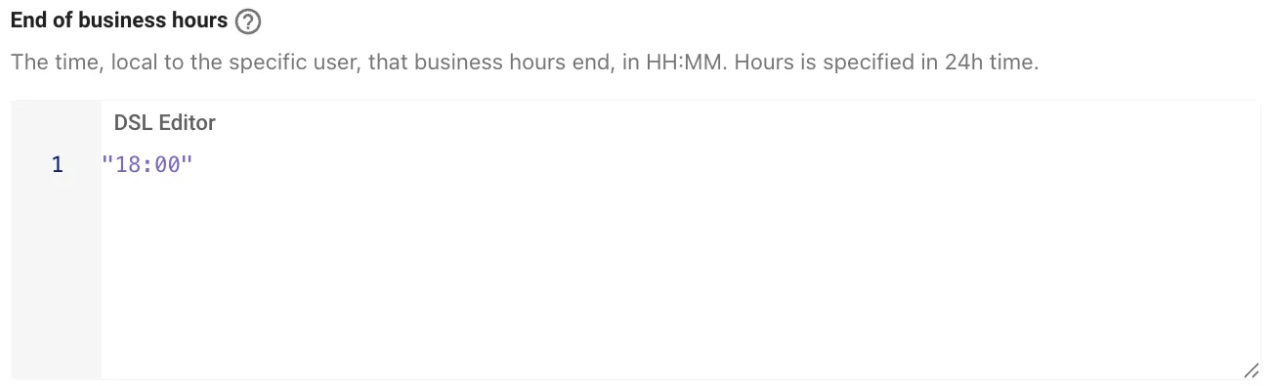

End of business hours

This control only support the Time Format of HH:MM in 24h time scale. It is used to define the default system time, or local to the specific user, that business hours end.

"16:00"
"18:00"

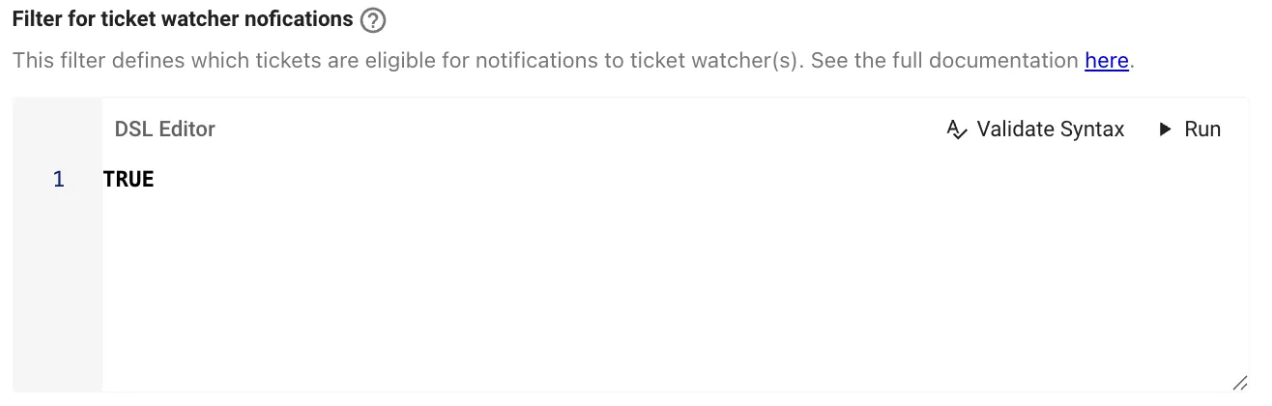

Filter for ticket Watcher Notifications

This filter defines which tickets are eligible for notifications to ticket watcher(s). This control supports the ticket context which can be used to filter tickets that are eligible for sending out notification to watchers.

Global Controls
The Filter for ticket Watcher Nofications can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

Filtering out ticket based on ticket attributes like state,assignment_group,category etc

ticket.assignment_group IN ["dcboauwe02384yr938h"]
ticket.state IN ["Open", "In-Progress"]
NOT (ticket.contact_type.$LOWERCASE() IN ["Phone".$LOWERCASE(), "Chat".$LOWERCASE()])

Filtering out tickets using user attributes which are referenced via ticket attribute
This is made possible by using the attribute created_by which allows us to access the user context attributes.
```
ticket.created_by.email_addr IN ["<user_email>"]
```
Filtering out Tickets using Custom Ticket Attributes
The Ticketing attribute context has custom attributes which can be leverages as well. These attributes are different from the defaults which Moveworks supports Out of the Box. Follow this Guide to learn How To create and leverage Custom Attributes.
```
ticket.custom_data.assignment_group IN ["wfhuq0rf8343412309"]
```

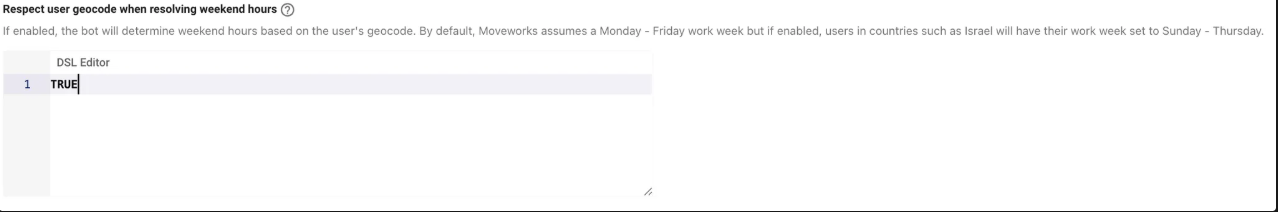

Respect user geocode when resolving weekend hours

If enabled, the AI Assistant will determine weekend hours based on the user's geocode information which is being ingested. By default, Moveworks assumes a Monday - Friday work week but if enabled, users in countries such as Israel will have their work week set to Sunday - Thursday.

Global Controls
The Filter for ticket Watcher Nofications can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

Ticket Interception

DSL Rules can be used to manage configurations related to ticket interception plugin which polls tickets actively and tries to resolve them using other plugins within Moveworks. These filters can be found by navigating to Ticketing > Ticket Interception which are divided into the below sections.

❗️
These controls do not have DSL Validation currently but will support them in the future.

Here are the Rules you can write using the below DSL Fields in the Advanced Ticket Settings configuration :

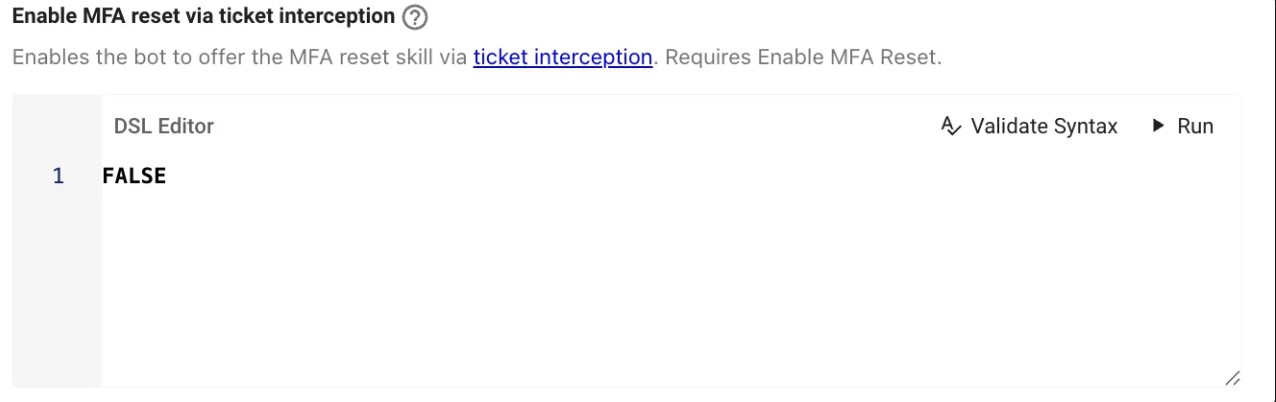

Enable Control to provide MFA reset for Tickets intercepted

Enables the AI Assistant to offer the MFA reset skill via ticket interception. Requires the Enable MFA Reset to be enabled.

Global Controls
The complete functionality can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

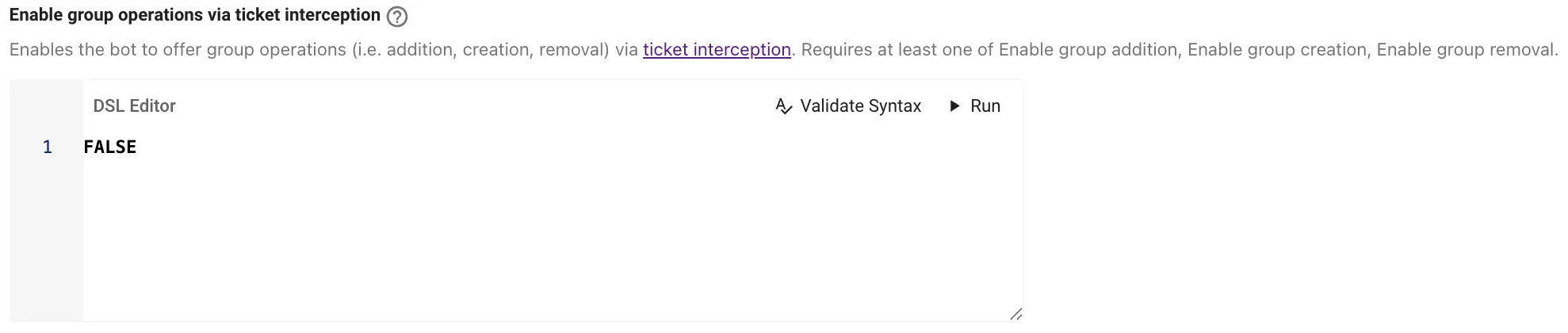

Enable Control to provide Group Access Skill for Tickets Intercepted.

Enables the AI Assistant to offer group operations (i.e. addition, creation, removal) via ticket interception. Requires at least one of Enable group addition, Enable group creation, Enable group removal plugins to be enabled.

Global Controls
The complete functionality can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

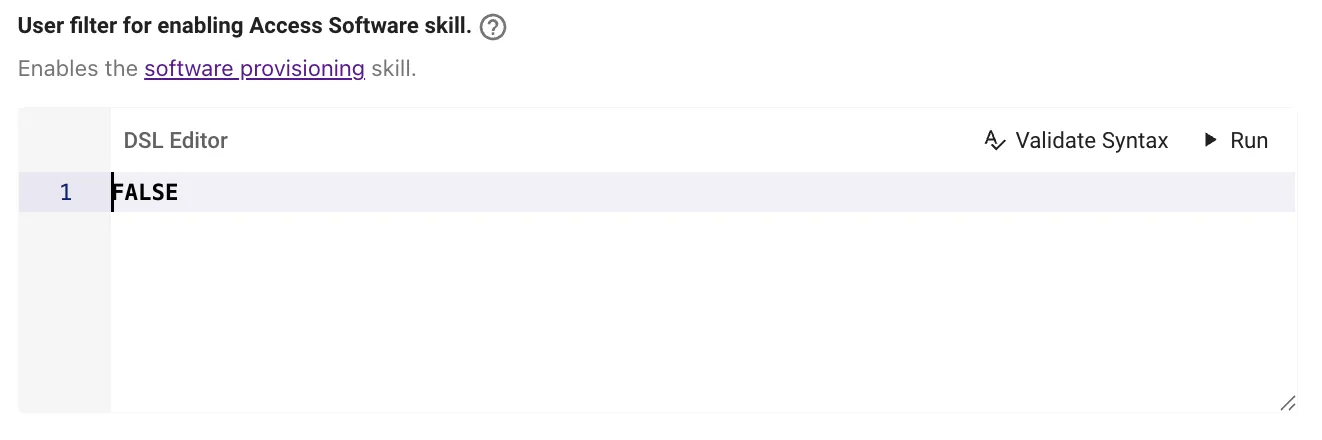

Enable Control to provide User Filter to enable Access Software Plugin

Enables the Software Access plugin. Utilising the user context attribute to build rules which define which users will be able to request software access in the AI Assistant

Global Controls
The complete functionality can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

User Context Attribute

user.email_addr.$LOWERCASE() IN ["<user_email>".$LOWERCASE(), "<user_email>".$LOWERCASE()]

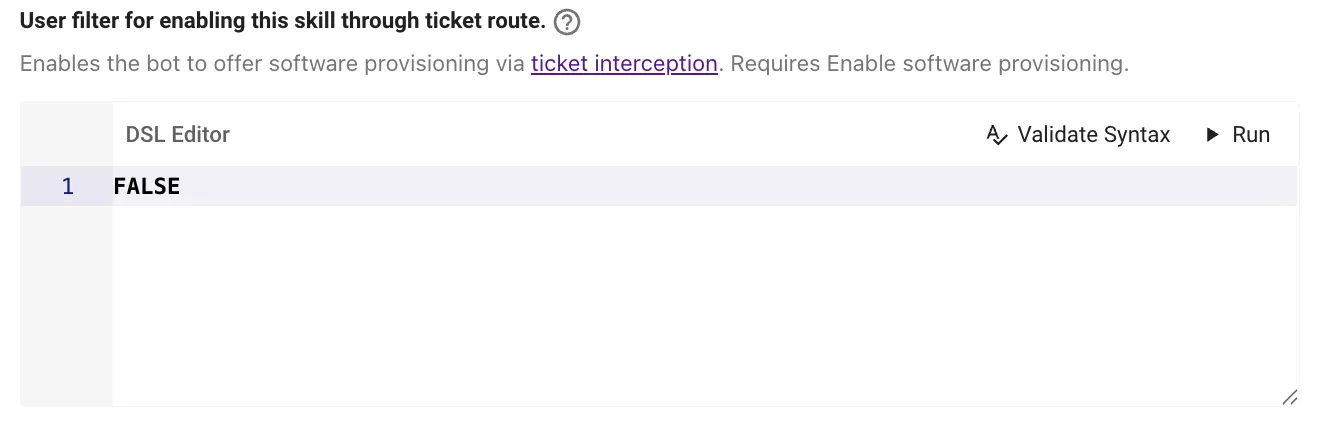

Enable Control to provide User Filter to enable this skill through ticket route

Enables the AI Assistant to offer Software Access Plugin via ticket interception. Requires the Software Access plugin to be enabled.

Global Controls
The complete functionality can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

User Context Attribute

user.email_addr.$LOWERCASE() IN ["<user_email>".$LOWERCASE(), "<user_email>".$LOWERCASE()]

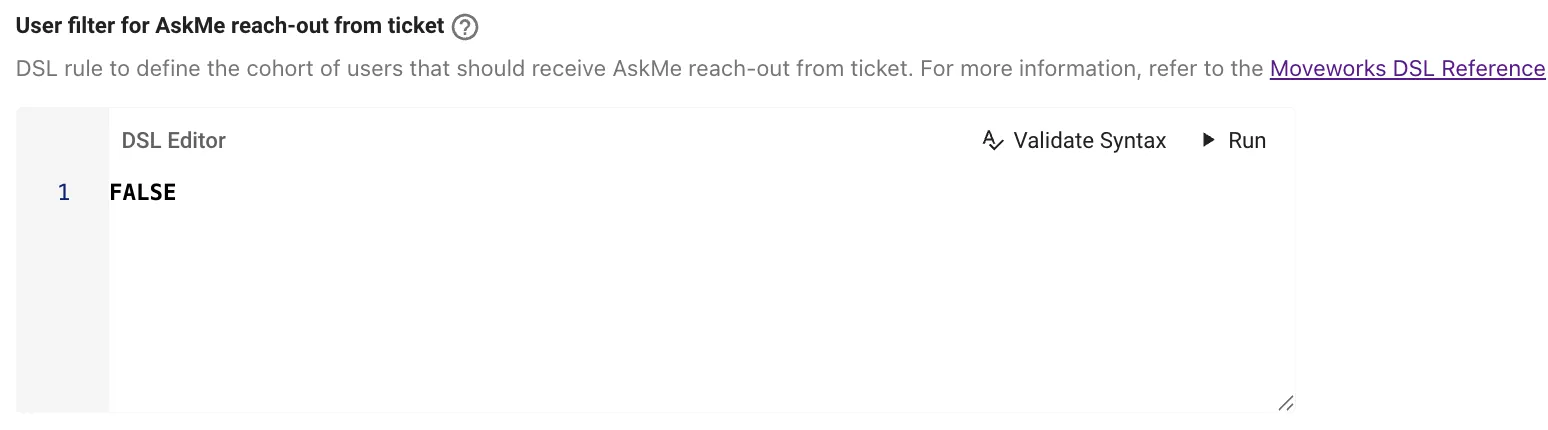

Enable control to provide User Filter for Answers Skill for Tickets Intercepted

DSL rule to define the subset of users that should be eligible for Answers Plugin to be provided for Tickets Intercepted. For more information, refer to the Moveworks DSL Reference.

Global Controls
The complete functionality can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

User Context Attribute

user.email_addr.$LOWERCASE() IN ["<user_email>".$LOWERCASE(), "<user_email>".$LOWERCASE()]

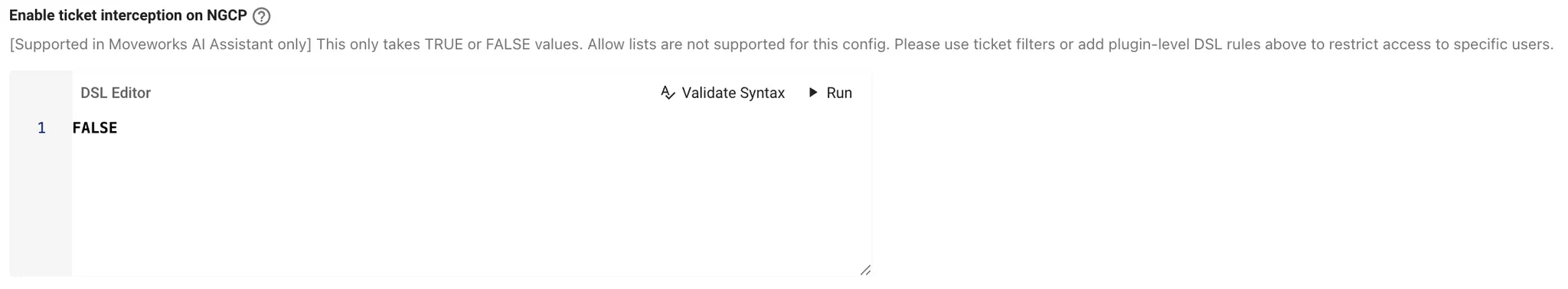

Enable Ticket Interception for AI Assistant

DSL rule to enable Ticket interception in the AI Assistant.

Global Controls
The complete functionality can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

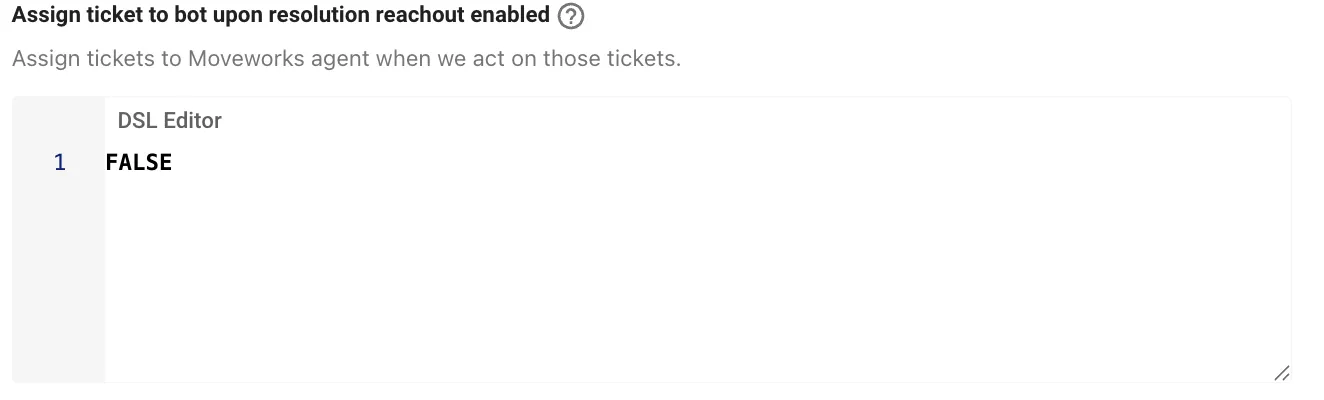

Assign Ticket to AI Assistant upon Resolution Reach out

Assign tickets to Moveworks Service Account when we act on those tickets for resolution.

Global Controls
The complete functionality can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

Ticket Nudge

DSL Rules are used here to control ticket nudge Notification Plugin. These filters can be found by navigating to Ticketing > Ticket Nudge Setup which are divided into the below sections.

Here are the Rules you can write using the below DSL Fields in the Ticket Nudge configuration :

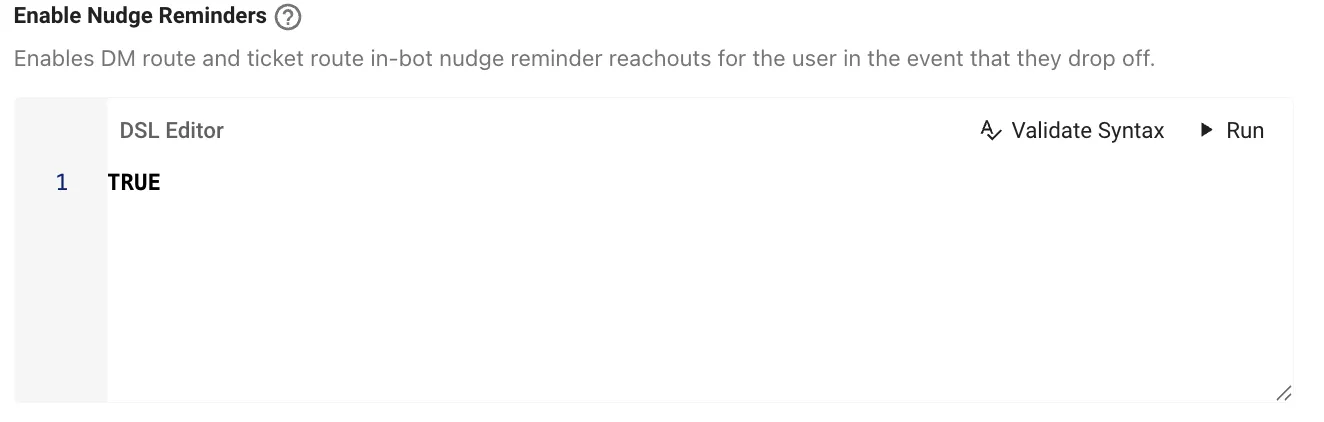

Enable Nudge Reminders

Enables Notification to the users in the AI Assistant as a reminder when a conversation has been dropped off or a ticket has not been updated for more than x amount of days.

Global Controls
The complete functionality can be turned ON or OFF completely by setting the DSL Rule as TRUE or FALSE.

User Context Attribute

user.email_addr.$LOWERCASE() IN ["<user_email>".$LOWERCASE(), "<user_email>".$LOWERCASE()]

Testing & Validating the DSL Rules

Once the DSL rules have been defined, select fields will be marked with a “Validate Syntax” & “Run” button which can be used for ensuring the Rules defined are using the right attributes and Syntax and then you can also test the rule against a example user or ticket based on the context.

Testing with the User Context

Some DSL Fields support the user context attribute, you have the ability to :

Validate Syntax
- Validate the Syntax of the Rule which was written to ensure the structure is correct and more importantly the attributes being leveraged by the DSL rule exists in Moveworks.
- Ensure the Validate Syntax button is clicked after writing your rule to confirm the Syntax is valid. If the syntax is valid, then the button will turn green in color.
- If there is an issue with your DSL rule it will return an Error during evaluation which you can use to debug the Rule issue and fix it. Please refer this section to learn how to resolve error types.
- You can also leverage custom user attributes in the DSL rules in order to make the rules more dynamic. But in order to do this we need to ensure the Custom Attribute has been added to the Moveworks Registry. Learn more about how to create Custom Attributes in the guide here.
Run Test
- Once a DSL Rule has been written and validated, If the DSL Field supports the Run button we can use it to test the Rule in real time using a existing user in from the Moveworks Roster.
- Clicking on the Run Button opens a modal on the page which is broken down into the below sections.
  - DSL Rule Preview - The modal displays the current rule which is in place as a preview so it can be referenced when testing the rule.
  - Select User - Select a user from the list of users ingested in Moveworks
  - Results for Selected User - This shows the result of the rule being evaluatied against the selected user from the roster.
- You can test rules by selecting only a single user at a time. If you are unsure about the value of an attribute which is being referenced in the Rule and what the value would be for the selected user you are testing against. You can visit the User Profile View in Moveworks

Testing with the Ticket Context

Some DSL Fields support the ticket context attribute, which is also linked to the user context attribute, then you have the ability to :

Validate Syntax
- Validate the Syntax of the Rule which was written to ensure the structure is correct and more importantly the attributes being leveraged by the DSL rule exists in Moveworks.
- Ensure the Validate Syntax button is clicked after writing your rule to confirm the Syntax is valid. If the syntax is valid, then the button will turn green in color.
- If there is an issue with your DSL rule it will return an Error during evaluation which you can use to debug the Rule issue and fix it. Please refer this section to learn how to resolve error types.
- If the DSL rule defined is using a combination of both Ticket and User Context attributes, then we need to ensure we are accessing the user data via the ticket context attribute which should be valid.
  Here the ticket.created_by Attribute in the ticketing context allows us to access the user context variables as well.
- You can also leverage custom ticket attributes in the DSL rules in order to make the rules more dynamic. But in order to do this we need to ensure the Custom Attribute has been added to the Moveworks Registry. Learn more about how to Create a Custom Attributes in the guide here.

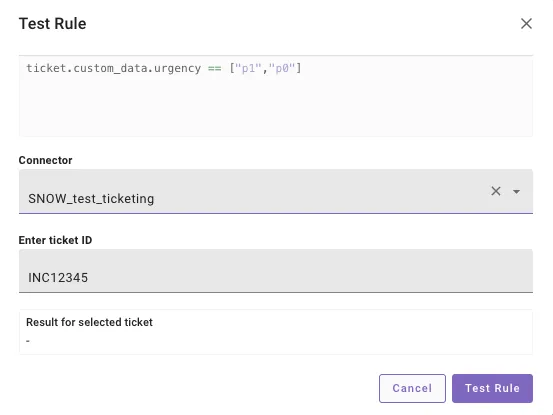

Run Test
- Once a DSL Rule has been written and validated, If the DSL Field supports the Run button we can use it to test the Rule in real time by polling an existing ticket in from the External Ticketing system.
- Clicking on the Run Button opens a modal on the page which is broken down into the below sections.
  - DSL Rule Preview - The modal displays the current rule which is in place as a preview so it can be referenced when testing the rule.
  - Connector - Choose the system connector here which will be used to actively poll the ticket to run the test against.
  - Enter ticket ID - Type in a Ticket ID which you are sure has the attributes which are defined in the rule to actively test both Passing and Failing scenarios.
  - Results for Selected Ticket - This shows the result of the rule being evaluatied against the ticket which was polled
- You can test rules by selecting only a single ticket at a time. If you are unsure about the value of an attribute which is being referenced in the Rule and what the value would be for the ticket, You can view the ticket in the ITSM UI or make an API call to pull the ticket data.

Errors Debugging

When writing DSL rules across different fields in Moveworks, You might come across scenarios where the Rule you have defined are failing due to an Invalid Syntax or invalid attribute being used.

Here are a few common errors you will run into :

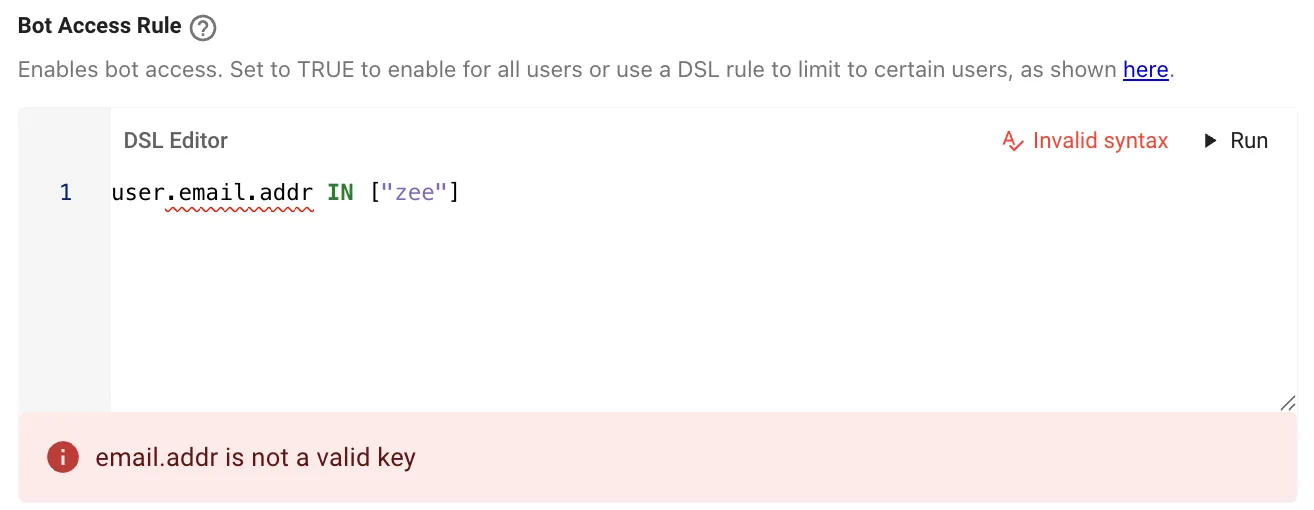

Invalid Attribute Being used

Resolution Steps :

In order to resolve this error you can depend on the Autocomplete feature in the DSL builder to confirm if the attribute you are using is being listed in the prediction list.
If the attribute you are defining does not show up in the autocomplete list, this means that the attribute is invalid and we should change it to using one of the existing ones in the list.
After making the changes to the rule, we can validate it again and confirm if the Rule is now working.

❗️
Reach out to the Moveworks Support Team if you are unable to resolve the DSL Error.

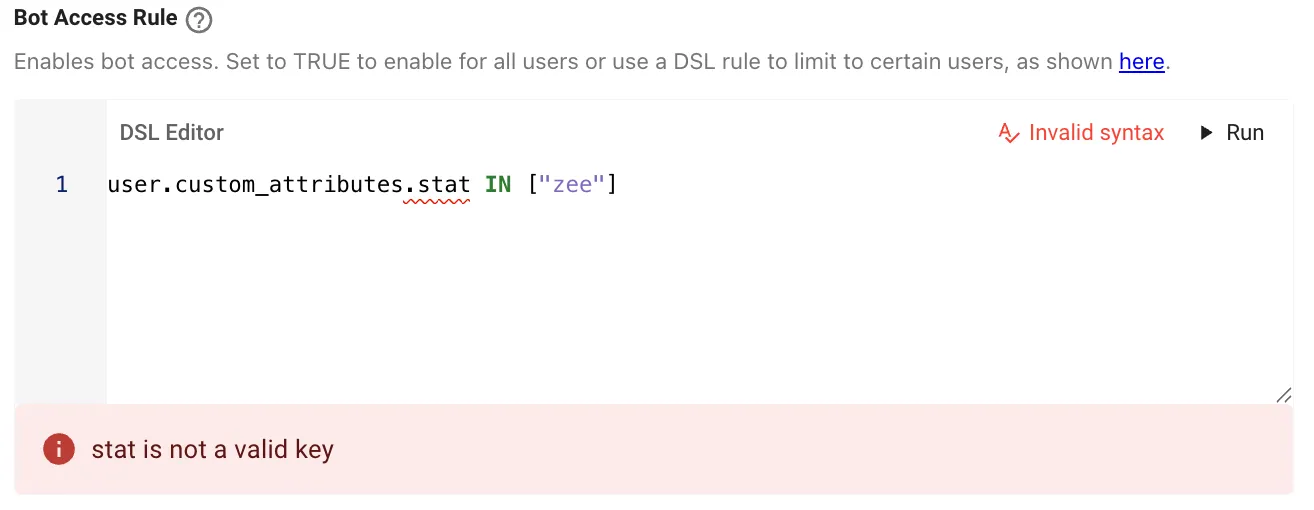

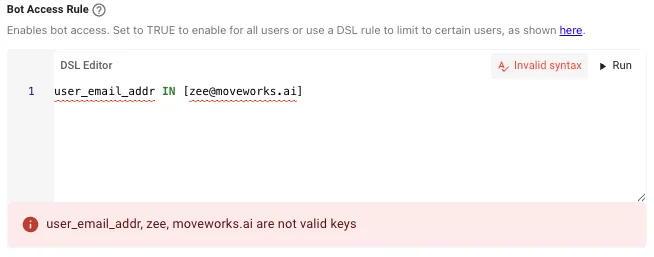

Custom Attributes being leveraged but not Defined

When you see the Error <Attribute> is not a valid key in the DSL Field when validating the syntax, this means that one or more attributes in the rule are not valid keys within Moveworks which can be used. In this case we are leveraging the custom attributes which can run into errors under the user or ticket attributes.

Resolution Steps :

When leveraging custom attributes under any context, it is imperative to add these attributes into the Moveworks Registry. Learn more about how to add Custom Attributes to the Moveworks Registry here.
In order to resolve this error you can depend on the Autocomplete feature in the DSL builder to confirm if the attribute you are using is being listed in the prediction list. If this is a custom attribute then we would need to define it in the registry before it is listing in the
If the attribute you are defining does not show up in the autocomplete list, this means that the attribute is invalid and we should change it to using one of the existing ones in the list.
After making the changes to the rule, we can validate it again and confirm if the Rule is now working.

❗️
Reach out to the Moveworks Support Team if you are unable to resolve the DSL Error.

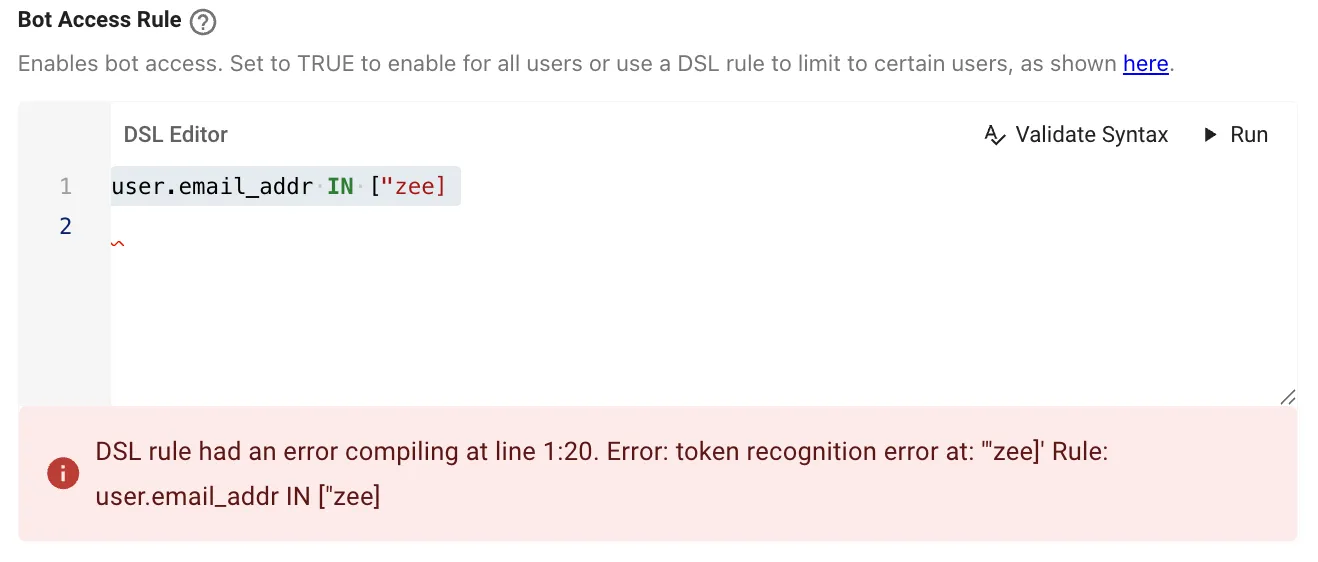

Rule Compilation Error

When validating syntax, if the rule runs into a compilation error this means that there are missing or extra characters in the syntax that the DSL field either expects or does not. The error will look like :

DSL rule had an error compiling at line <Line Number>. Error: token recognition error at: <Attribute> Rule: <Rule described>

Based on the Attribute being returned in the error we can further debug to resolve the Issue.

Resolution Steps :

In order to resolve compilation issues we need to focus on the variable where the token recognisation issue is taking place. In the below example the Issue is happening in the value array which is [”zee]
Here the reason for the failure is because the item in the array is being defined as a string variable but using an invalid syntax, the variable is missing a double quote which is resulting in the issue.
After making the changes to the rule, we can validate it again and confirm if the Rule is now working.

❗️
Reach out to the Moveworks Support Team if you are unable to resolve the DSL Error.

Known Limitations

User, Ticket & Resource Context Attributes are not supported by all DSL Fields in Moveworks. They are present in DSL fields across plugins depending on relevancy.
The Validate Syntax & RUN Button options are not supported by all DSL fields and are only present for critical controls across Plugins. We will be increasing this support to more fields in the coming months.

Updated 2 days ago

Managing AI Assistant Access Rule

Answers Plugin

Enabling Answers Plugin

Knowledge Article Filter Rule

Forms Plugin

Form Finding Plugin

Ticket Interception with Forms

Deflecting Forms to External System

Form Filling for Eligible Form

Override Unfillable Forms to be Fillable

Override Fillable Forms to Deflect to External System

People and Places Plugin

People and Places Plugin

People Registry Plugin

Resource Permissions

📘There are 2 types of Permissioning Strategies which are supported ABAC and REBAC which you can learn more about here. The below examples will be common for AI Assistanth strategies.

Ticket Filters

Standard Ticket Filter

Universal Ticket fetching filter

Ticket Resolution Filter

Filter for actionable tickets

Skill Specific Ticket Filter

Ask-me Skill (Answers Plugin)

Ticket Activity updates

Ticket Filter for Nudges

Ticket Filter for Triage

Notifications Settings

Enable Concierge Notifications

Enable user timezone for concierge notifications

Enable weekend notifications

Disable Concierge Notifications to Watchers

Respect user geocode when resolving weekend hours

Ticket Actions

Hide reopen button if ticket state is closed

Enable attachment upload

Respect Ticket Filters for Querying Tickets

Restrict ticket visibility to requestors only

Block watchers from resolving tickets

Advance Ticket Settings

❗️These controls do not have DSL Validation currently but will support them in the future.

Enable ticket polling

Start of business hours

End of business hours

Filter for ticket Watcher Notifications

Respect user geocode when resolving weekend hours

Ticket Interception

❗️These controls do not have DSL Validation currently but will support them in the future.

Enable Control to provide MFA reset for Tickets intercepted

Enable Control to provide Group Access Skill for Tickets Intercepted.

Enable Control to provide User Filter to enable Access Software Plugin

Enable Control to provide User Filter to enable this skill through ticket route

Enable control to provide User Filter for Answers Skill for Tickets Intercepted

Enable Ticket Interception for AI Assistant

Assign Ticket to AI Assistant upon Resolution Reach out

Ticket Nudge

Enable Nudge Reminders

Testing & Validating the DSL Rules

Testing with the User Context

Testing with the Ticket Context

Errors Debugging

Invalid Attribute Being used

❗️Reach out to the Moveworks Support Team if you are unable to resolve the DSL Error.

Custom Attributes being leveraged but not Defined

❗️Reach out to the Moveworks Support Team if you are unable to resolve the DSL Error.

Rule Compilation Error

❗️Reach out to the Moveworks Support Team if you are unable to resolve the DSL Error.

Known Limitations

📘
There are 2 types of Permissioning Strategies which are supported ABAC and REBAC which you can learn more about here. The below examples will be common for AI Assistanth strategies.

❗️
These controls do not have DSL Validation currently but will support them in the future.

❗️
These controls do not have DSL Validation currently but will support them in the future.

❗️
Reach out to the Moveworks Support Team if you are unable to resolve the DSL Error.

❗️
Reach out to the Moveworks Support Team if you are unable to resolve the DSL Error.

❗️
Reach out to the Moveworks Support Team if you are unable to resolve the DSL Error.
