Lab #7: Handoff - Live Agent

View as Markdown

Overview

  • Learning Objectives: Configure Moveworks to broker live agent chat sessions between users and ServiceNow agents using the Virtual Agent API integration.
  • Estimated Time: 30 minutes
  • Prerequisites:
    • Labs 0–5 complete
    • ServiceNow lab instance with the following update sets applied (provided by instructor):
      • Moveworks Live Agent VA API Config (Virtual Agent API scope)
      • Moveworks Live Agent AWA Config (Global scope)
    • ServiceNow admin credentials for your lab instance

Key Concepts

Live Agent Message Brokering allows Moveworks to act as a bridge between end users in their chat platform (Slack, Teams, etc.) and live agents in ServiceNow’s Service Operations Workspace. When the AI Assistant cannot resolve a user’s issue, it can seamlessly hand off the conversation to a human agent.

  • Message Brokering vs. Deep Link: Message brokering keeps the conversation within the user’s native chat platform (Slack/Teams). The alternative deep link approach redirects users to a ServiceNow portal. Message brokering provides a better user experience.
  • Virtual Agent API: Moveworks uses ServiceNow’s Virtual Agent Bot-to-Bot API (/api/sn_va_as_service/bot/integration) to initiate conversations and relay messages between users and agents.
  • Agent Availability: Moveworks checks the awa_agent_presence_capacity table to determine if agents are available before offering the handoff option.
  • AWA Routing: Interactions must be routed through Advanced Work Assignment (AWA) queues. Without a properly configured queue, assignment rule, and eligibility pool, interactions will immediately close.

🛠️ 1: Walkthrough

Warning: The update sets handle most of the ServiceNow configuration. Before proceeding, verify the setup was applied correctly.

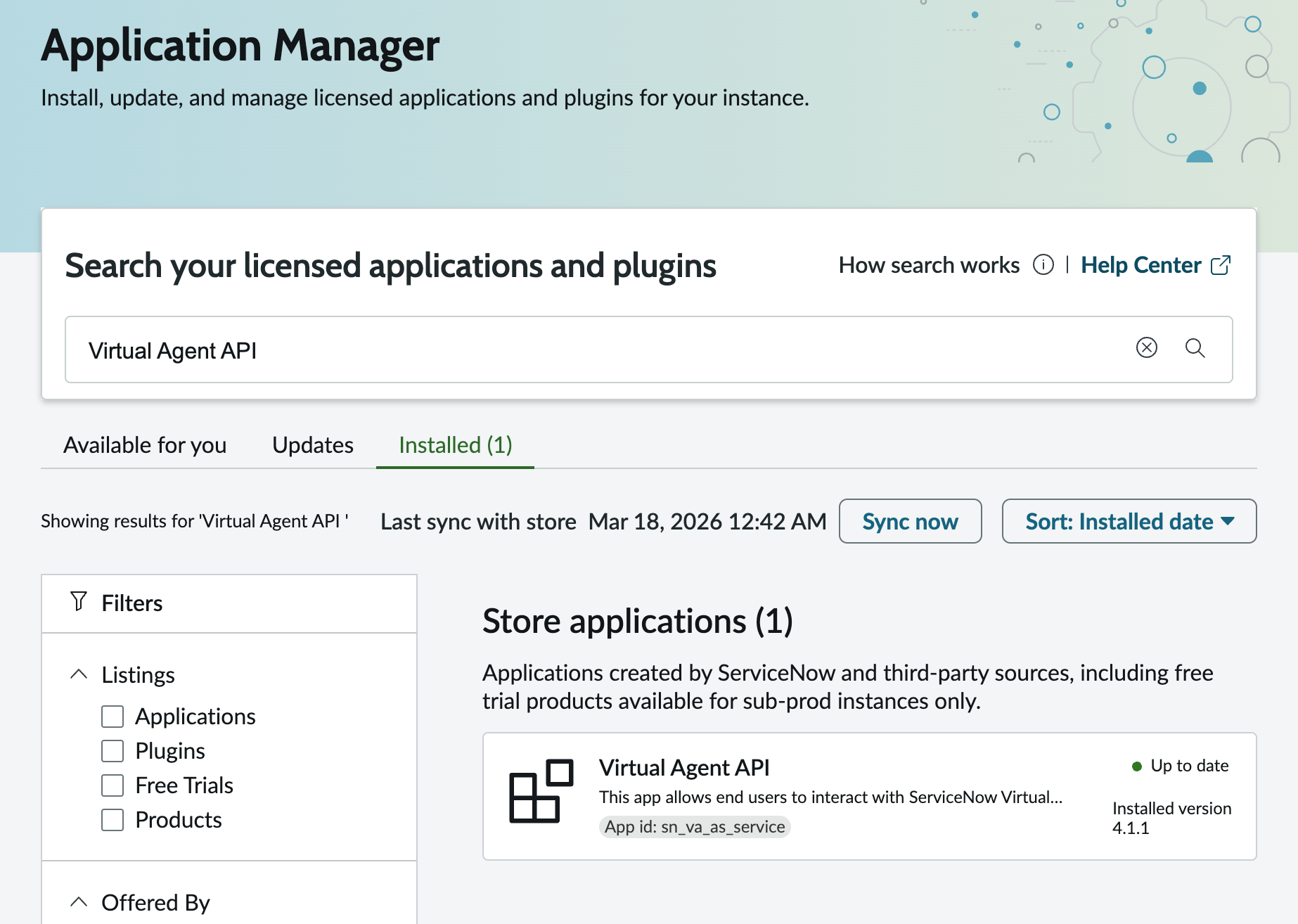

1.1: Verify Virtual Agent API Plugin

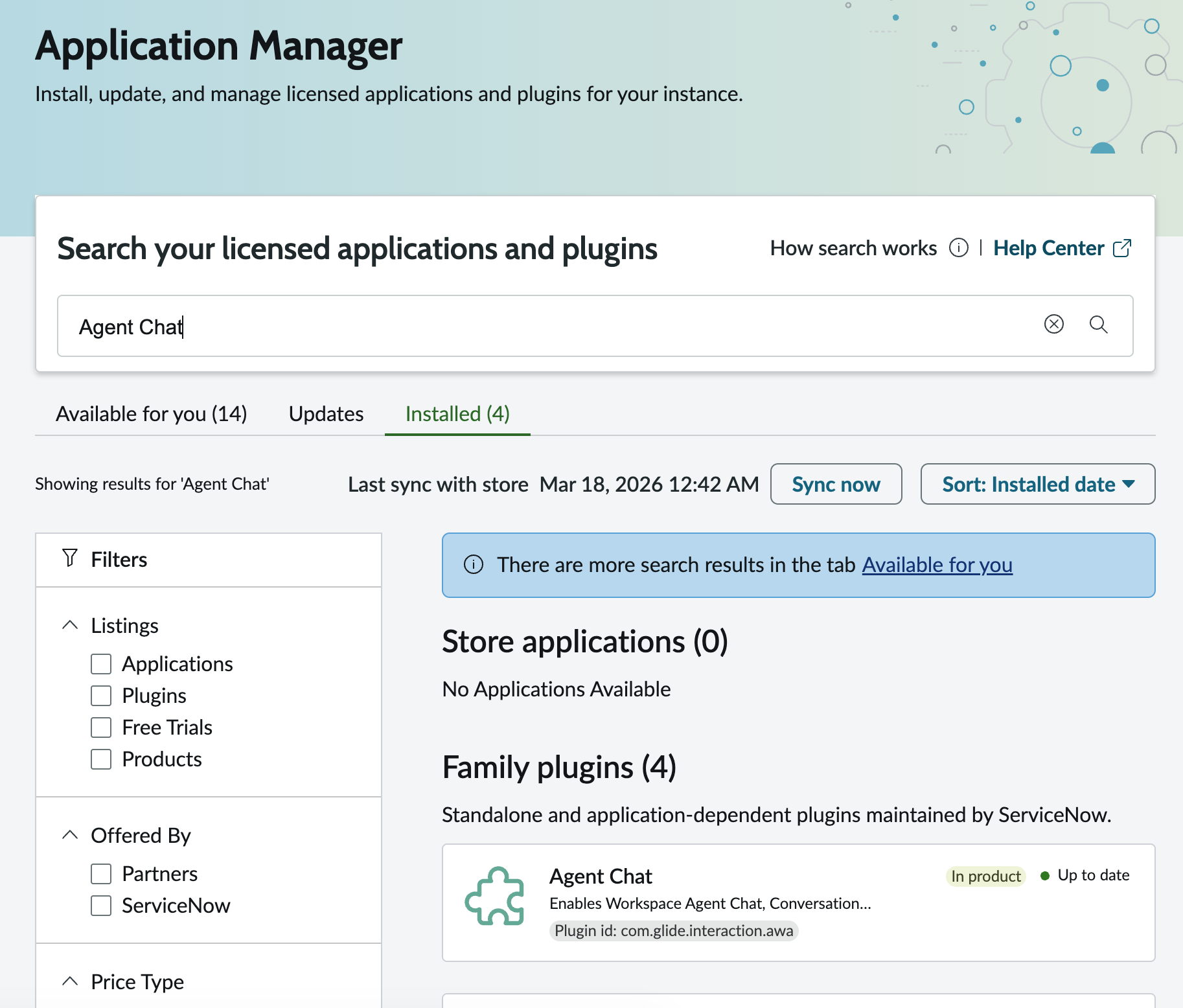

  1. In your ServiceNow instance, navigate to System Applications > All Available Applications > All

  2. Search for Virtual Agent API and confirm it is installed

  3. Search for Agent Chat plugin and confirm it is installed

1.2: Verify Update Set Configurations

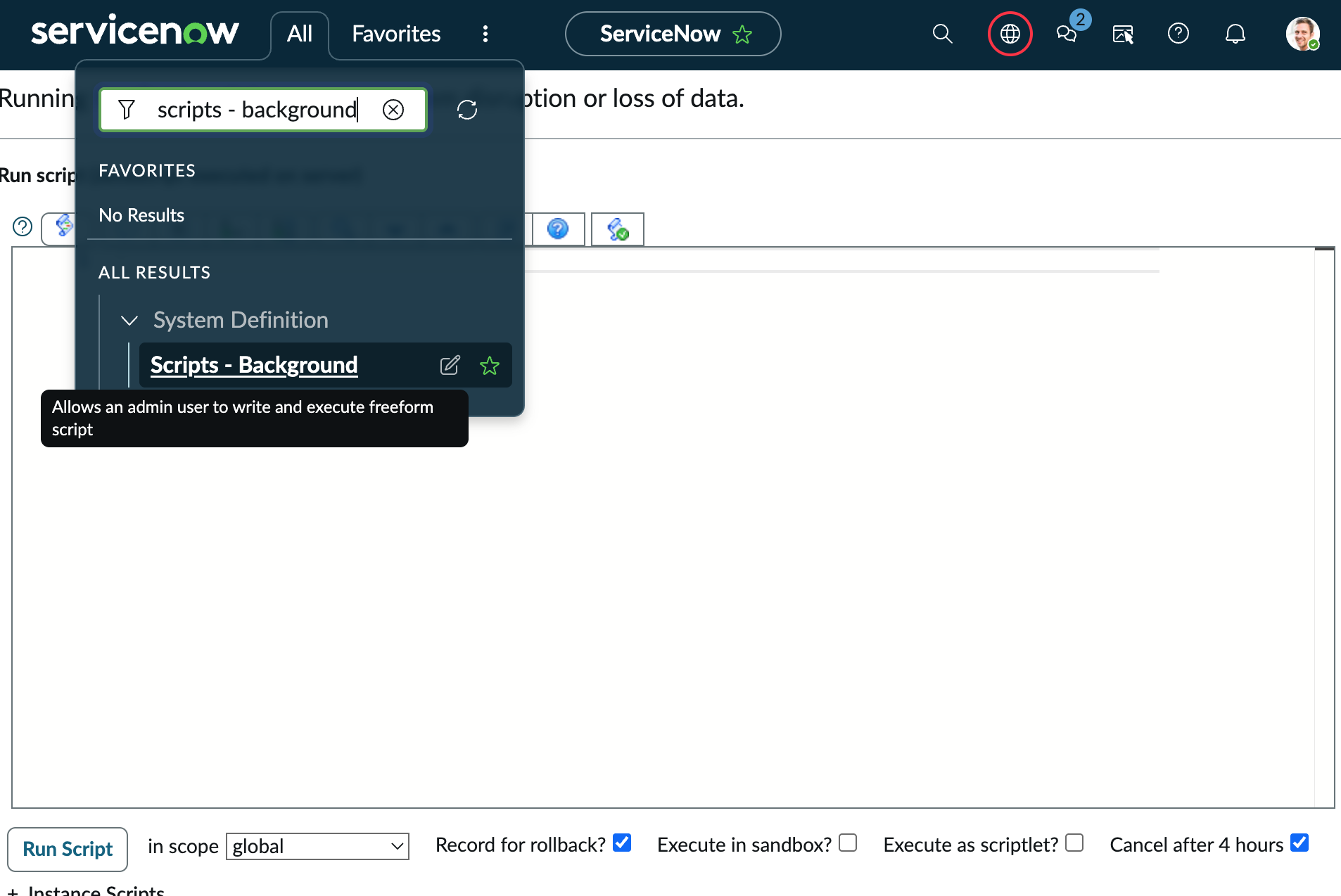

Run the following script in Scripts - Background to confirm the update sets were applied correctly:

1(function() {
2 gs.print('=== Verifying VA API Config ===');
3
4 var rest = new GlideRecord('sys_rest_message');
5 rest.addQuery('name', 'VA Bot to Bot');
6 rest.query();
7 if (rest.next()) {
8 gs.print('VA Bot to Bot endpoint: ' + rest.rest_endpoint);
9 } else {
10 gs.print('ERROR: VA Bot to Bot REST message not found');
11 }
12
13 var post = new GlideRecord('sys_rest_message_fn');
14 post.addQuery('rest_message', rest.sys_id);
15 post.addQuery('http_method', 'POST');
16 post.query();
17 if (post.next()) {
18 gs.print('POST endpoint: ' + post.rest_endpoint);
19 } else {
20 gs.print('ERROR: POST method not found');
21 }
22
23 var tv = new GlideRecord('token_verification');
24 tv.addQuery('name', 'LIKE', 'Moveworks');
25 tv.query();
26 if (tv.next()) {
27 gs.print('Token verification: ' + tv.name + ' | sys_id=' + tv.sys_id);
28 } else {
29 gs.print('ERROR: Token verification not found');
30 }
31
32 var ma = new GlideRecord('message_auth');
33 ma.addQuery('name', 'LIKE', 'Moveworks');
34 ma.query();
35 if (ma.next()) {
36 gs.print('Message auth: ' + ma.name);
37 } else {
38 gs.print('ERROR: Message auth not found');
39 }
40
41 gs.print('\n=== Verifying AWA Config ===');
42
43 var q = new GlideRecord('awa_queue');
44 q.addQuery('name', 'Moveworks Labs Live Agent Chat Queue');
45 q.query();
46 if (q.next()) {
47 gs.print('Queue: ' + q.name + ' | active=' + q.active + ' | channel=' + q.service_channel.getDisplayValue());
48 } else {
49 gs.print('ERROR: Chat queue not found');
50 }
51
52 var ar = new GlideRecord('awa_assignment_rule');
53 ar.addQuery('name', 'Chat - Most Capacity');
54 ar.query();
55 if (ar.next()) {
56 gs.print('Assignment Rule: ' + ar.name + ' | active=' + ar.active);
57 } else {
58 gs.print('ERROR: Assignment rule not found');
59 }
60
61 var ep = new GlideRecord('awa_eligibility_pool');
62 ep.addQuery('display_name', 'Agent Chat Group : Chat - Most Capacity');
63 ep.query();
64 if (ep.next()) {
65 gs.print('Eligibility Pool: ' + ep.display_name);
66 } else {
67 gs.print('ERROR: Eligibility pool not found');
68 }
69
70 gs.print('\n=== Verification Complete ===');
71})();

Expected Output:

Note: All lines should show the expected values. If any line shows ERROR, the update set may not have been applied correctly. Contact your lab instructor.

*** Script: === Verifying VA API Config ===
*** Script: VA Bot to Bot endpoint: https://api.moveworks.ai
*** Script: POST endpoint: https://api.moveworks.ai/rest/LiveAgentService/SnowSendMessageToUser
*** Script: ERROR: Token verification not found
*** Script: ERROR: Message auth not found
*** Script:
=== Verifying AWA Config ===
*** Script: Queue: Moveworks Labs Live Agent Chat Queue | active=true | channel=Chat
*** Script: Assignment Rule: Chat - Most Capacity | active=undefined
*** Script: Eligibility Pool: Agent Chat Group : Chat - Most Capacity
*** Script:
=== Verification Complete ===

1.3: Generate API Key

  1. Navigate to the MyMoveworks portal

  2. Open the HTTP Connectors App

  3. Click on Credentials and click Create

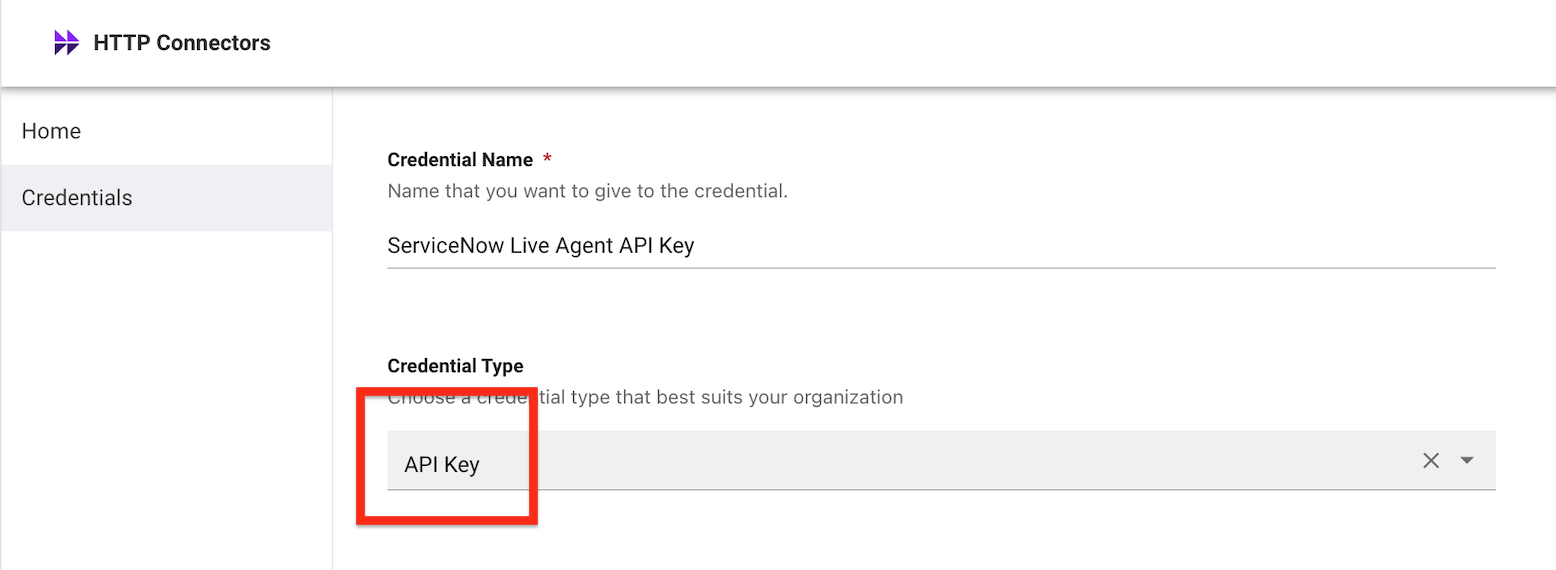

  4. Enter a Credential Name (e.g., ServiceNow Live Agent API Key)

  5. Choose API Key

    Warning: When you click Publish, save the API Key immediately. This key will not appear again.

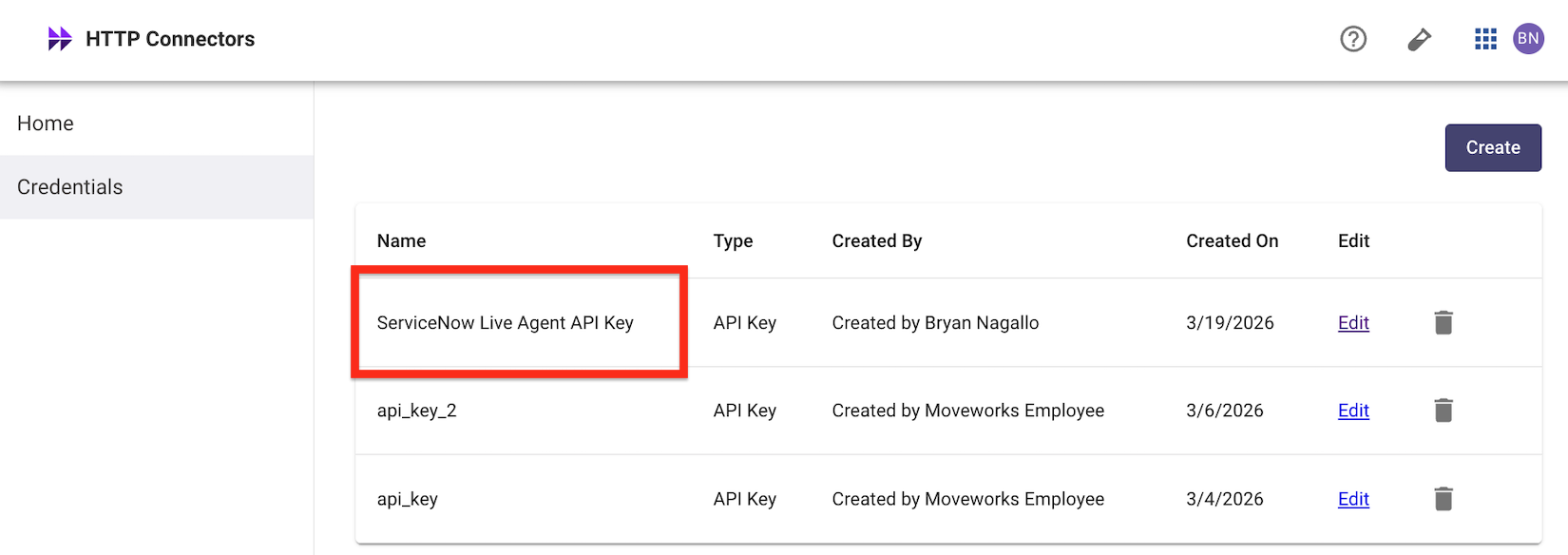

  6. Click Publish and save the API Key securely

1.4: Set Auth Profile Password in ServiceNow

The update set creates the auth profile but cannot transport the password. You must enter the API key you just generated.

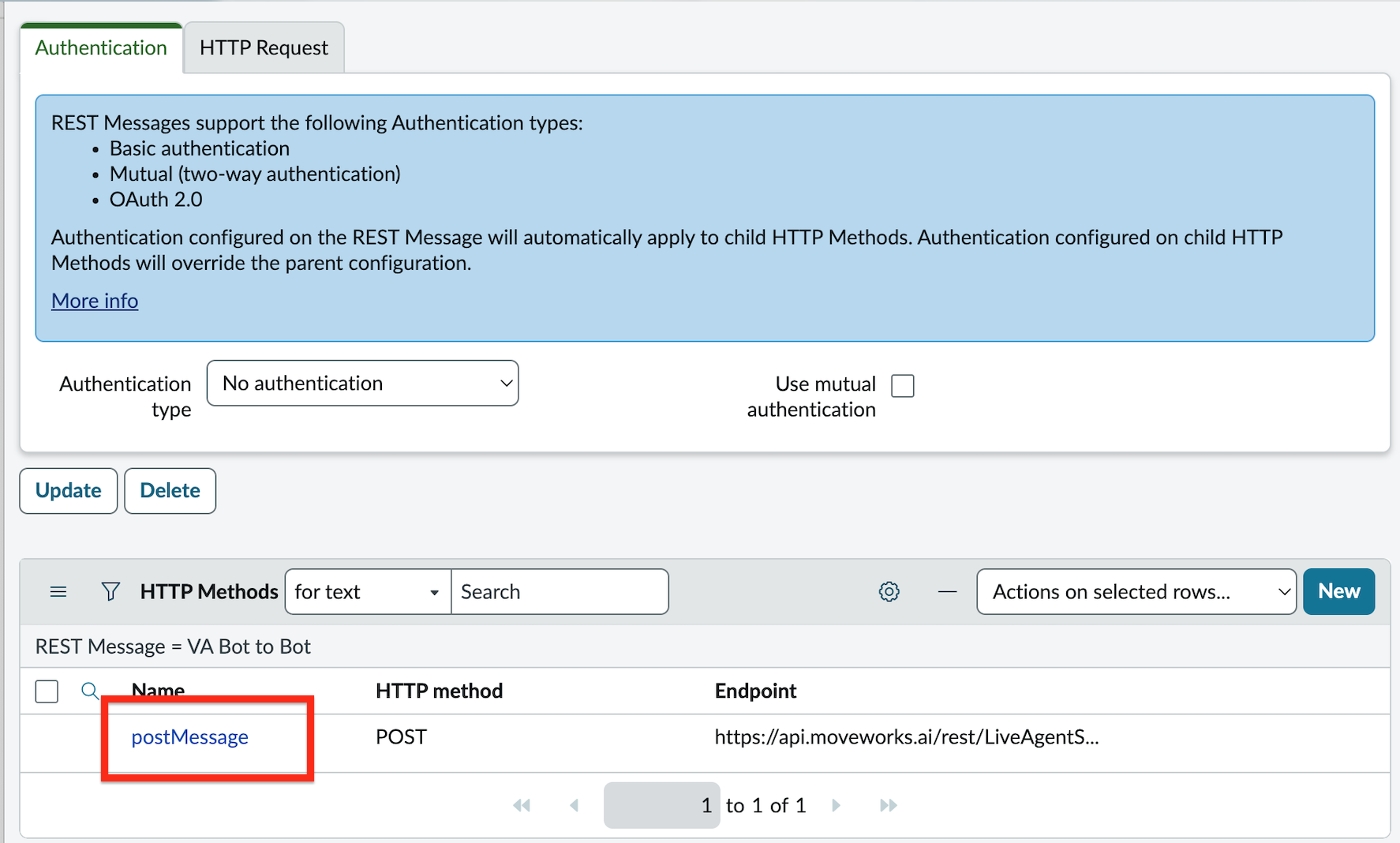

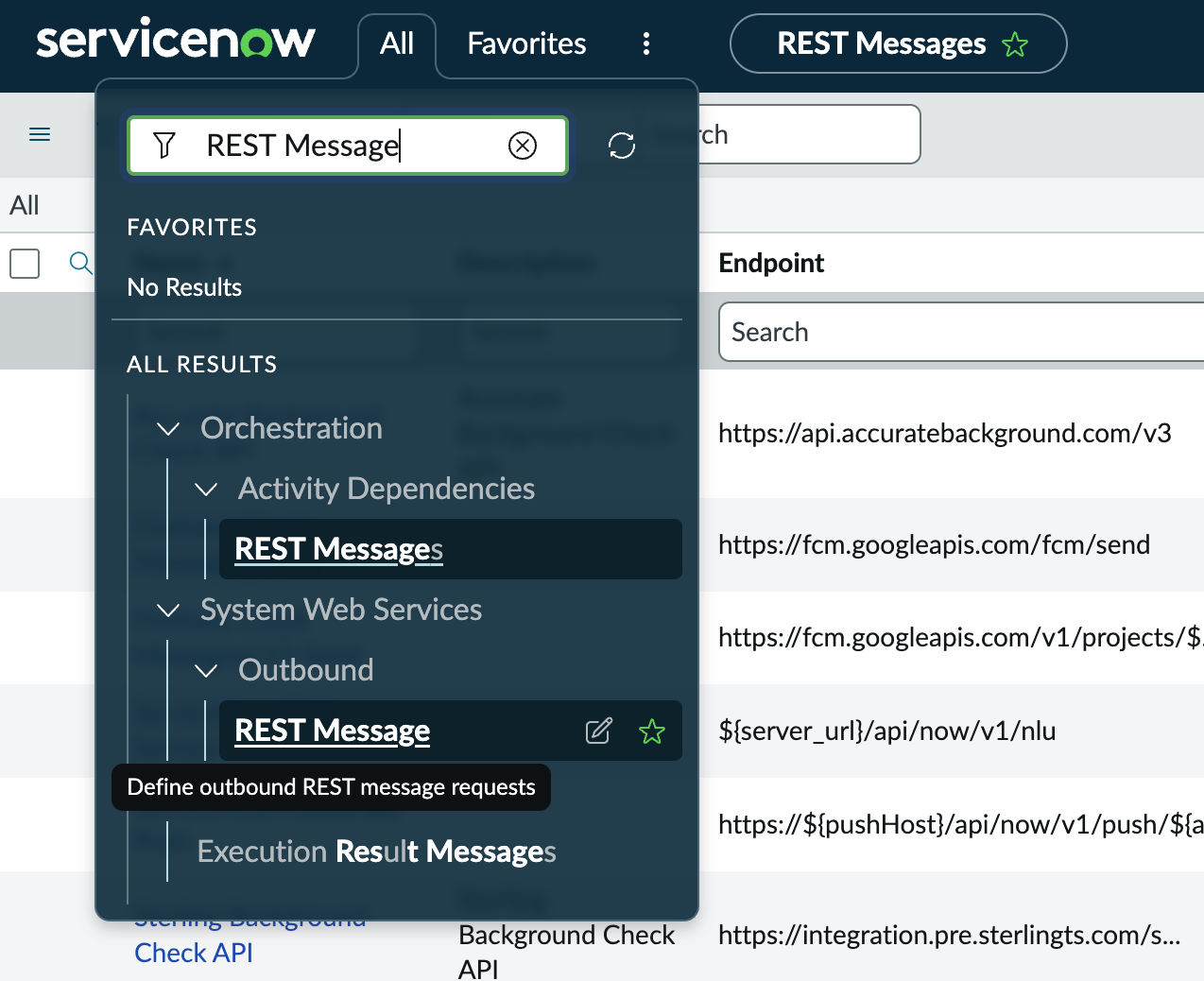

  1. In your ServiceNow instance, navigate to Outbound > REST Message and search for VA Bot to Bot

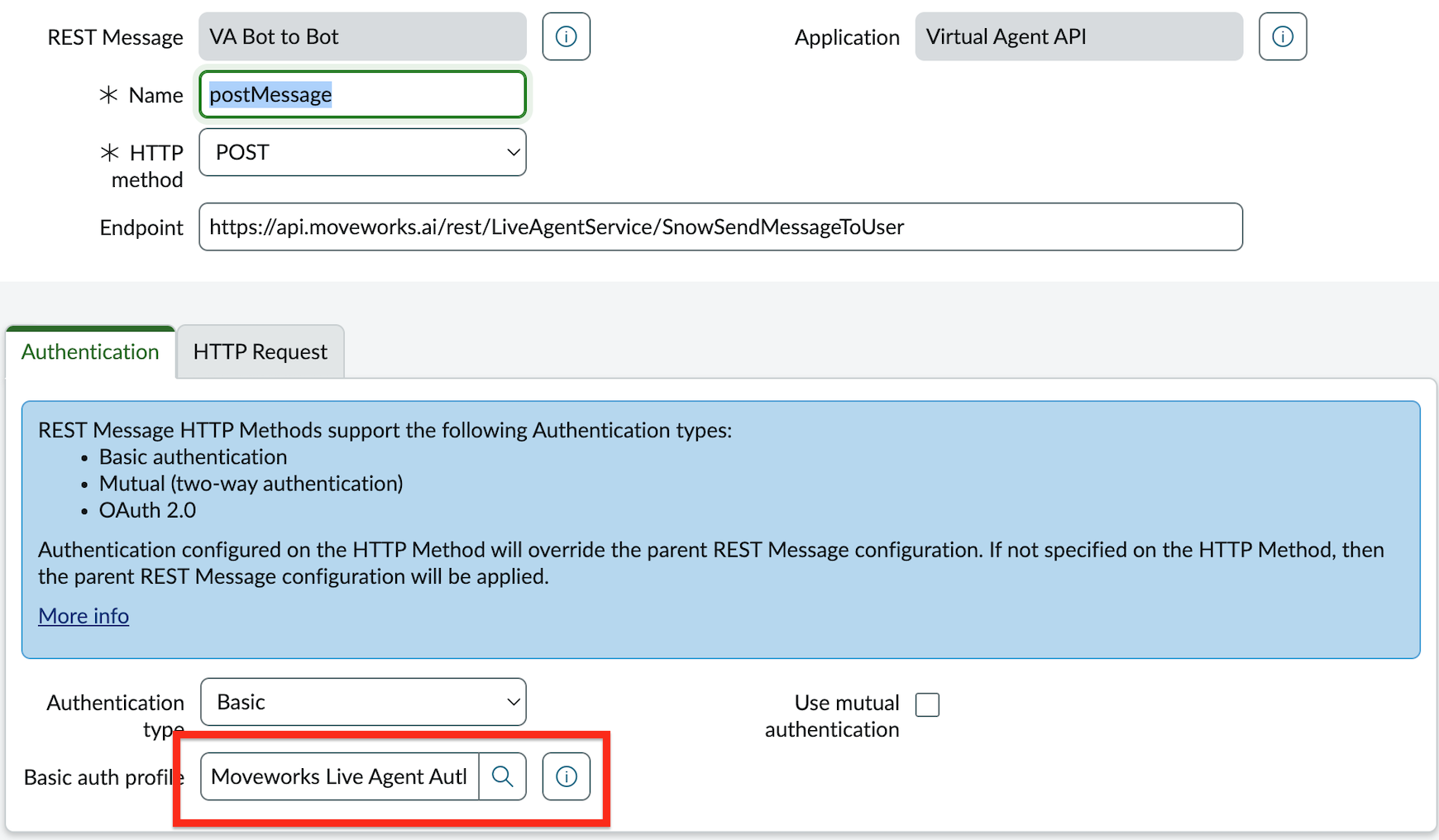

  2. Open the POST method record (listed under HTTP Methods)

  3. Click on the Authentication tab and open the auth profile Moveworks Live Agent Auth

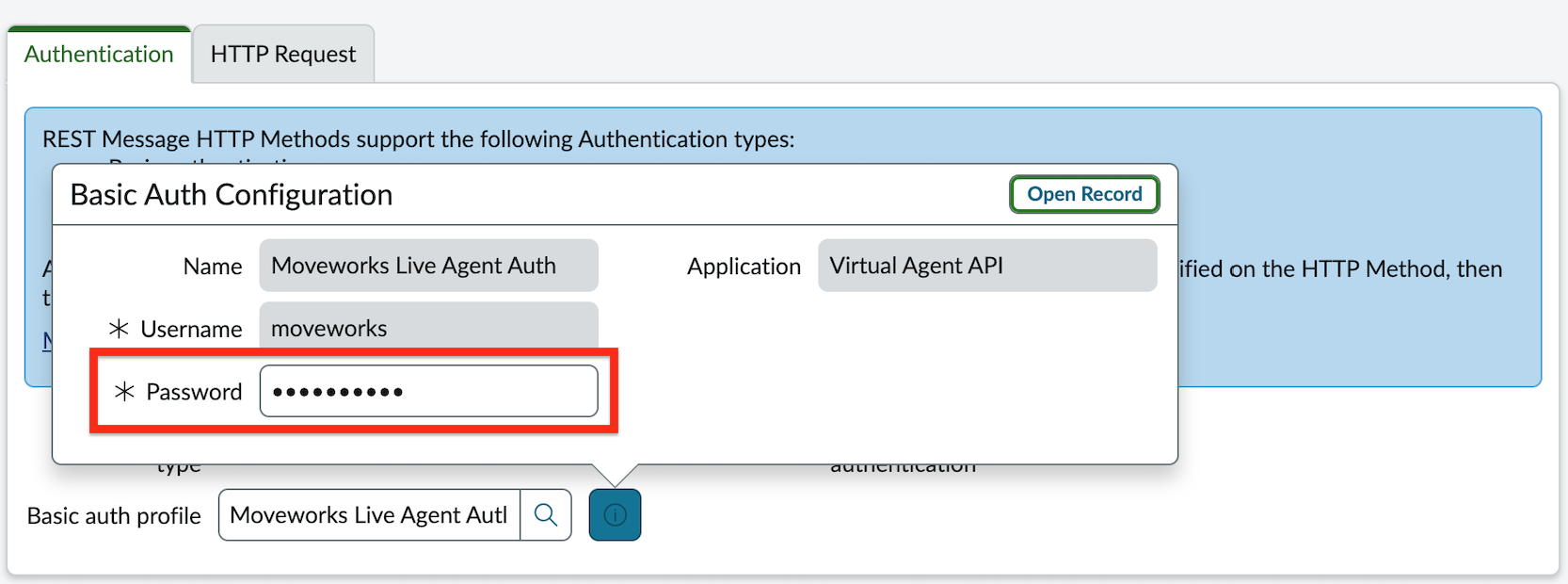

  4. Enter the API key from Step 1 as the Password

  5. Click Update

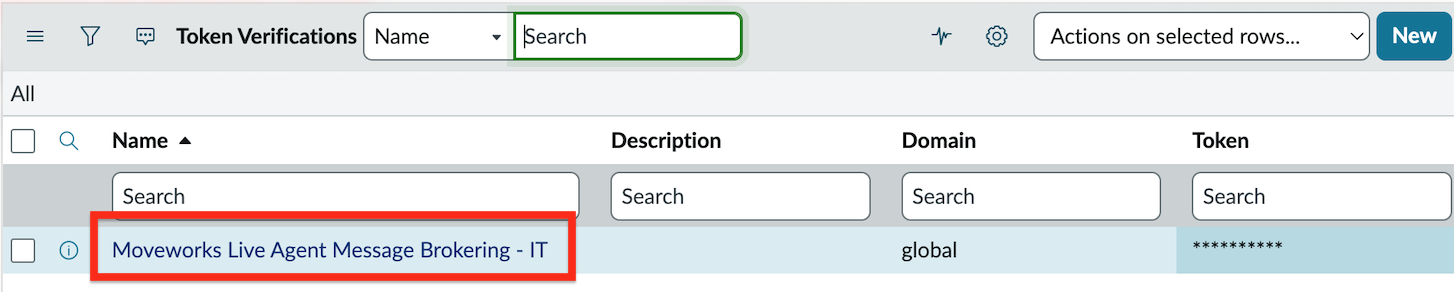

1.5: Set Token Verification Password in ServiceNow

The update set creates the token verification record but cannot transport the password. You must set it manually.

  1. Navigate to [your_instance]/token_verification_list.do

  2. Open the record named Moveworks Live Agent Message Brokering - IT

  3. Set any secure password in Tokensave this password securely, you will need it in Step 6

  4. Click Update

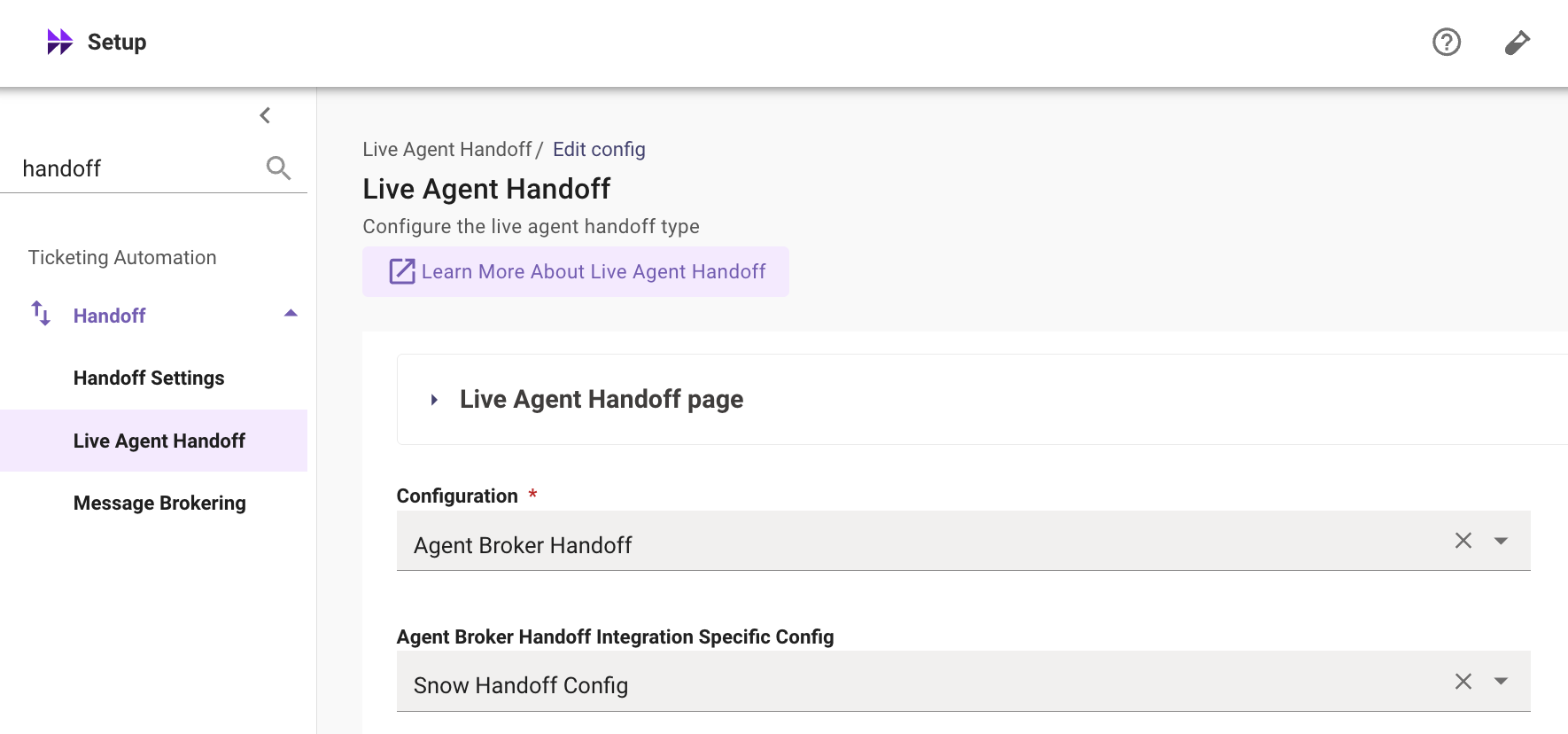

1.6: Configure Live Agent Handoff

  1. In MyMoveworks, navigate to Handoff > Live Agent Handoff

  2. Click Create to add a new configuration

  3. Set Configuration to Agent Broker Handoff

  4. Open the Live Agent Handoff dropdown and set the Handoff Identifier (e.g., agent_broker_instance_1)

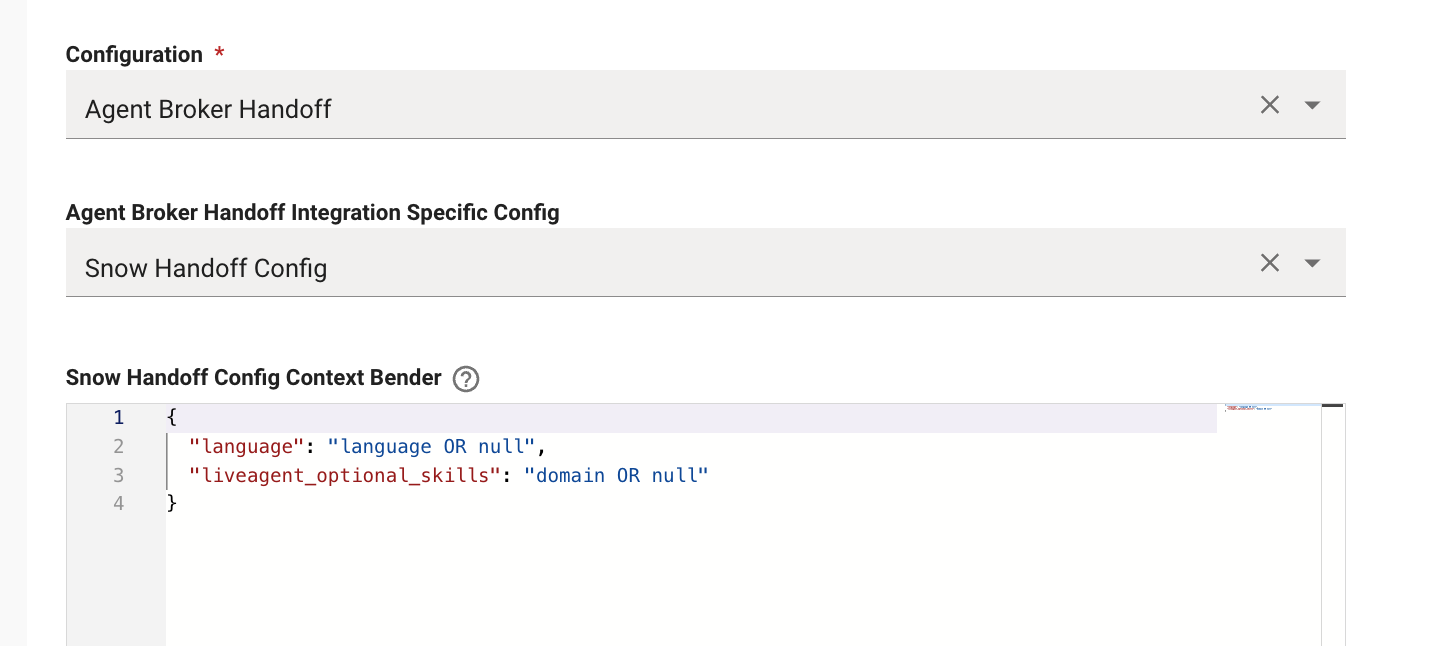

  5. Configure the Snow Handoff Config Context Bender with the following default payload:

1{
2 "language": "language OR null",
3 "liveagent_optional_skills": "domain OR null"
4}

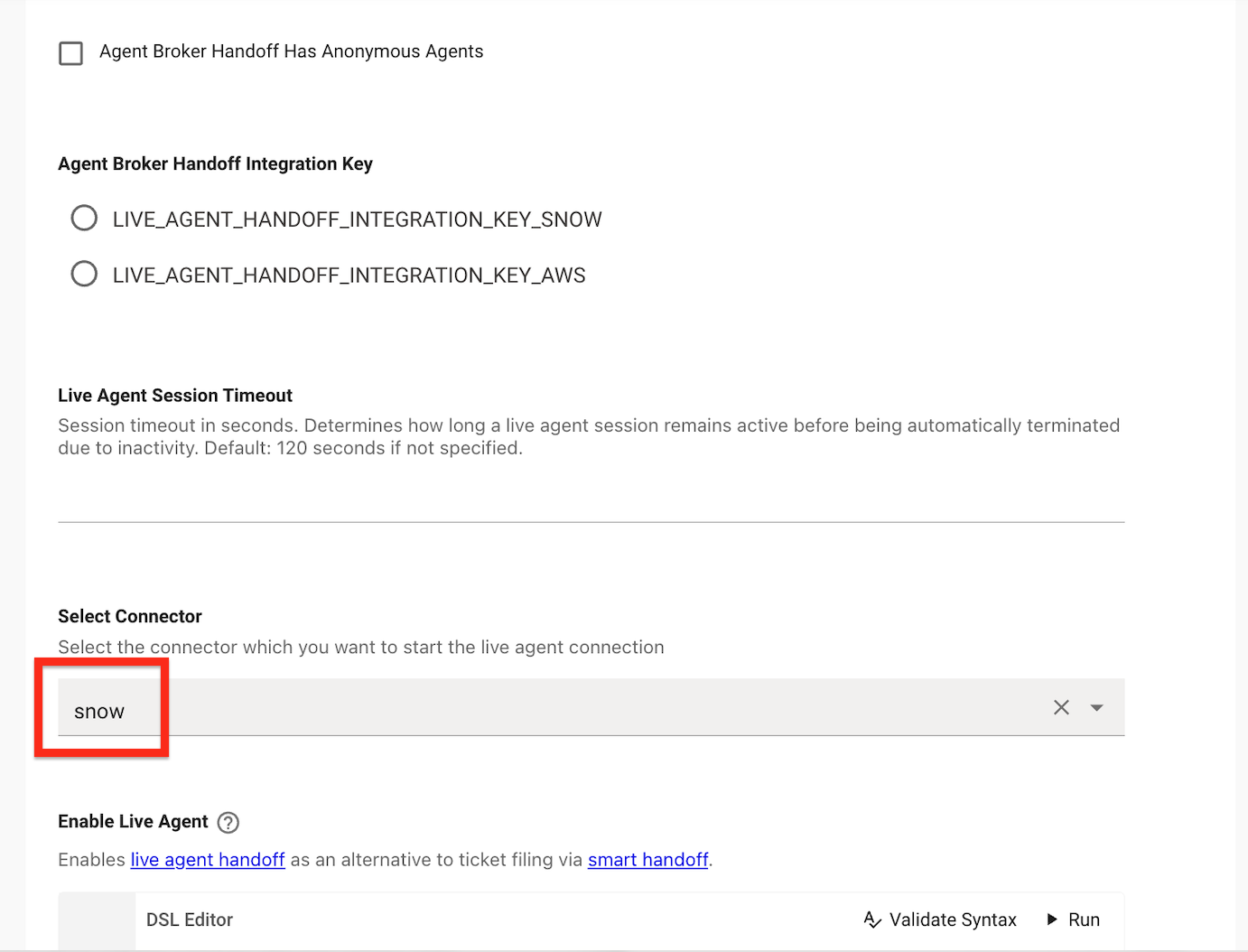

  1. Set the Integration ID to the ServiceNow connector that will be used as the live agent chat platform

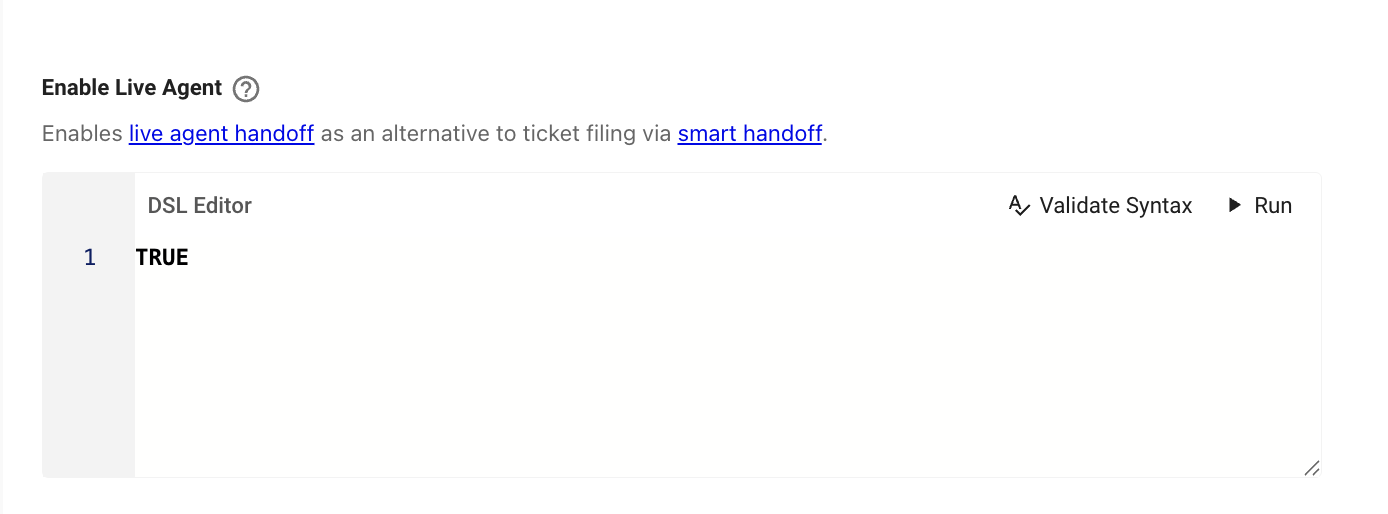

  2. Set Enable Live Agent to TRUE

Field NameAction / Value to Enter
ConfigurationAgent Broker Handoff
Handoff Identifieragent_broker_instance_1
Trigger Rulecontext.domain == "IT_DOMAIN"
Integration IDYour ServiceNow connector
Enable Live AgentTRUE

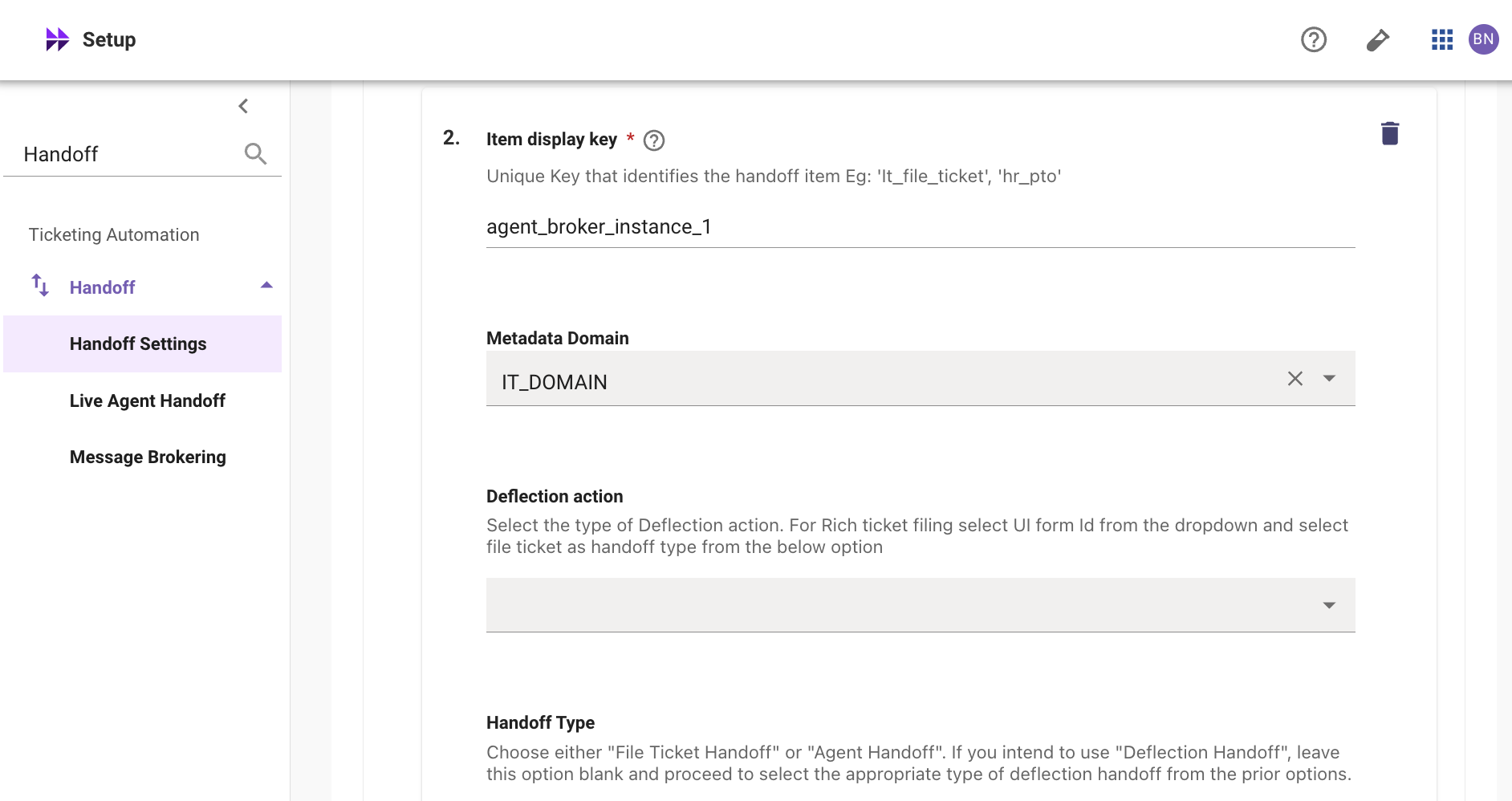

1.7: Configure Smart Handoff

  1. Navigate to Handoff > Handoff Settings

  2. Add a new Item Display Key with the following rule: IF (context.domain_candidates[0].domain == "IT_DOMAIN") THEN 1.0 ELSE 0.5

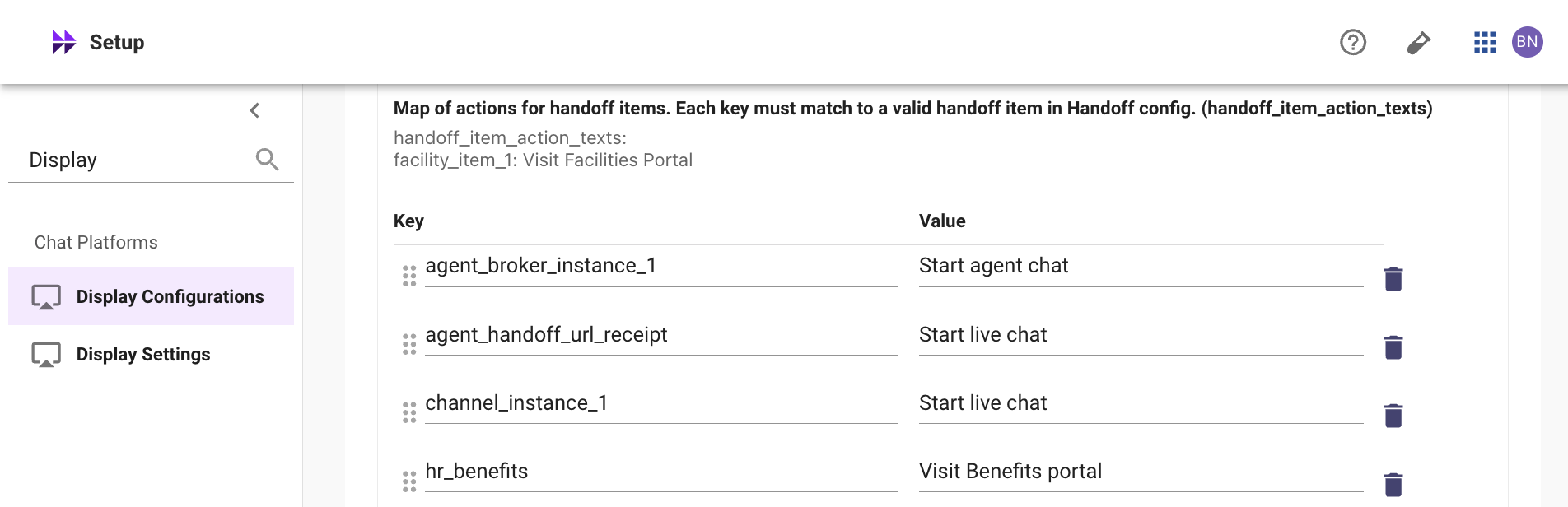

  3. Navigate to Display Configurations > Handoff

  4. Ensure the Handoff Identifier (agent_broker_instance_1) is set

  5. Set the Value field to a user-friendly name (e.g., Live Chat) — this is what users will see when selecting this handoff option

Note: If the Handoff Identifier is not set in Display Configurations, the “Start agent chat” button will not appear in the AI Assistant.

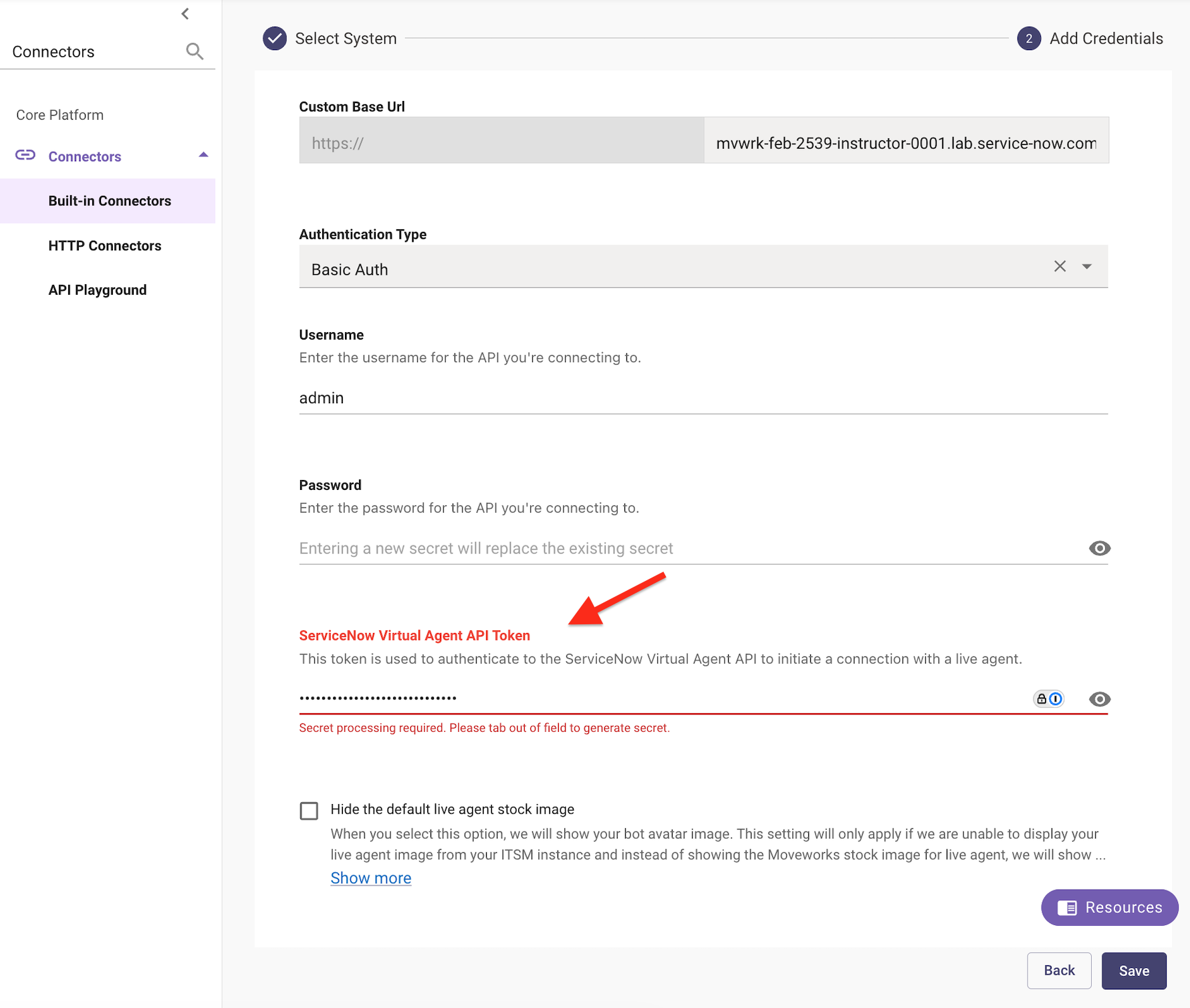

1.8: Update ServiceNow Connector with Token

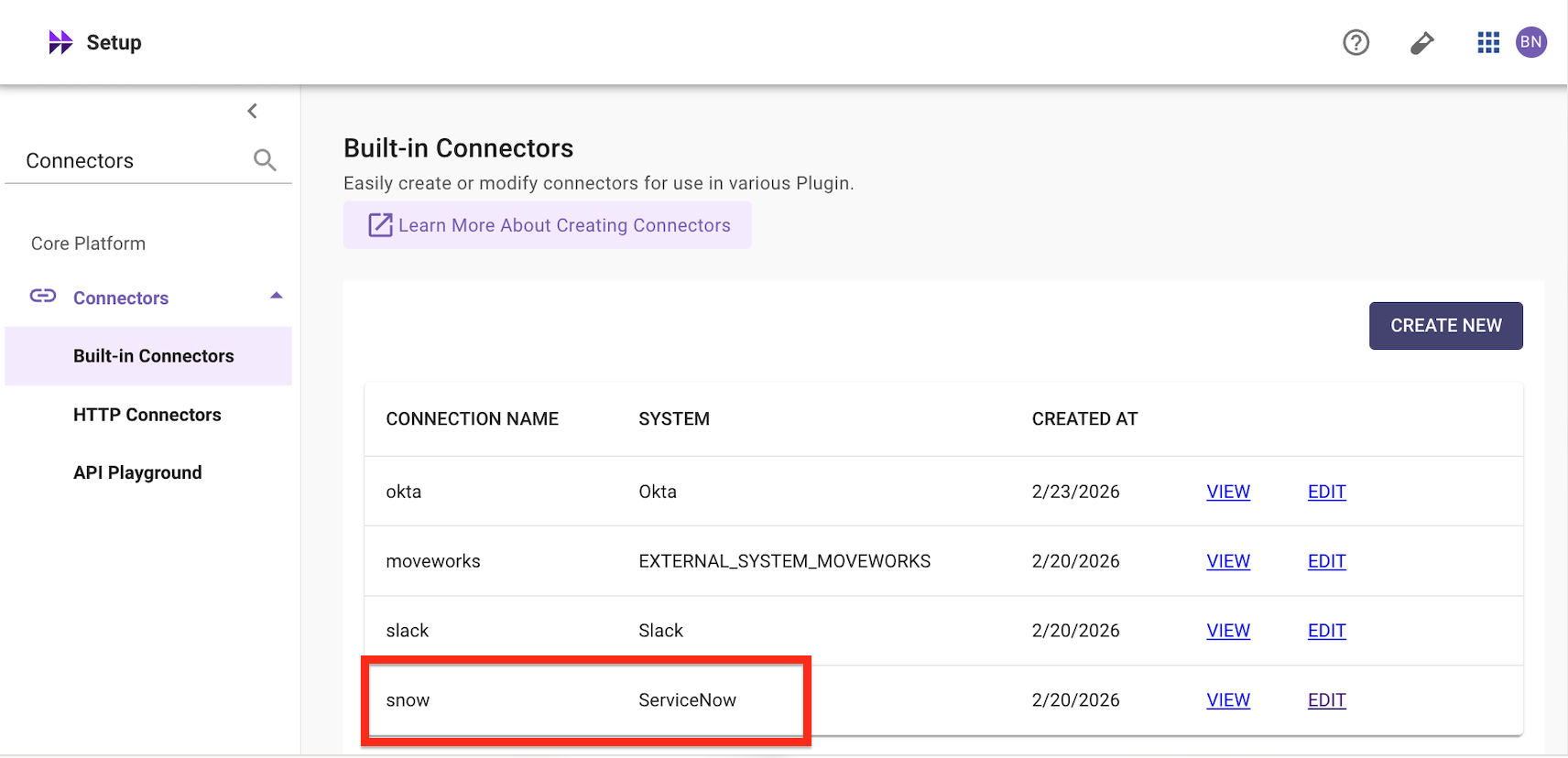

  1. In MyMoveworks, navigate to Connectors > Built-in Connectors

  2. Find the ServiceNow connector for your lab instance and click Edit

  3. Add the token password from Step 3 to the ServiceNow Virtual Agent API Token field

  4. Click Save

1.9: Set Up Your Agent in ServiceNow

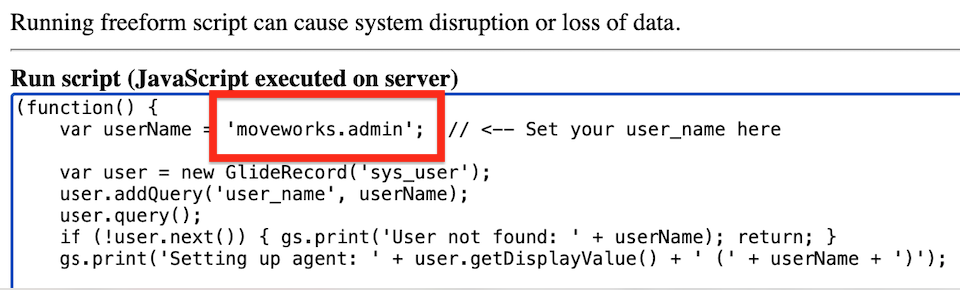

Run the following script in Scripts - Background to configure your user as a live agent. Replace CHANGE_ME with your ServiceNow username:

Note 1: Make sure the instance is set to Global scope.
Note 2: The script is pre-configured to set up moveworks.admin (Jordan Taylor) as the live agent. You cannot answer your own live agent chat — the agent receiving the chat must be a different user than the one initiating the handoff.

1(function() {
2 var userName = 'CHANGE_ME'; // <-- Set your moveworks_admin here
3
4 var user = new GlideRecord('sys_user');
5 user.addQuery('user_name', userName);
6 user.query();
7 if (!user.next()) { gs.print('User not found: ' + userName); return; }
8 gs.print('Setting up agent: ' + user.getDisplayValue() + ' (' + userName + ')');
9
10 // Add to Agent Chat Group
11 var grp = new GlideRecord('sys_user_group');
12 grp.addQuery('name', 'Agent Chat Group');
13 grp.query();
14 if (!grp.next()) { gs.print('ERROR: Agent Chat Group not found'); return; }
15
16 var gm = new GlideRecord('sys_user_grmember');
17 gm.addQuery('group', grp.sys_id);
18 gm.addQuery('user', user.sys_id);
19 gm.query();
20 if (!gm.next()) {
21 gm.newRecord();
22 gm.group = grp.sys_id;
23 gm.user = user.sys_id;
24 gm.insert();
25 gs.print(' Added to Agent Chat Group');
26 } else {
27 gs.print(' Already in Agent Chat Group');
28 }
29
30 // Grant awa_agent role
31 var role = new GlideRecord('sys_user_role');
32 role.addQuery('name', 'awa_agent');
33 role.query();
34 if (role.next()) {
35 var hr = new GlideRecord('sys_user_has_role');
36 hr.addQuery('user', user.sys_id);
37 hr.addQuery('role', role.sys_id);
38 hr.query();
39 if (!hr.next()) {
40 hr.newRecord();
41 hr.user = user.sys_id;
42 hr.role = role.sys_id;
43 hr.insert();
44 gs.print(' Granted awa_agent role');
45 } else {
46 gs.print(' Already has awa_agent role');
47 }
48 }
49
50 // Create agent presence
51 var ap = new GlideRecord('awa_agent_presence');
52 ap.addQuery('agent', user.sys_id);
53 ap.query();
54 if (!ap.next()) {
55 ap.newRecord();
56 ap.agent = user.sys_id;
57 var ps = new GlideRecord('awa_presence_state');
58 ps.addQuery('name', 'Available');
59 ps.query();
60 if (ps.next()) ap.current_presence_state = ps.sys_id;
61 ap.insert();
62 gs.print(' Created agent presence (Available)');
63 } else {
64 gs.print(' Agent presence exists | state=' + ap.current_presence_state.getDisplayValue());
65 }
66
67 // Create Chat capacity
68 var ch = new GlideRecord('awa_service_channel');
69 ch.addQuery('name', 'Chat');
70 ch.query();
71 if (ch.next()) {
72 var ac = new GlideRecord('awa_agent_capacity');
73 ac.addQuery('user', user.sys_id);
74 ac.addQuery('channel', ch.sys_id);
75 ac.query();
76 if (!ac.next()) {
77 ac.newRecord();
78 ac.user = user.sys_id;
79 ac.channel = ch.sys_id;
80 ac.applied_max_capacity = 4;
81 ac.insert();
82 gs.print(' Created Chat capacity (max=4)');
83 } else {
84 gs.print(' Chat capacity exists');
85 }
86
87 // Create Chat availability
88 var aca = new GlideRecord('awa_agent_channel_availability');
89 aca.addQuery('agent', user.sys_id);
90 aca.addQuery('service_channel', ch.sys_id);
91 aca.query();
92 if (!aca.next()) {
93 aca.newRecord();
94 aca.agent = user.sys_id;
95 aca.service_channel = ch.sys_id;
96 aca.available = true;
97 aca.insert();
98 gs.print(' Created Chat availability (available=true)');
99 } else {
100 gs.print(' Chat availability exists');
101 }
102 }
103
104 gs.print('\nDone! Set your status to Available in Service Operations Workspace.');
105})();

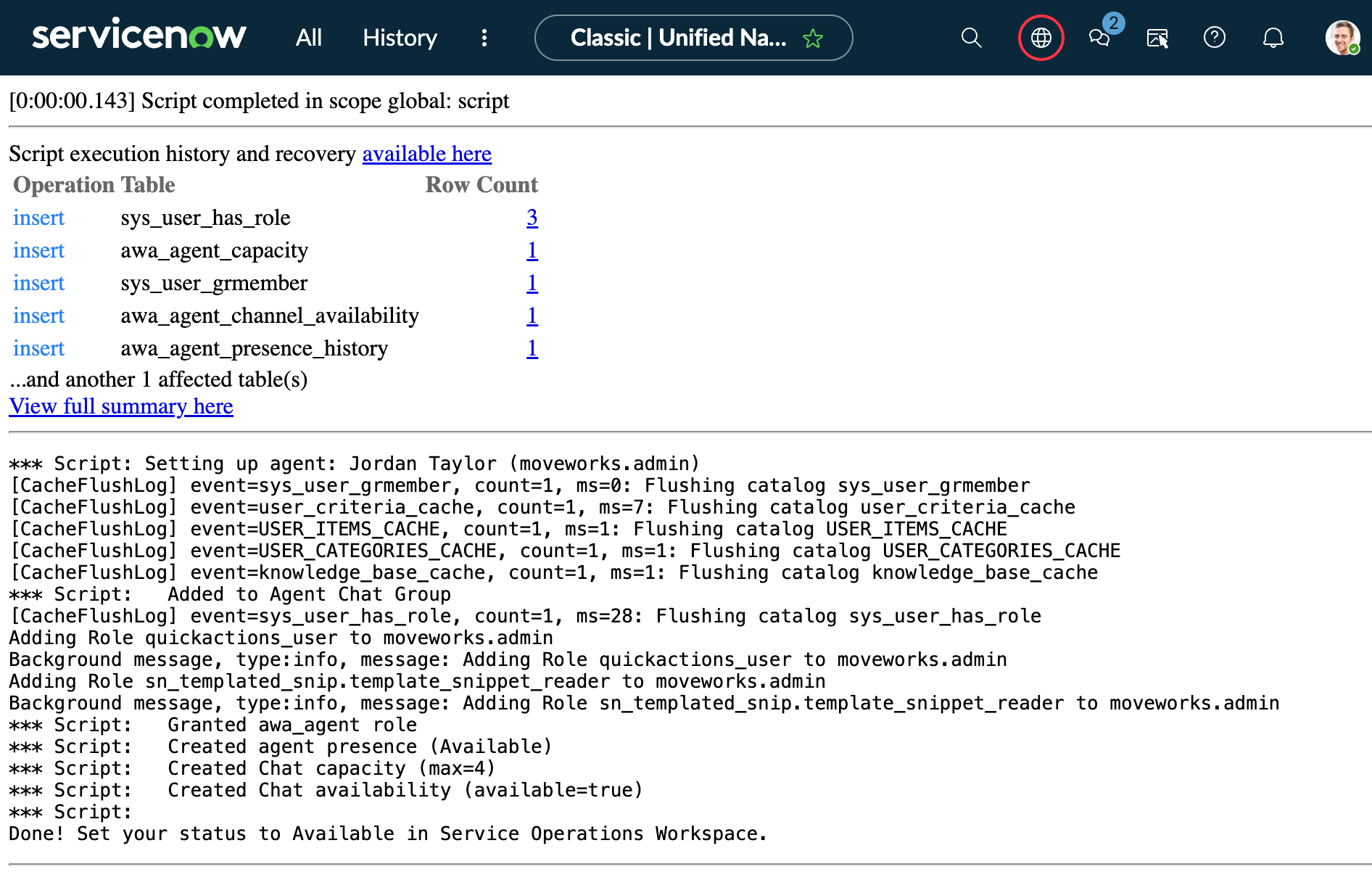

Expected Output:

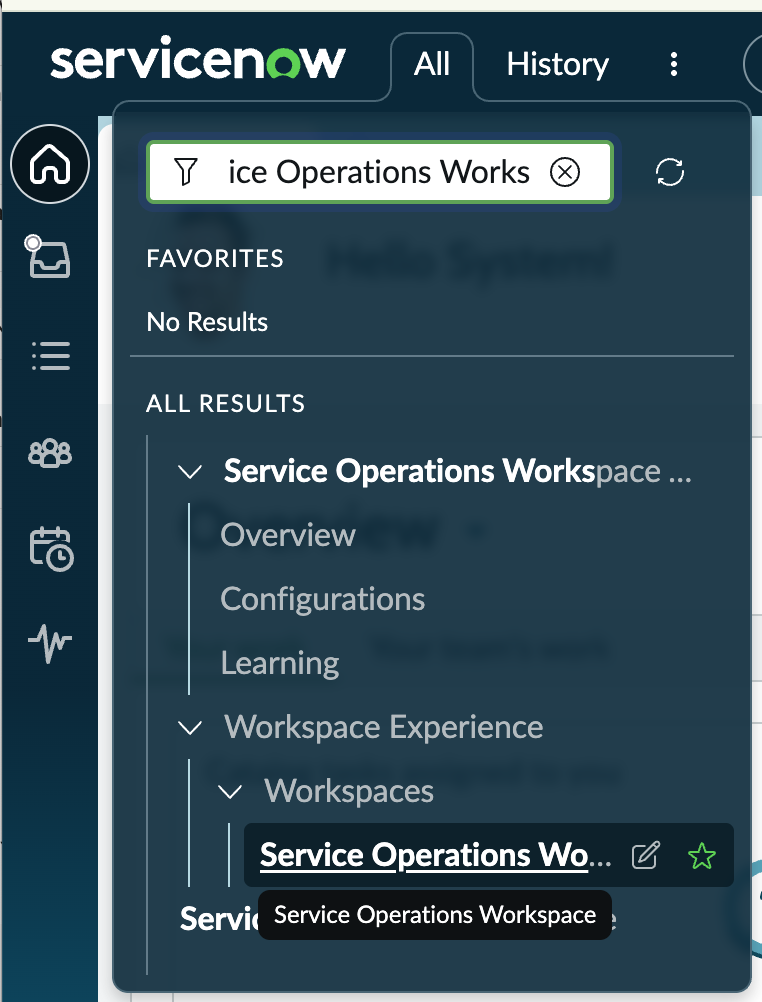

Impersonate moveworks.admin (Jordan Taylor), then open Service Operations Workspace in ServiceNow and set your status to Available — this is the agent session that will receive the test handoff in the next section.


✅ 2: Verification & Testing

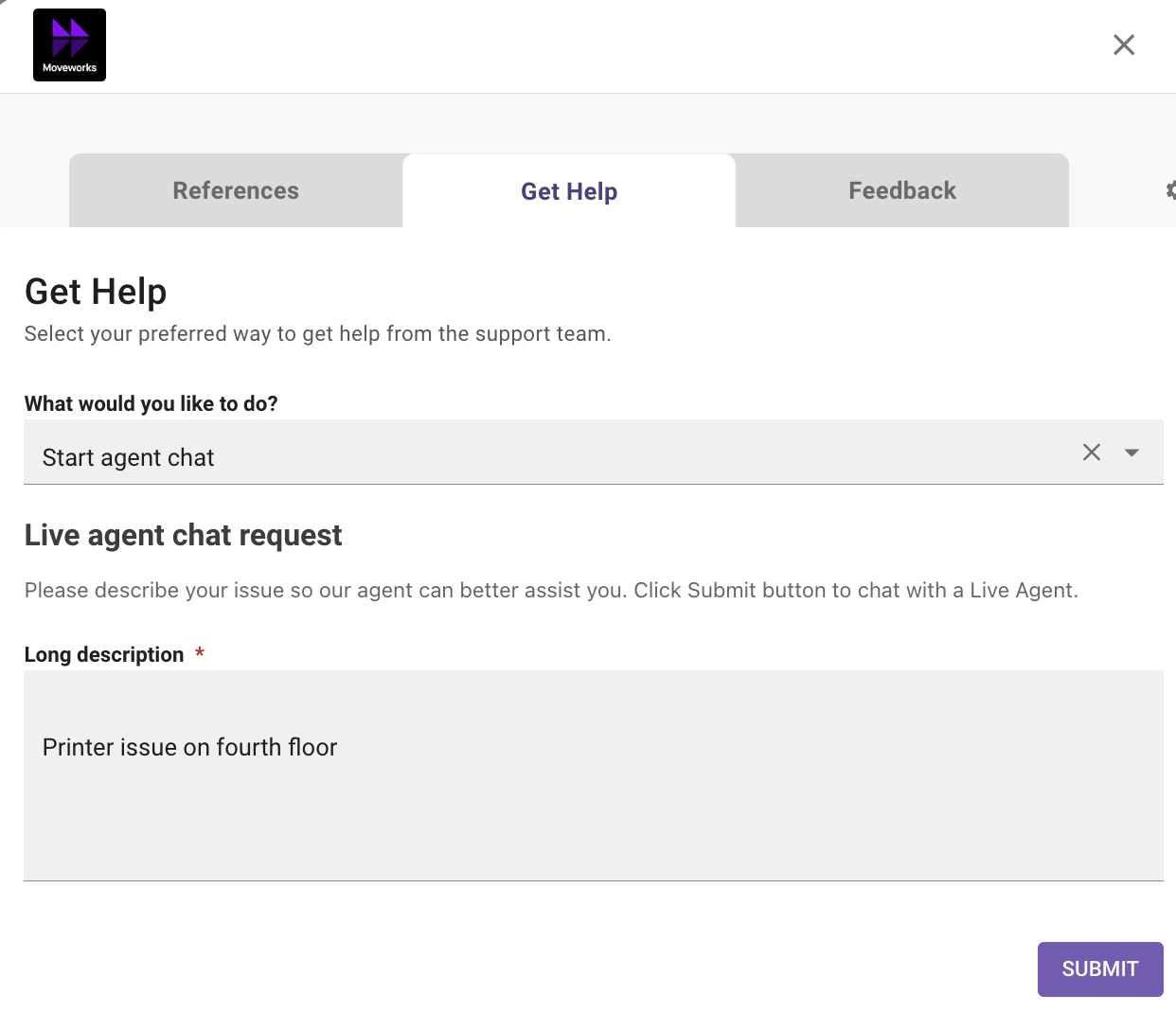

2.1: Test the Handoff

  1. Open your AI Assistant

  2. Start a conversation and click Get Help

  3. Select the Start agent chat

  4. Verify the description and click Submit

  5. The live agent session should begin — check Service Operations Workspace (logged in as Jordan Taylor) for the incoming chat

2.2: Troubleshooting

SymptomLikely CauseHow to Check
”No agents available”Agent not set to Available in SOW, or schedule config blockingVerify agent status in SOW; check awa_agent_presence_capacity API. In ServiceNow, navigate to Service Operations Workspace, set your status to Available, and verify agents are available via: GET [your_instance]/api/now/table/awa_agent_presence_capacity?sysparm_query=aca_available=true
Interaction created but immediately closesAWA queue, assignment rule, or eligibility pool missing/misconfiguredCheck interaction.list — if active=false and queue is empty, the AWA routing is broken
”Start agent chat” button doesn’t appearHandoff Identifier not set in Display ConfigurationsVerify Display Configurations > Handoff has the correct identifier
Auth errors from ServiceNowAPI key not set in auth profile, or token mismatchVerify auth profile password and connector token match

🪞 3: Reflecting on This Configuration

Through this lab, you’ve learned the following:

  • How to configure Moveworks Live Agent Handoff to broker chat sessions between users and ServiceNow agents
  • How to connect Moveworks and ServiceNow using the Virtual Agent Bot-to-Bot API with proper authentication (API key + token verification)
  • How to configure Smart Handoff rules to control when the live agent option appears based on domain context
  • How to verify agent availability and troubleshoot common issues like missing AWA queue configuration, closed interactions, and authentication mismatches
  • How the end-to-end flow works: availability check → interaction creation → AWA routing → agent assignment → message brokering

⚙️ 4: Configuration Summary

ComponentWhereWhat
API KeyMyMoveworks > HTTP ConnectorsGenerated credential for ServiceNow auth profile
Auth Profile PasswordServiceNow > VA Bot to Bot > POST > Auth ProfileAPI key entered as password
Token Verification PasswordServiceNow > token_verification_list.doPassword set on Moveworks token record
Live Agent HandoffMyMoveworks > Handoff > Live Agent HandoffAgent Broker Handoff config with trigger rule and integration ID
Smart HandoffMyMoveworks > Handoff > Handoff SettingsItem display key and display configuration
Connector TokenMyMoveworks > Connectors > Built-in ConnectorsToken verification password added to ServiceNow connector
Agent SetupServiceNow > Scripts - BackgroundAgent added to Chat queue with roles, presence, and capacity
