Lab #1: Connectors & API Playground

---

Key Concepts

Moveworks uses connectors to establish secure links with your enterprise systems. Understanding how to validate these connections is the first step in any implementation:

• Connector Instance: A unique configuration that stores the authentication credentials (e.g., Basic Auth or OAuth) and the Base URL for an external system like ServiceNow.
• API Playground: A built-in testing environment that allows administrators to execute real-time API calls to verify that Moveworks has the correct permissions to fetch data.
• Response Payload: The raw JSON data returned by the system. Reviewing this helps you identify the exact field names (e.g., sys_id, user_name) required for later mapping steps.
• Status Codes: Standard HTTP indicators (like 200 for success or 401 for unauthorized) used to diagnose connection or permission issues during setup. Relevant Documentation:
• Moveworks Help: Creating Connectors
• Moveworks Help: Using the API Playground

---

🛠️ 1: Walkthrough

1.1: Instantiate your ServiceNow Connector

1. Navigate to Connectors > Built-in Connectors in Moveworks Setup

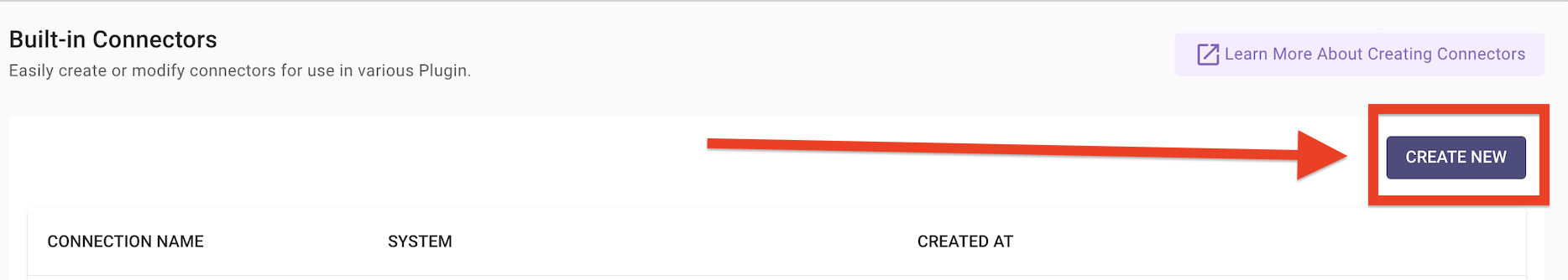

2. Click Create New

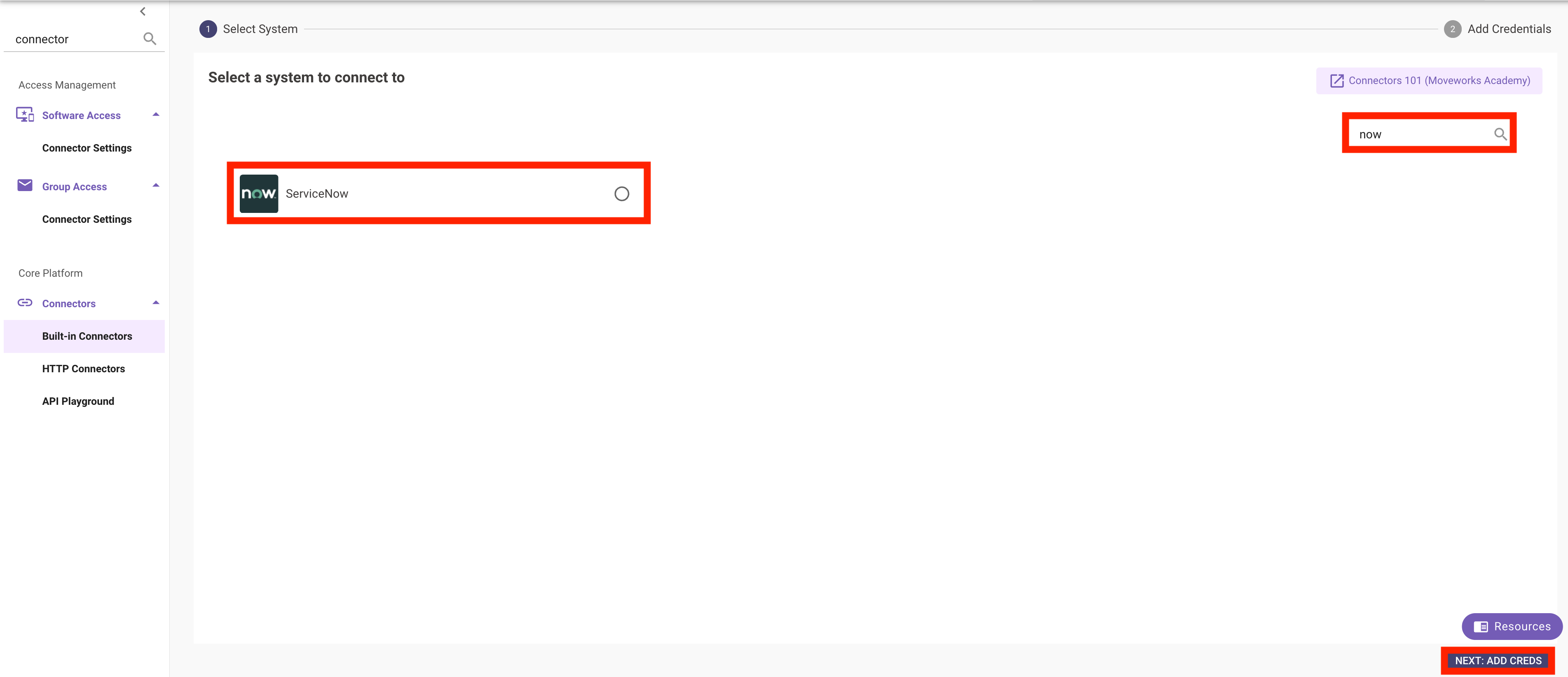

3. Use the Search Bar in the upper right hand side to find the ServiceNow connector & select it

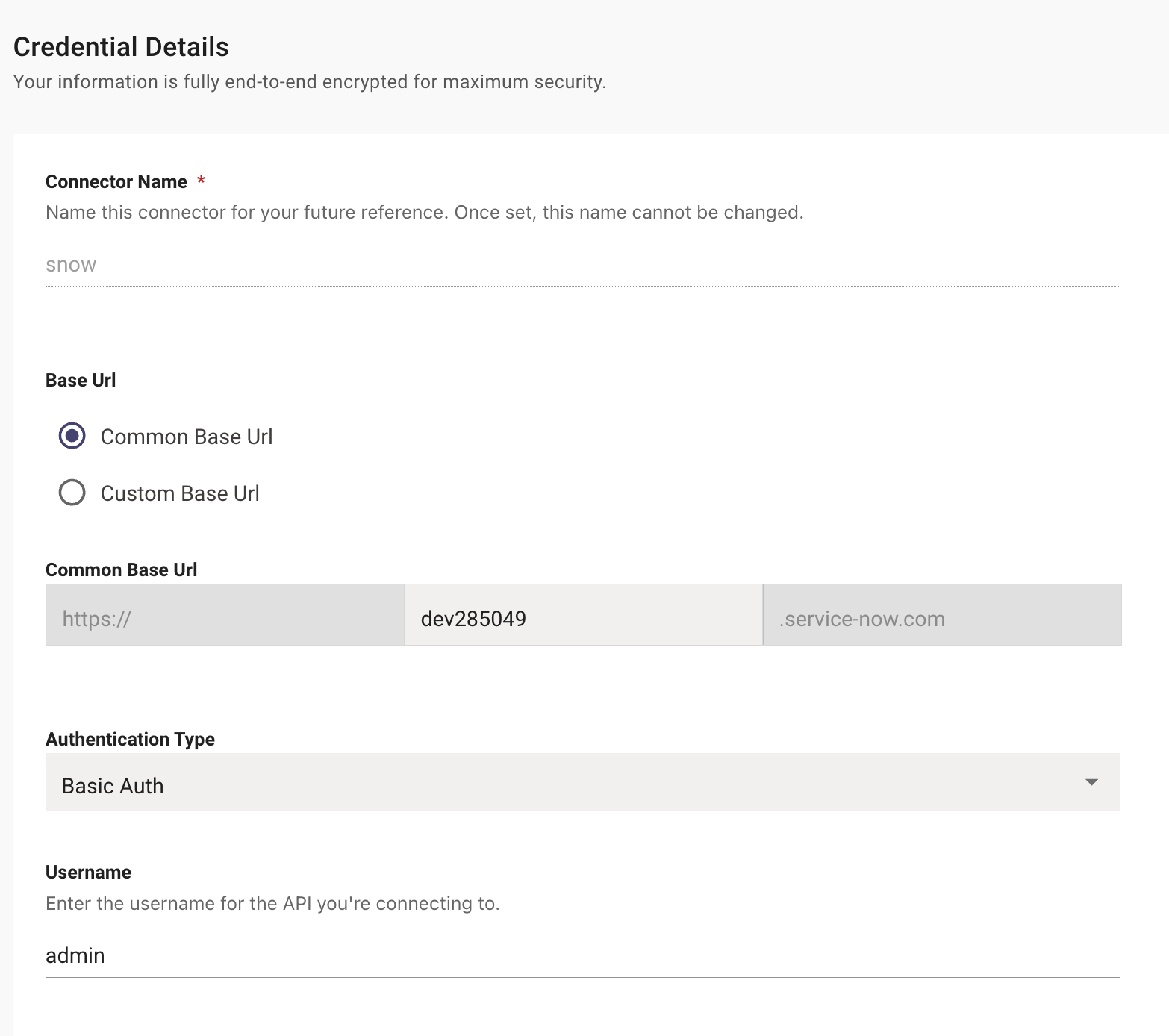

4. Enter the following values (everything else can remain blank)

   ServiceNow (snow)

   • Common Base URL: Your PDI instance (ex. dev######)
   • Auth Type: Basic Auth
   • Username: admin (unless you changed it)
   • Password: Your admin password

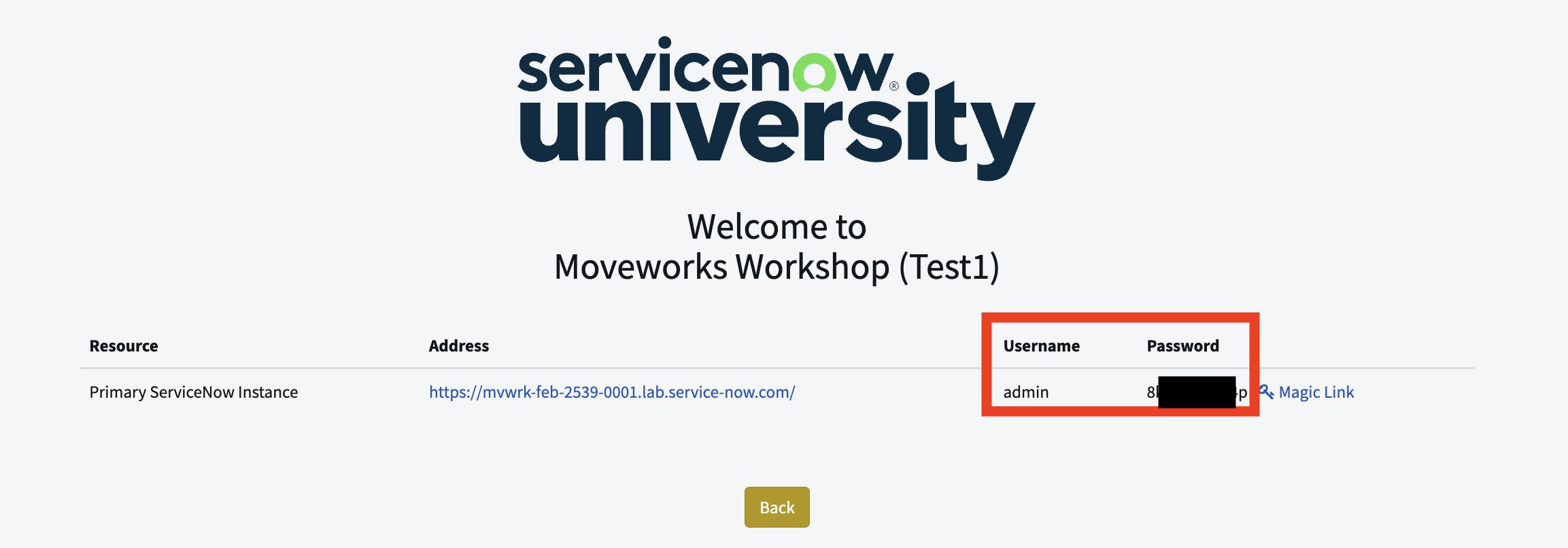

     • You can find the admin password on the page you were brought to after signing up for your student instance in Lab 0, as shown in the below screenshot

1.2: Confirm Connection - API Playground

1. Navigate to Connectors > API Playground
2. Click Select Connector
3. Select the snow connector created in Part 1
4. Click into the API Collection search bar on the left hand side and search for sys_user

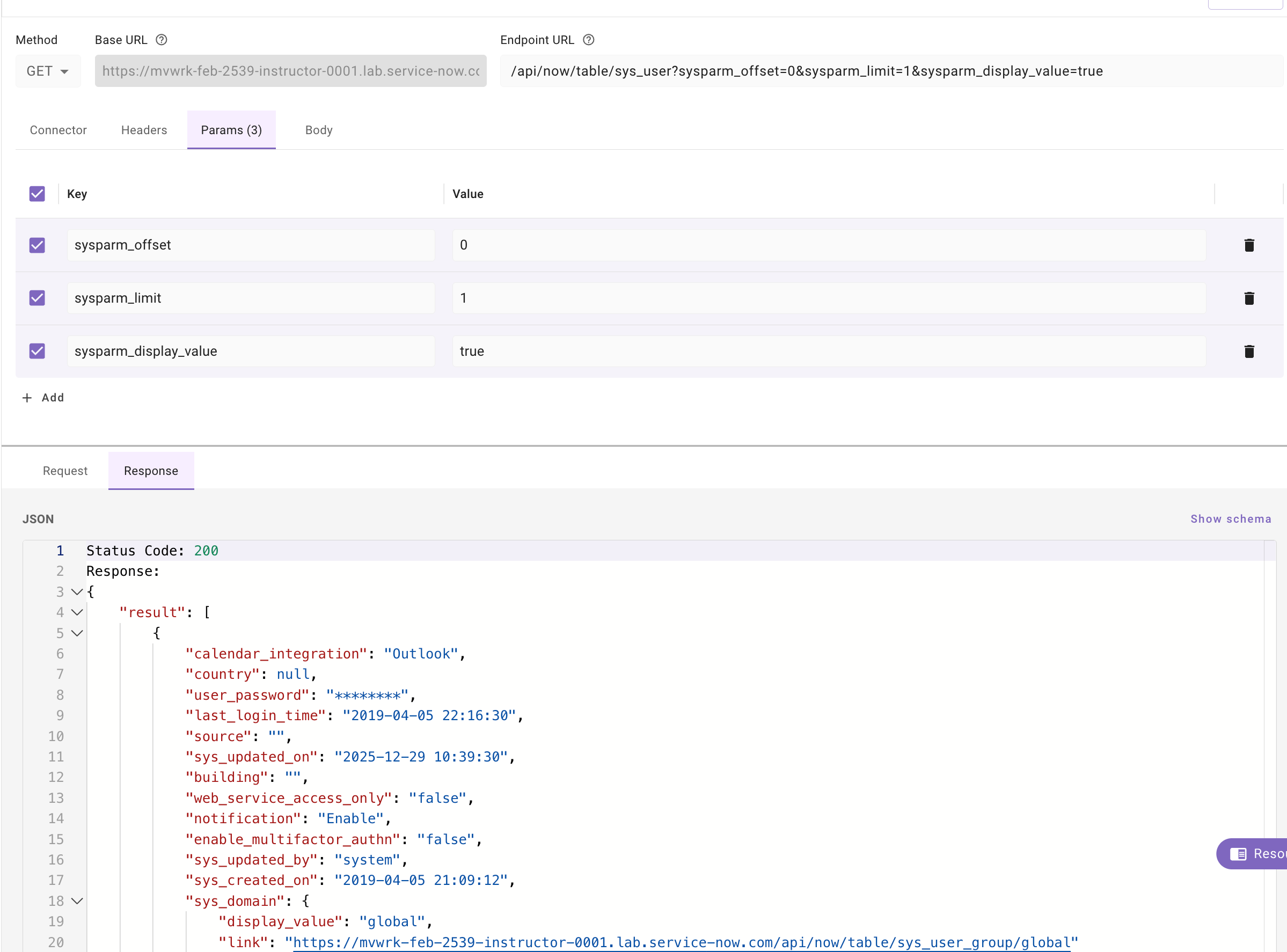

5. Select the GET API query, and then click Test to validate that the connector is working as expected

---

✅ 2: Verification & Next Steps

Confirm Access:

• Validate that when you click test, you are getting a 200 response indicating that the ServiceNow instance is properly connected to Moveworks

🪞 3: Reflecting on This Configuration

Through this guide, you’ve learned the following:

• How to connect an external system to Moveworks
• How to validate that connection using API Playground How this will come up during live implementations:
• After creating a new connector, always validate that the connector has the permissions required to deliver the full integration capabilities IE Ensure the connector allows Moveworks to:
  • Query the users in the environment
  • For Knowledge
    • Query the content
    • Query the permissions for users and groups
  • For Ticketing
    • Query the tables/endpoints that Moveworks will support

---

⚙️ 4: Configuration Details

Use the table below to fill in the required fields accurately.
