Lab #2: User Identity & Service Account Setup

Key Concepts

The User Roster is the “brain” of Moveworks identity, determining who can talk to the bot and what data belongs to them. Key components include:

• Source Connectors: The primary systems (usually an ITSM or IDAM) from which Moveworks pulls raw employee data to build the user roster.
• Processors: Automated functions that clean or “resolve” data during ingestion, such as transforming a manager’s sys_id into a clickable name or calculating local time zones.
• Advanced Mode Mapping: A JSON-based configuration where you define precisely which source fields (like u_employee_id) map to Moveworks profile attributes.
• Bot Access Rule: A global logic gate (often set to TRUE or controlled via DSL) that determines if a user is permitted to interact with the AI Assistant.

Relevant Documentation:

• Moveworks Help: User Identity Overview
• Moveworks Help: Configuring User Ingestion
• Moveworks Help: Configuring the Service Account
• Moveworks Help: User Data Object

🛠️ 1: Walkthrough

1.1: Setup User Roster / User Ingestion

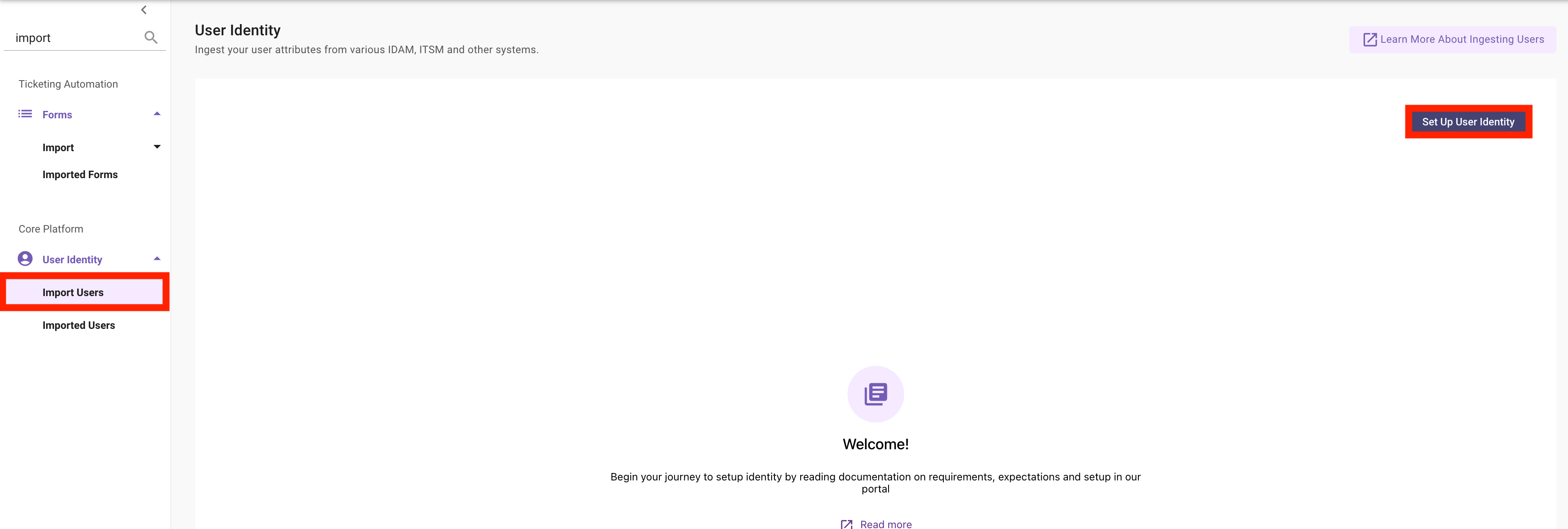

1. In Moveworks Setup, enter Import Users into the search bar & navigate to User Identity > Import Users > Setup User Identity



2. Validate that you have snow as the primary source connector and select Next

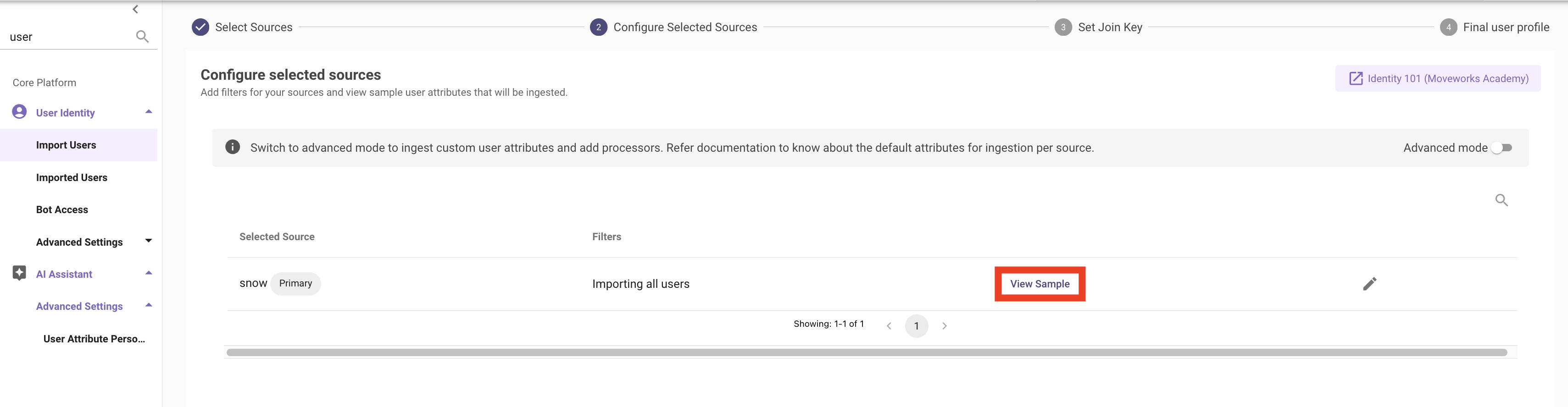

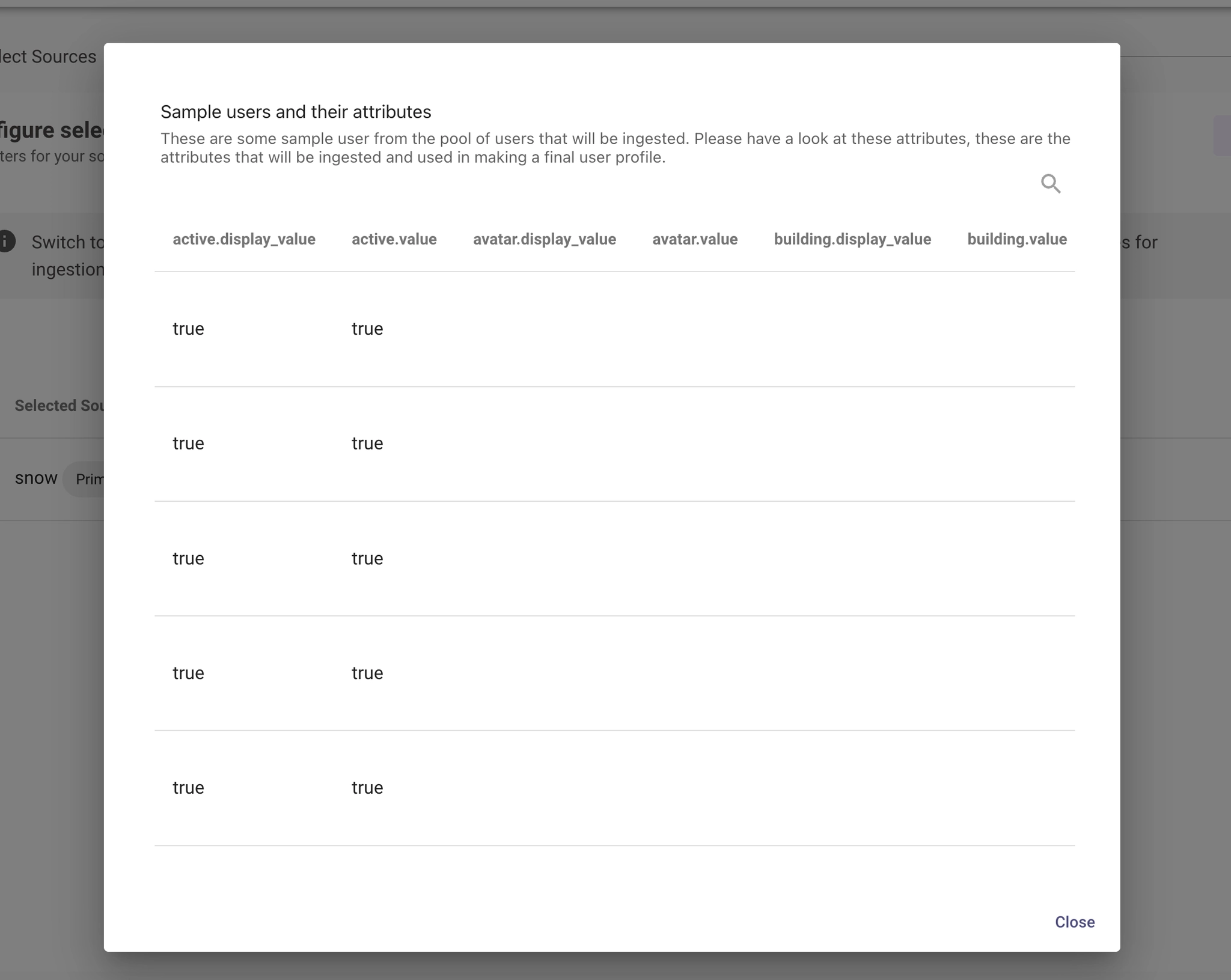

3. Click View Sample for each source to ensure users are returned.

   If users are not returned, go back to your connectors and verify that your credentials were entered properly.

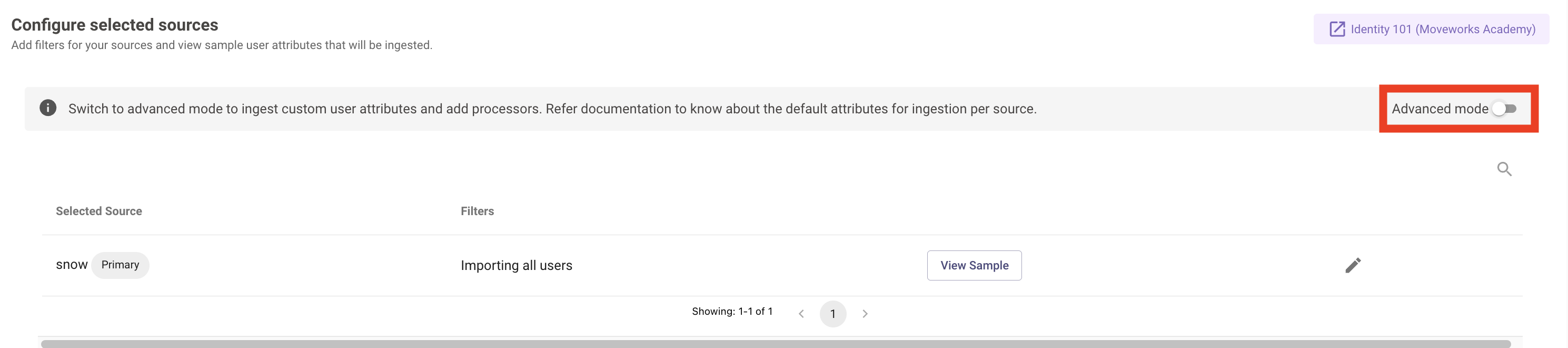

4. Now that we have confirmed we can see users, we will use the following configuration example in Advanced Mode, to map user attributes

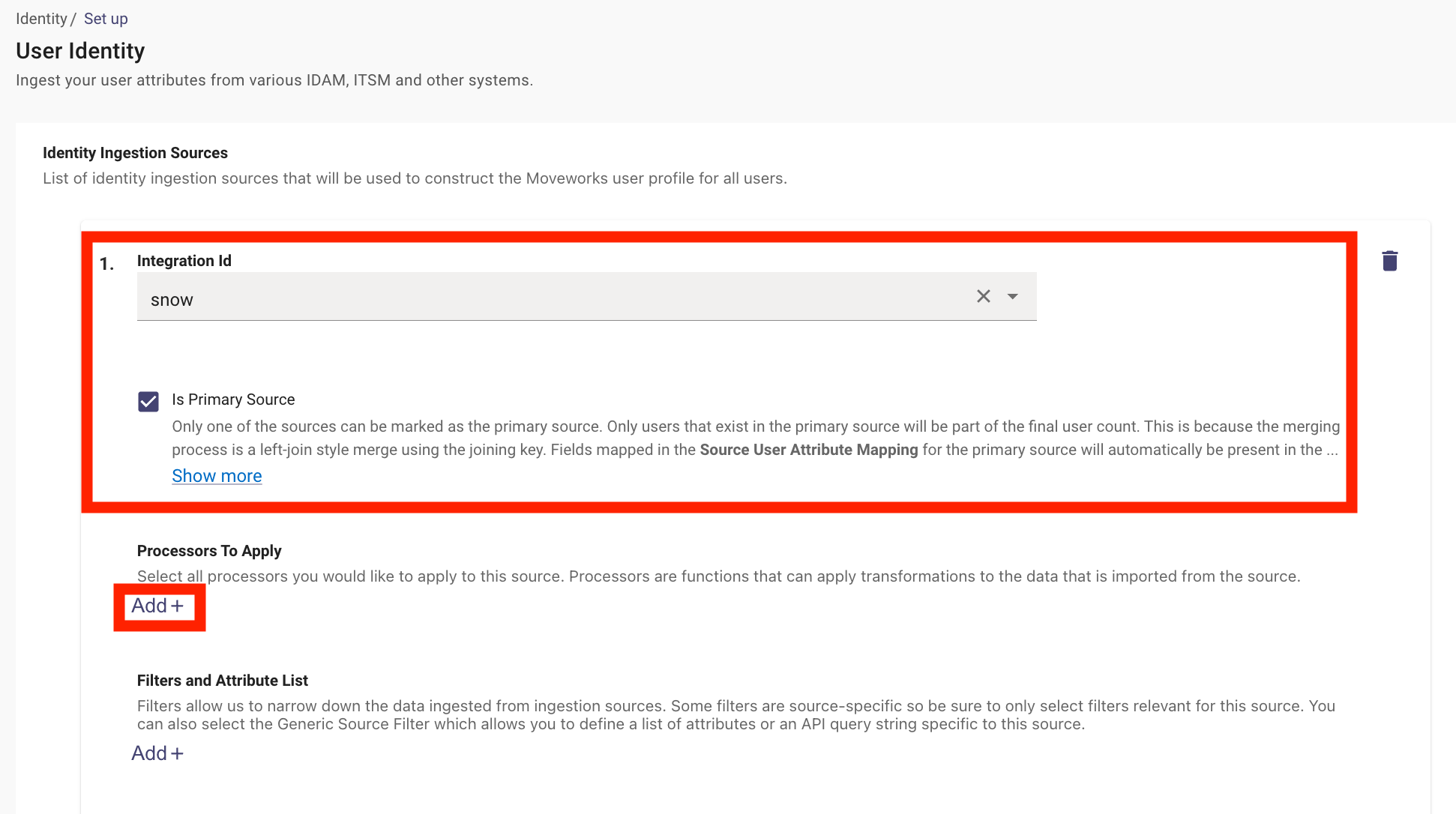

5. Ensure the following values are selected:

   1. Integration Id: snow
   2. Is Primary Source: ✅

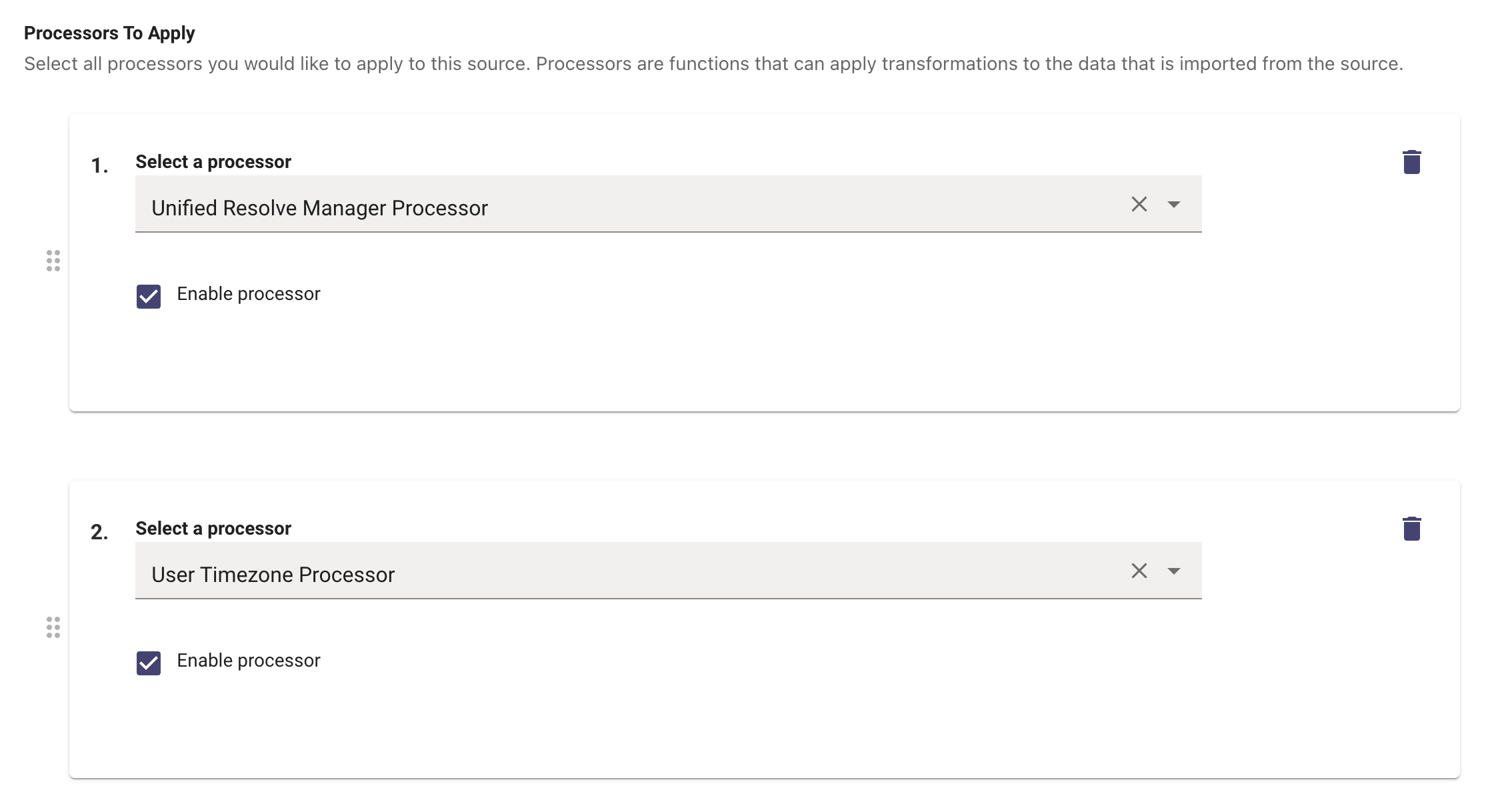

6. Add the Unified Resolver Manager Process & User Timezone Processor

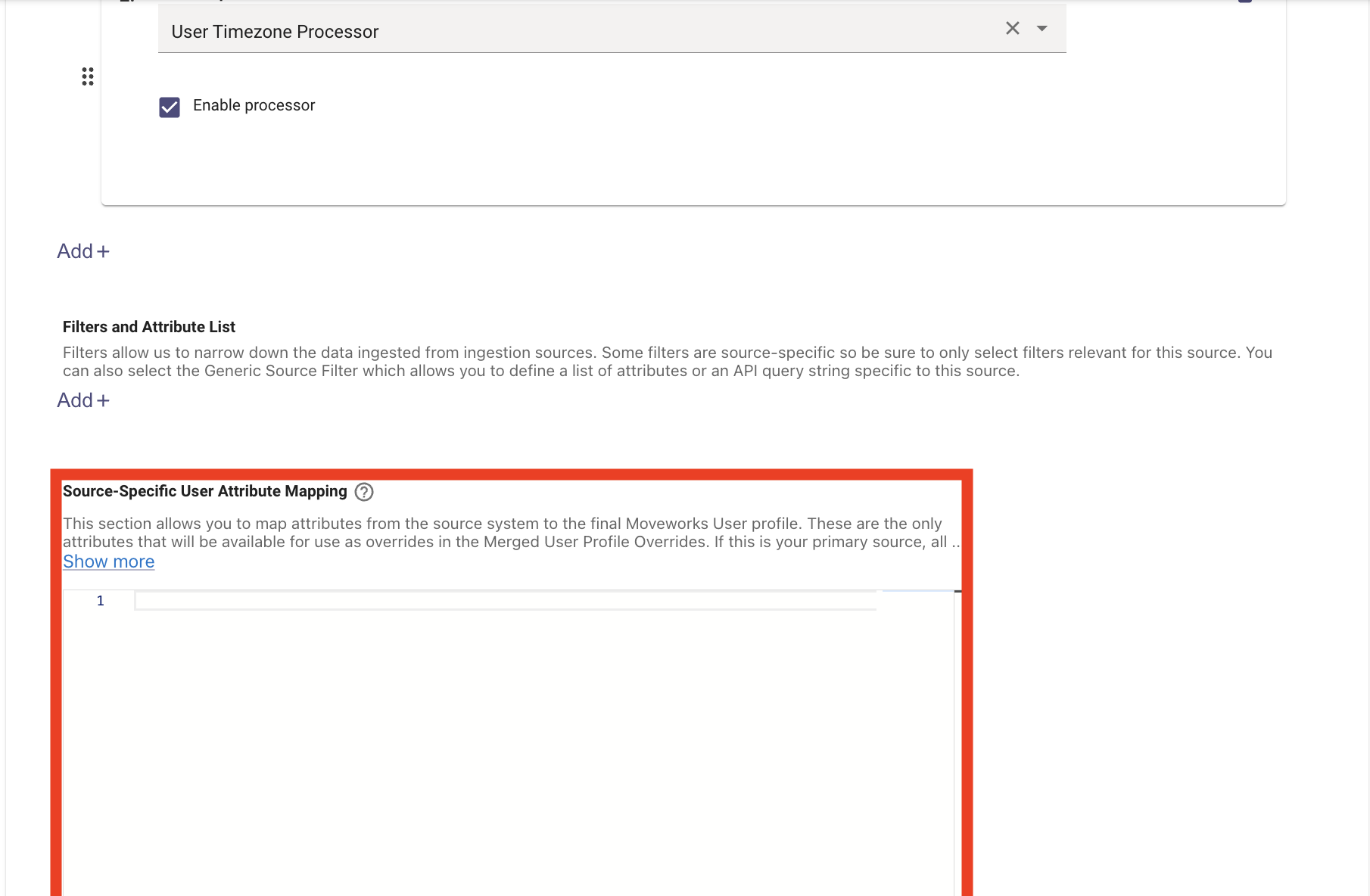

7. Copy the JSON block below into the Source Specific User Attribute Mapping

   Note: For new implementations, the system initializes using the default JSON configuration shown below. These mappings represent the standard fields synced when Moveworks first connects to a ServiceNow (NOW) instance.

   • Left-hand side: Attributes within the Moveworks User Object.
   • Right-hand side: Source field names retrieved from ServiceNow, transformed via Moveworks DSL (Bender).

   Detailed instruction on Moveworks DSL syntax and logic will be covered in a subsequent laboratory session.



1
{
2
  "internal_fields": {
3
    "manager_resolver": "$TRIM(IF sys_id THEN sys_id.display_value OR \"\" ELSE NULL)"
4
  },
5
  "phone_number": "$TRIM(IF phone THEN phone.display_value OR \"\" ELSE NULL)",
6
  "user_name": "$TRIM(IF user_name THEN user_name.display_value OR \"\" ELSE NULL)",
7
  "employee_id": "$TRIM(IF employee_number THEN employee_number.display_value OR \"\" ELSE NULL)",
8
  "department": "$TRIM(IF department THEN department.display_value OR \"\" ELSE NULL)",
9
  "full_name": "$TRIM(IF name THEN name.display_value OR \"\" ELSE NULL)",
10
  "user_id_info.user_email": "if $TRIM(IF email THEN email.display_value OR \"\" ELSE NULL) then [$TRIM($TRIM(IF email THEN email.display_value OR \"\" ELSE NULL))] else []",
11
  "city": "$TRIM(IF city THEN city.display_value OR \"\" ELSE NULL)",
12
  "country_code": "$TRIM(IF country THEN country.display_value OR \"\" ELSE NULL)",
13
  "email_addr": "$TRIM(IF email THEN email.display_value OR \"\" ELSE NULL)",
14
  "first_name": "$TRIM(IF first_name THEN first_name.display_value OR \"\" ELSE NULL)",
15
  "timezone": "$TRIM(IF time_zone THEN time_zone.display_value OR \"\" ELSE NULL)",
16
  "cost_center_name": "$TRIM(IF cost_center THEN cost_center.display_value OR \"\" ELSE NULL)",
17
  "role": "$TRIM(IF title THEN title.display_value OR \"\" ELSE NULL)",
18
  "manager_email": "(manager).value.$TRIM()",
19
  "user_id_info.user_itsm_id_info": [
20
    {
21
      "first_name": "$TRIM(IF first_name THEN first_name.display_value OR \"\" ELSE NULL)",
22
      "external_id": "$TRIM(IF sys_id THEN sys_id.display_value OR \"\" ELSE NULL)",
23
      "integration_id": "\"snow\"",
24
      "full_name": "$TRIM(IF name THEN name.display_value OR \"\" ELSE NULL)",
25
      "itsm_user_id": "$TRIM(IF user_name THEN user_name.display_value OR \"\" ELSE NULL)",
26
      "system": "\"SNOW\"",
27
      "last_name": "$TRIM(IF last_name THEN last_name.display_value OR \"\" ELSE NULL)"
28
    }
29
  ],
30
  "state": "$TRIM(IF state THEN state.display_value OR \"\" ELSE NULL)",
31
  "user_tags": {
32
    "FILTER()": {
33
      "items": [
34
        "\"BASIC_USER\"",
35
        {
36
          "CONDITIONAL()": {
37
            "condition": "$LOWERCASE(((vip.value OR \"\"))) == $LOWERCASE((\"TRUE\"))",
38
            "on_pass": "\"VIP\""
39
          }
40
        }
41
      ]
42
    }
43
  },
44
  "location": "$TRIM(IF location THEN location.display_value OR \"\" ELSE NULL)",
45
  "last_name": "$TRIM(IF last_name THEN last_name.display_value OR \"\" ELSE NULL)",
46
  "custom_data": {
47
    "u_password_expiry": "$TRIM(IF u_password_expiry_date THEN u_password_expiry_date.display_value OR \"\" ELSE NULL)"
48
  }
49
}

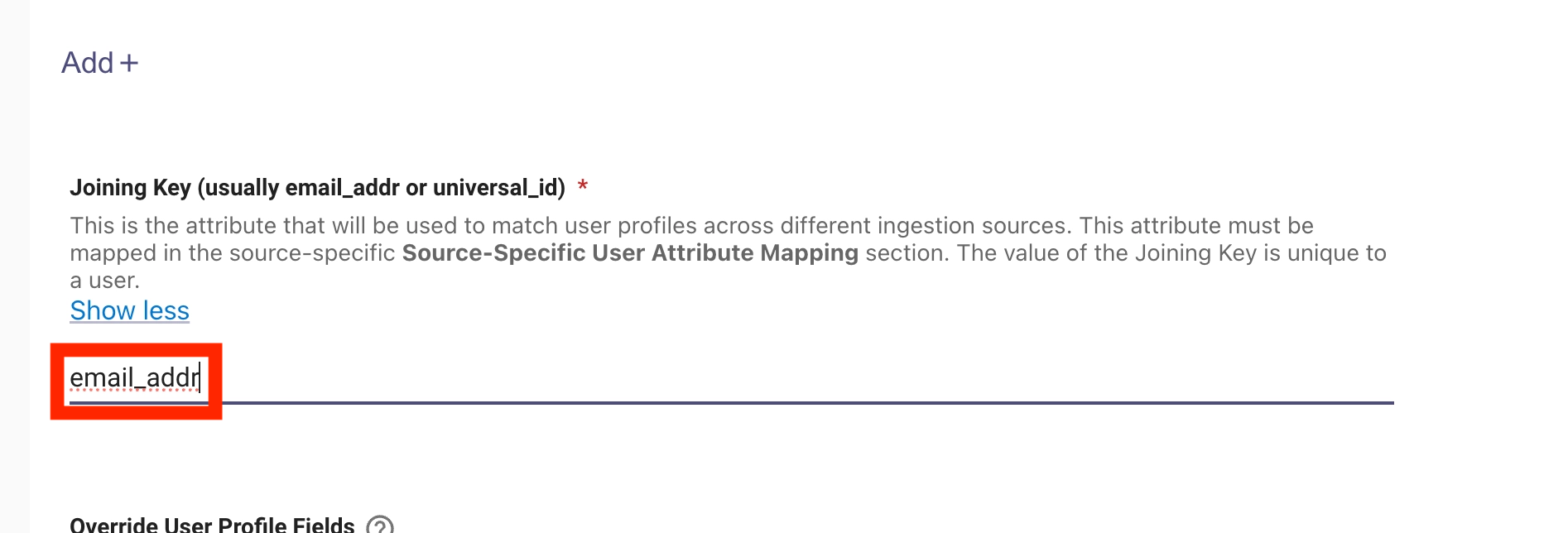

8. Set the Joining Key field to email_addr

   Note: The Joining Key is the unique identifier linking a user’s profile across all integrated systems (Chat, ITSM, HRIS, and IdP).

   ---

   Why it Matters

   • Identity Resolution: Maps a chat user (e.g., Slack) to their backend records (e.g., ServiceNow).
   • Security: Ensures sensitive actions like password resets are tied to a verified, authorized identity.
   • Data Integrity: Prevents duplicate records during multi-source syncs.

   Common Examples

   • Email Address (Most common)

   • Employee ID

   Requirement: A joining_key must be unique, immutable (permanent), and present across all integrated systems.



9. Review your configuration, then scroll down to the bottom of the page and click Submit

1.2: Setup the Moveworks Service Account

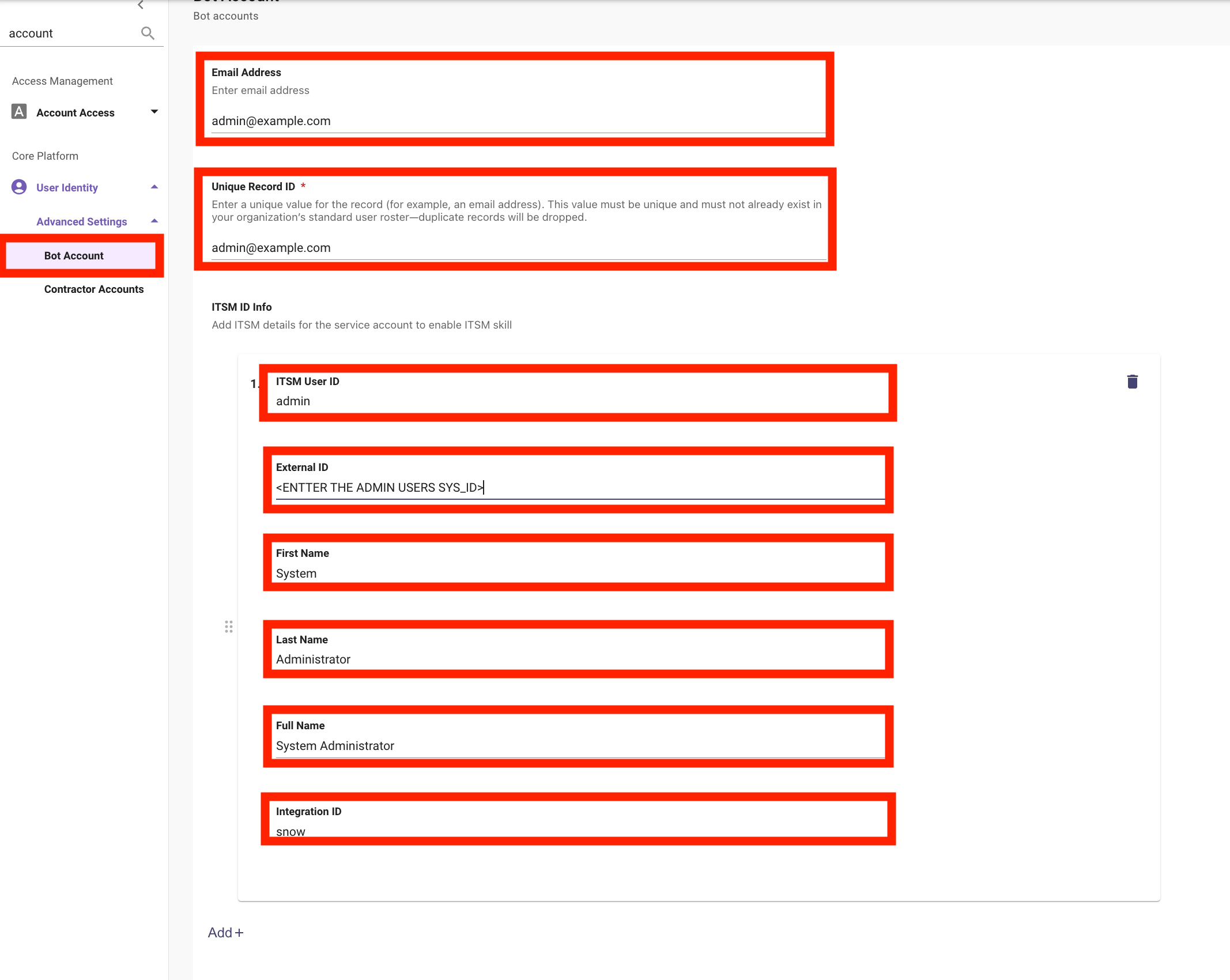

1. Navigate to the Bot Account page, and add the corresponding information for the Moveworks Service Account user for each field



2. After you enter your configuration, Submit your changes

1.3: Set up Bot Access Rule

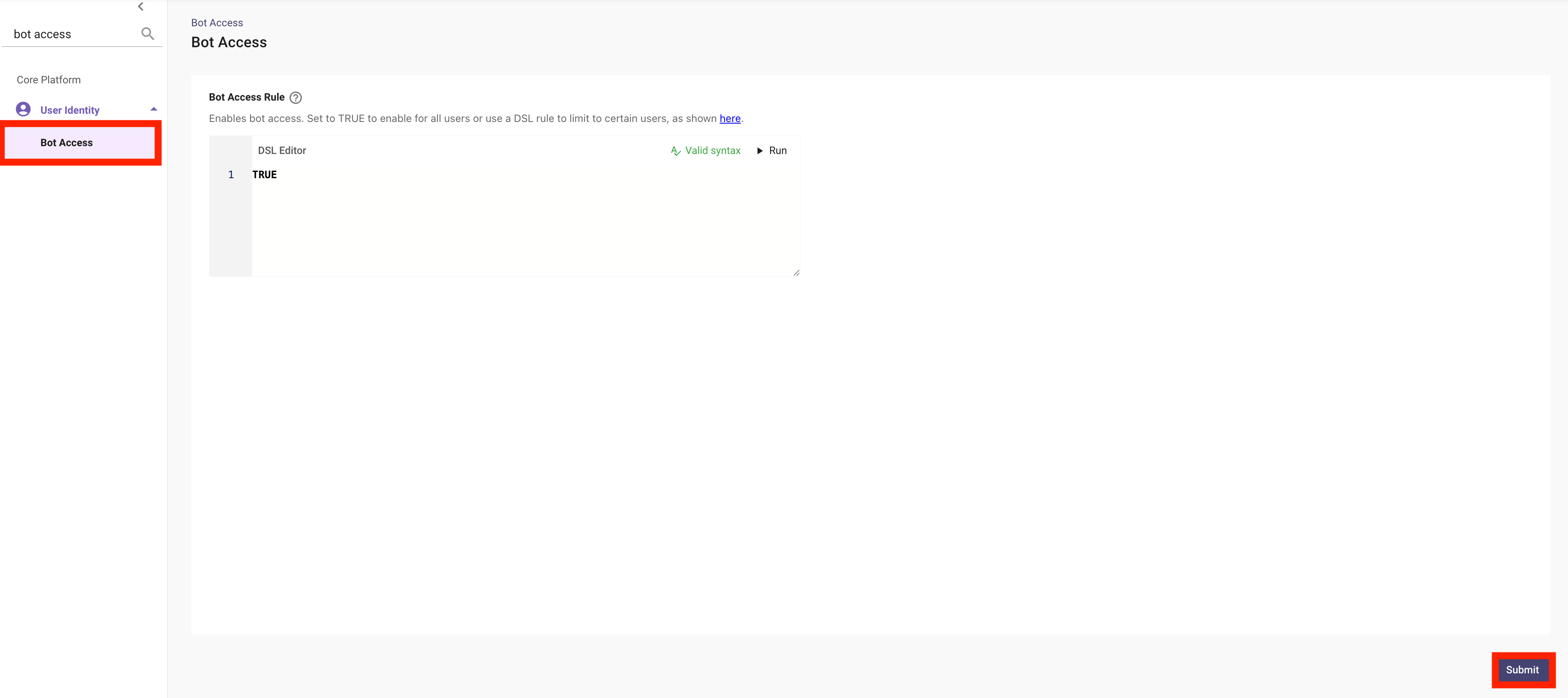

1. Navigate to User Identity > Bot Access, set the Bot Access Rule to TRUE



✅ 2: Verification & Next Steps

1. Wait for Processing:

   1. Now that we have configured the Moveworks User Identity Pipeline, we will need to wait for the user ingestion cycle to complete
      1. In a typical environment, the user roster refreshes every 4 hours
      2. If you are participating in a designated Moveworks Lab, your environment will refresh every 30 minutes.

2. Confirm Completion:

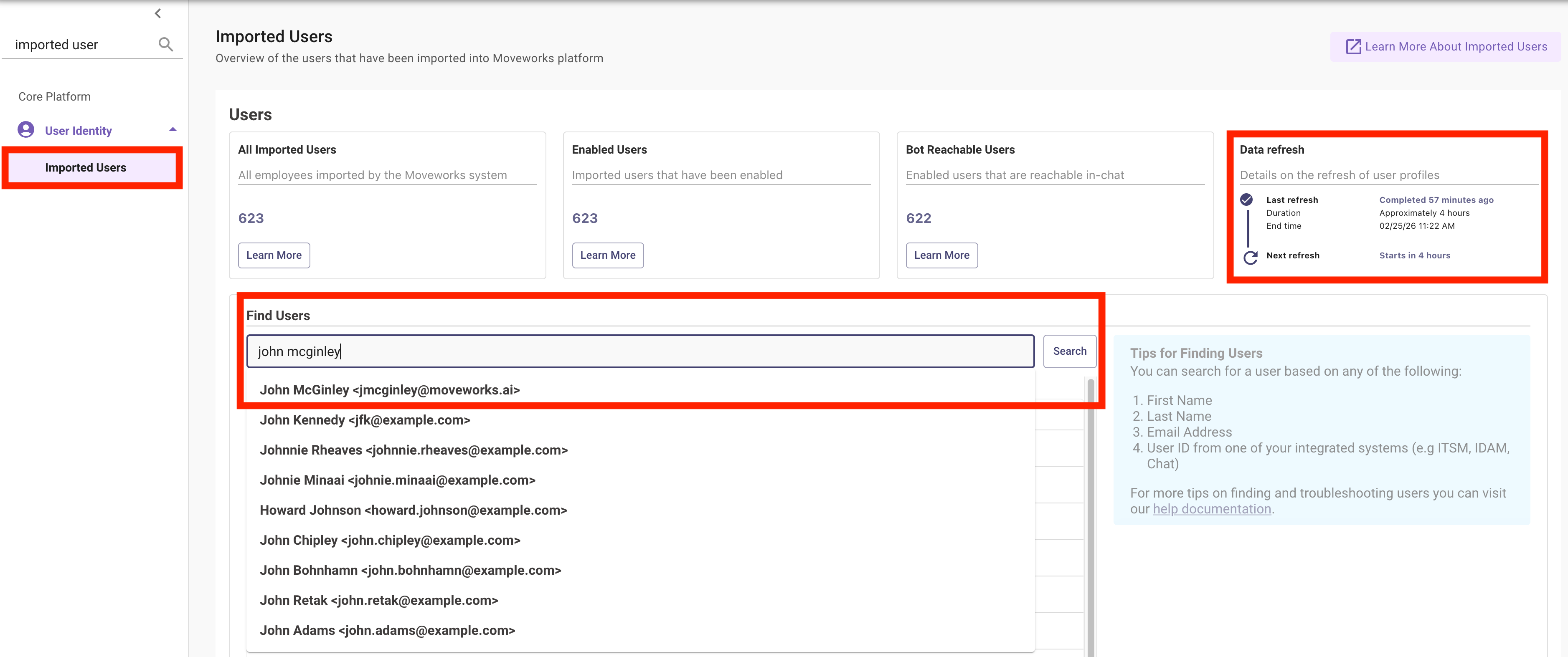

   1. Check the Imported Users page, and confirm that:
      1. You are able to find yourself in the user roster
      2. The Enabled Users & Bot Reachable Users is greater than 0
      3. You see when the ingestion cycle completed and when it is next scheduled to run



🪞 3: Reflecting on This Configuration

Through this guide, you’ve learned the following:

• How to configure Identity Sources within Moveworks
• How to configure specific fields for Moveworks to ingest
• How to leverage processors for resolving fields like password_expiry, user managers, and timezone
• How to create the Moveworks Service Account user
• How to enable access to the Moveworks AI Assistant
• That Moveworks ingests users at a regular cadence, and you can see the currently ingested users + cadence in the Imported Users page

⚙️ 4: Configuration Details

Use the table below to fill in the required fields accurately.
